11.6 Receive WAN Interface
Table 11-11. Receive WAN Interface
PARAMETER SYMBOL MIN TYP MAX UNITS
RCLKI Frequency 52 MHz
RCLKI Period t1 19.2 ns
RCLKI Low Time t2 8 ns
RCLKI High Time t3 8 ns
RSER Setup Time t4 7 ns
RSYNC Setup Time t4 7 ns
RSER Hold Time t5 2 ns
RSYNC Hold Time t5 2 ns

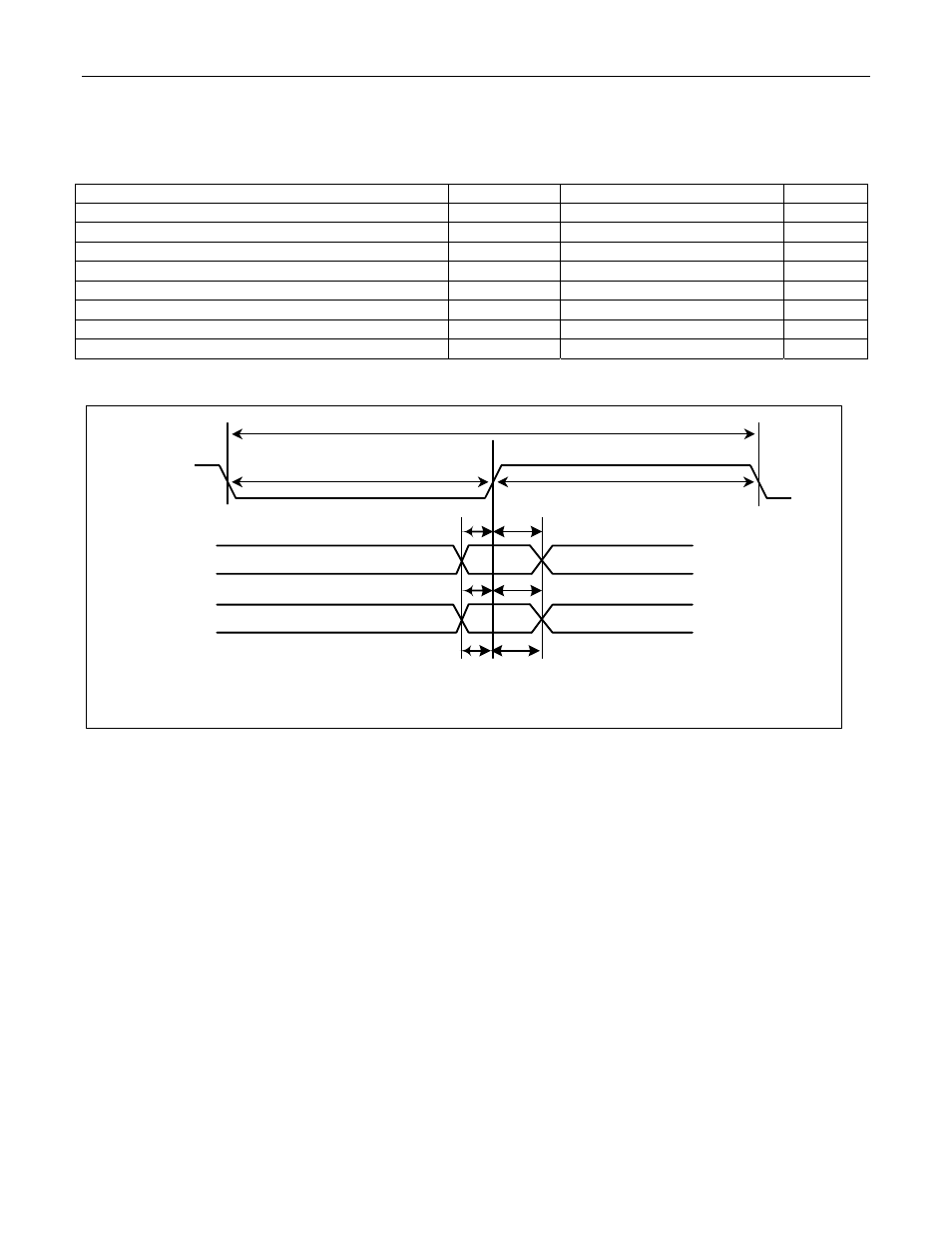

Figure 11-7. Receive WAN Timing
RCLKI
t2
t3
t1
RSER
t4 t5
t4 t5
RSYNC
t4 t5
