11.5 Transmit WAN Interface
Table 11-10. Transmit WAN Interface
PARAMETER SYMBOL MIN TYP MAX UNITS
TCLKI Frequency 52 MHz
TCLKI Period t1 19.2 ns
TCLKI Low Time t2 8 ns
TCLKI High Time t3 8 ns
TCLKI to TSER Output Delay t4 3 10 ns
TSYNC Setup Time t5 3.5 ns
TSYNC Hold Time t6 7 ns

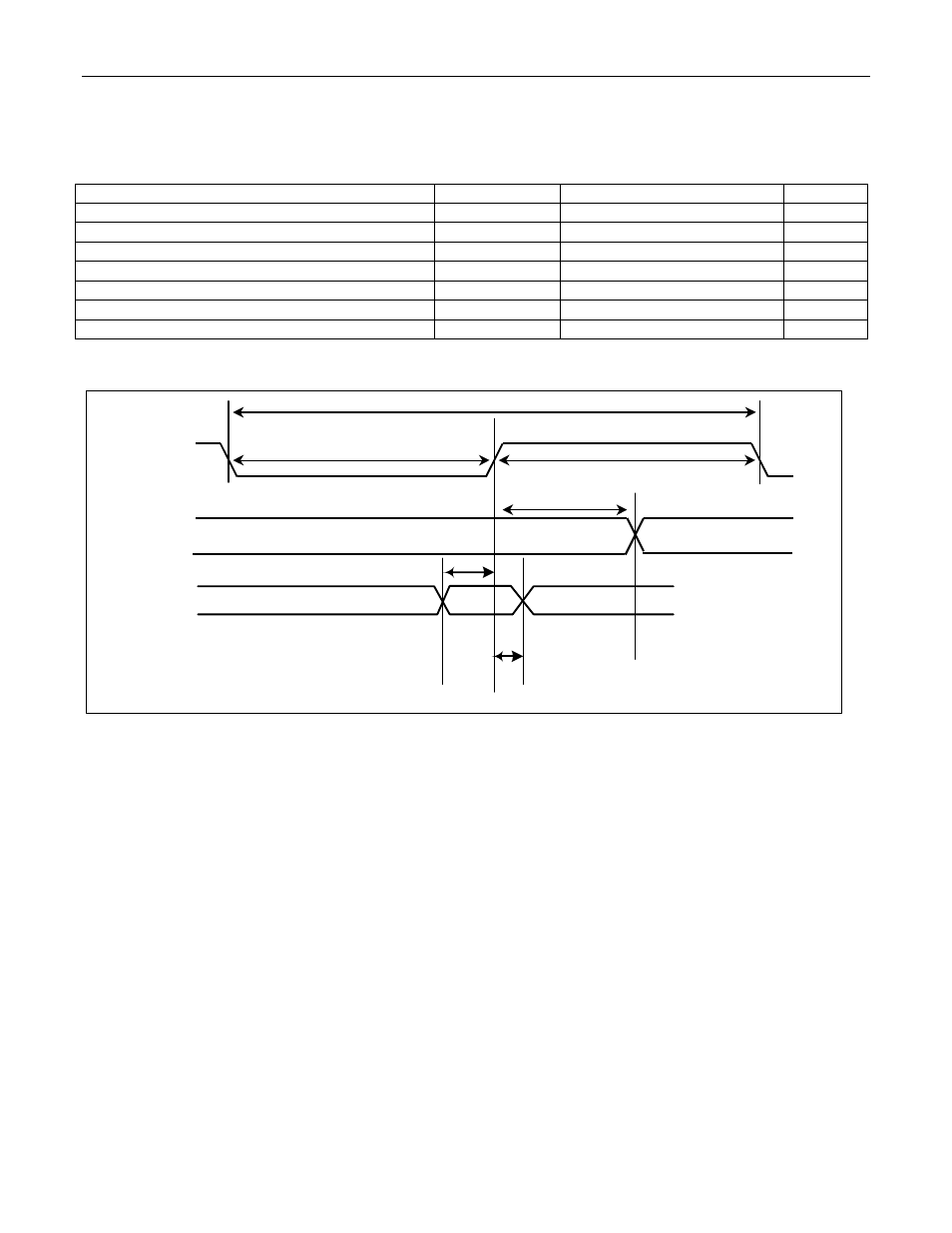

Figure 11-6. Transmit WAN Timing
TCLKI
t2
t3
t1
TSER
t4
TSYNC
t5
t6
