Configuring RAID Arrays and Logical Drives 4-15
Version 2.0 Copyright © 2003–2006 by LSI Logic Corporation. All rights reserved.

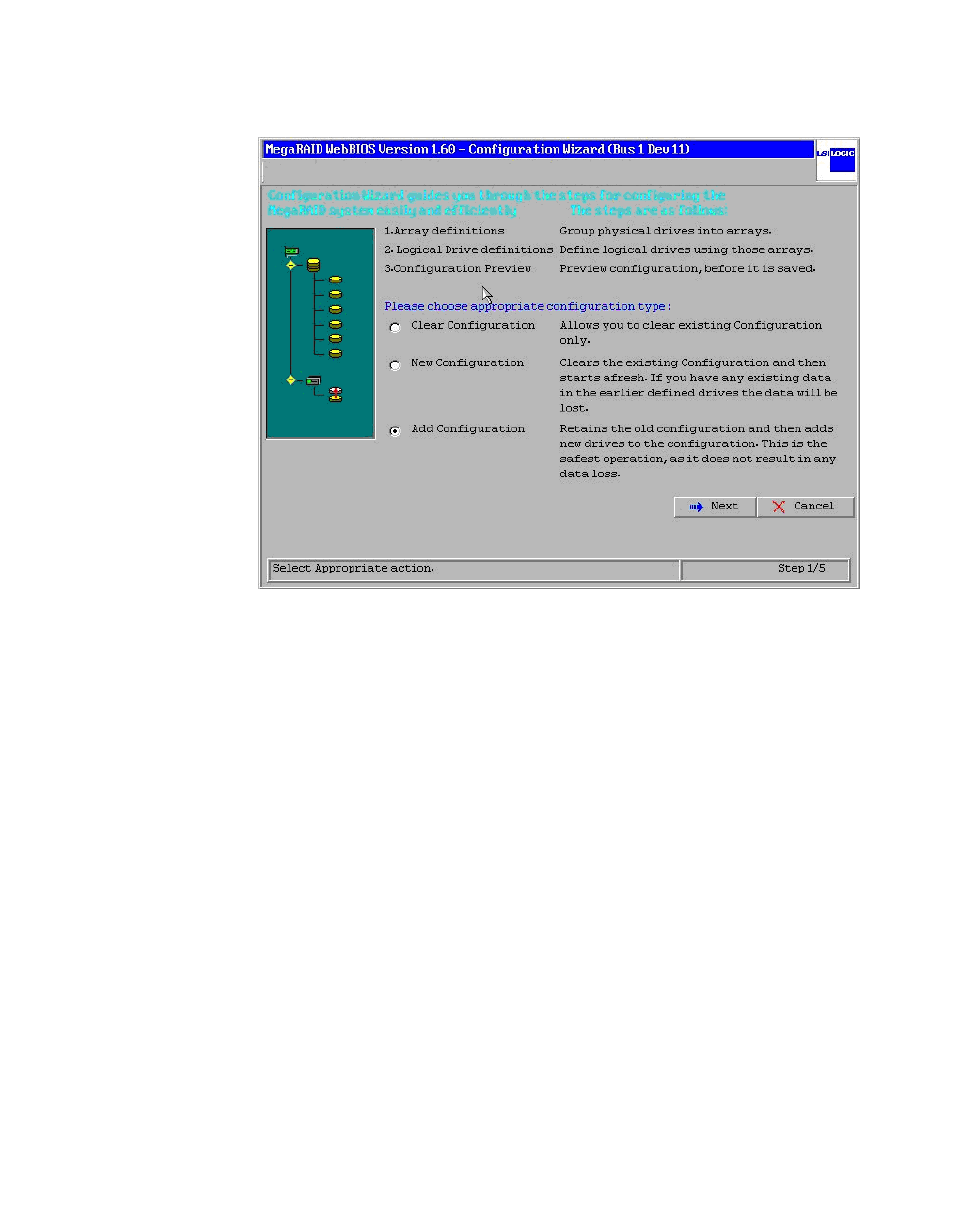

Figure 4.7 WebBIOS Configuration Wizard Screen
Step 2. Select the type of configuration and press Next.
The next screen displays the configuration methods. LSI
recommends
Configuration With Redundancy . You can
select one of the following:
•
Custom Configuration
•
Auto Configuration With Redundancy
•
Auto Configuration Without Redundancy . Auto
Step 3. Select a configuration method and press Next.
The Array Definition screen displays. Use this screen to
add ready drives to create an array.
Step 4. Hold the CTRL key while selecting ready drives on the
Physical Drives window, then click Accept Array to add the
drives to the arrays shown in the Arrays window.
If you need to undo the changes, press the Reclaim button.
