Starting the WebBIOS Configuration Utility on the Host Computer

4-3

Version 2.0

Copyright © 2003–2006 by LSI Logic Corporation. All rights reserved.

Note:

If there is a configuration mismatch between the disks and
the nonvolatile random access memory (NVRAM), the CU
displays the Select Configuration screen.

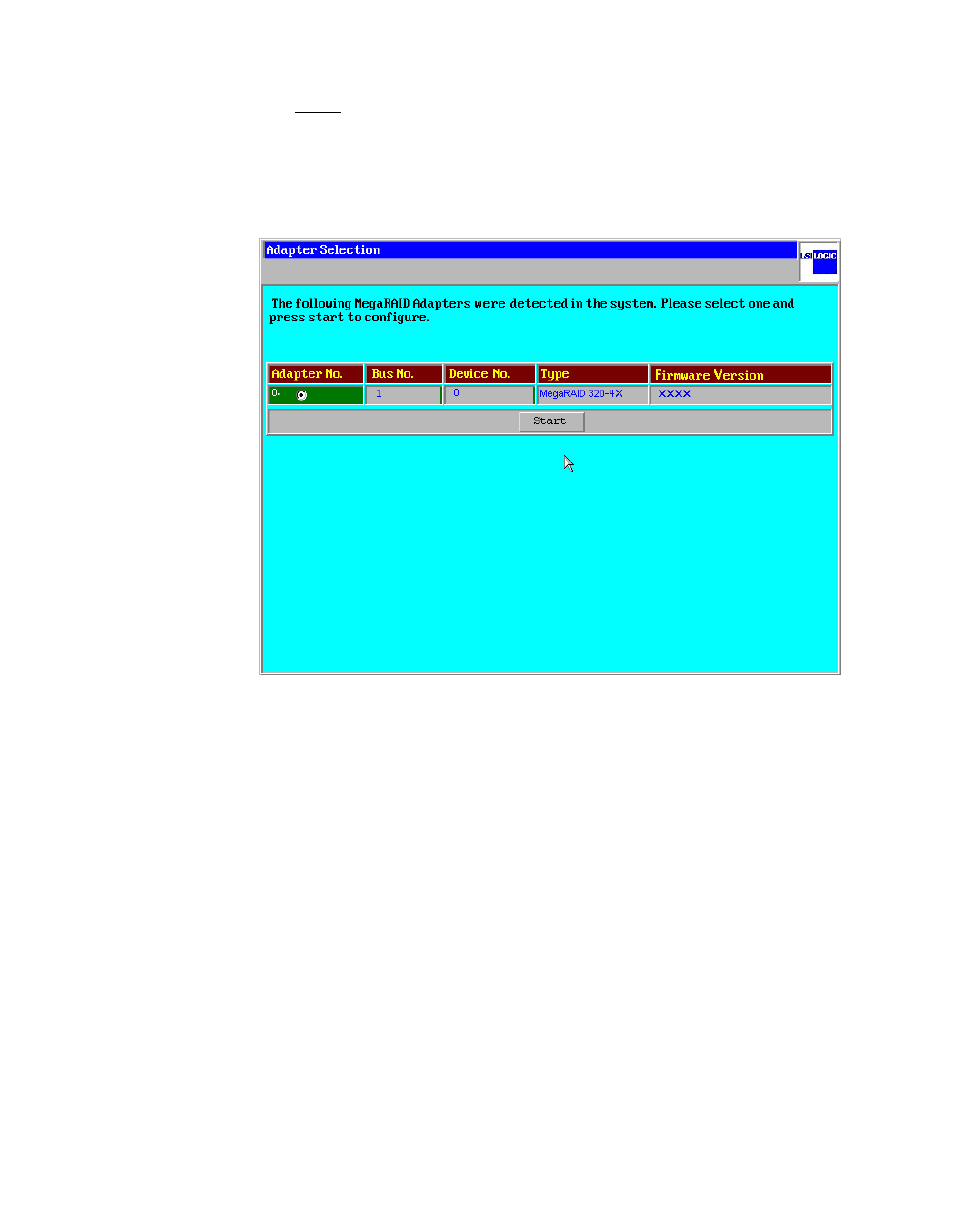

Figure 4.1

WebBIOS Adapter Selection Screen
