Screen and Option Descriptions 4-5
Version 2.0 Copyright © 2003–2006 by LSI Logic Corporation. All rights reserved.
4.4.2 Main Screen
When you press CTRL+H on the host computer, the WebBIOS CU
displays the main screen.

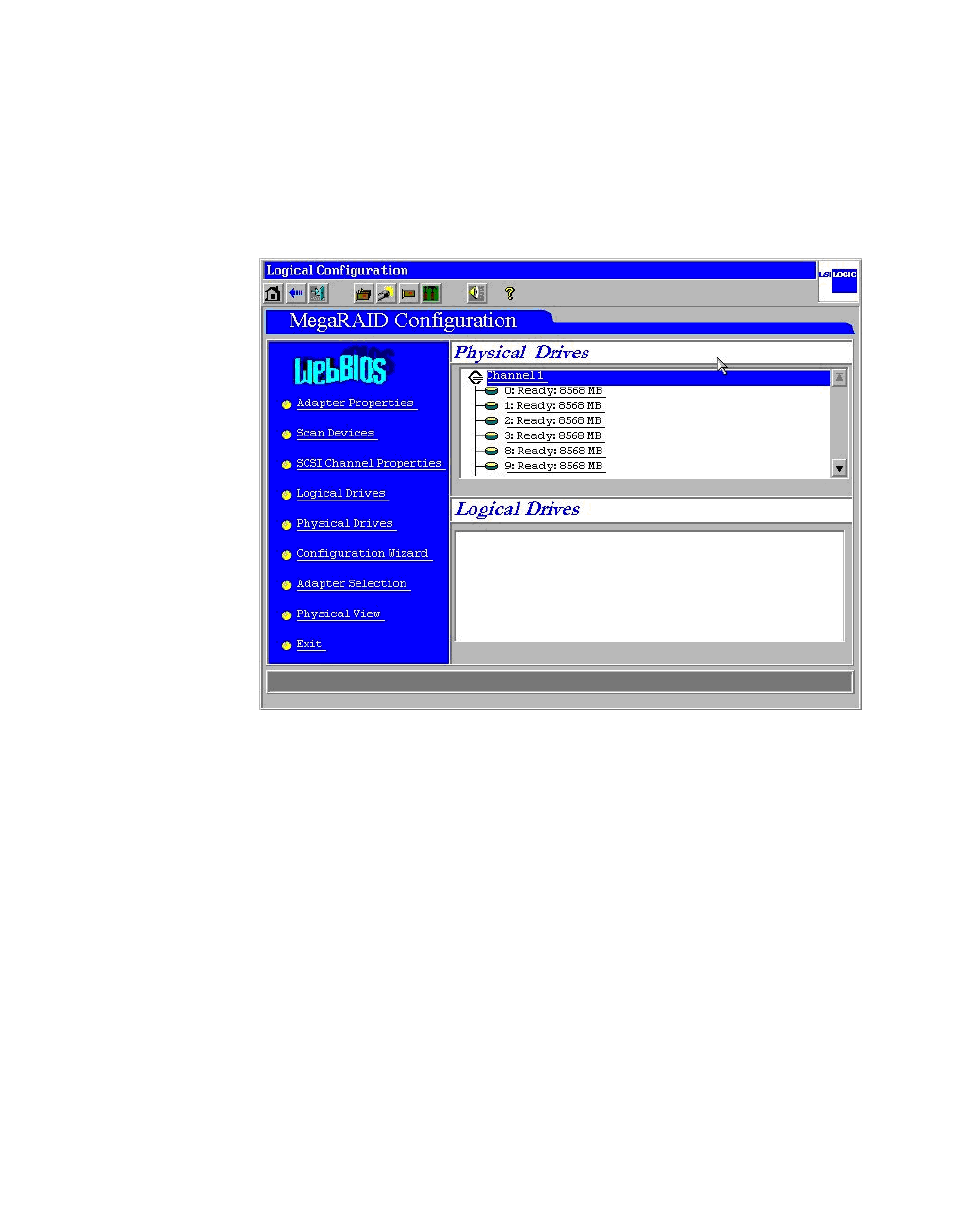

Figure 4.2 WebBIOS Main Screen
From the main screen you can scan the devices connected to the
controller, select a MegaRAID adapter if multiple adapters are in the
system, alternate between the physical devices view and the logical
devices view, and access other screens. The main screen provides the
following options:
•
Adapter Properties
•
Scan Devices
•
SCSI Channel Properties
•
Logical Drives
•
Physical Drives
•
Configuration Wizard
