Configuration Utility Menu 3-9
Version 2.0 Copyright © 2003–2006 by LSI Logic Corporation. All rights reserved.

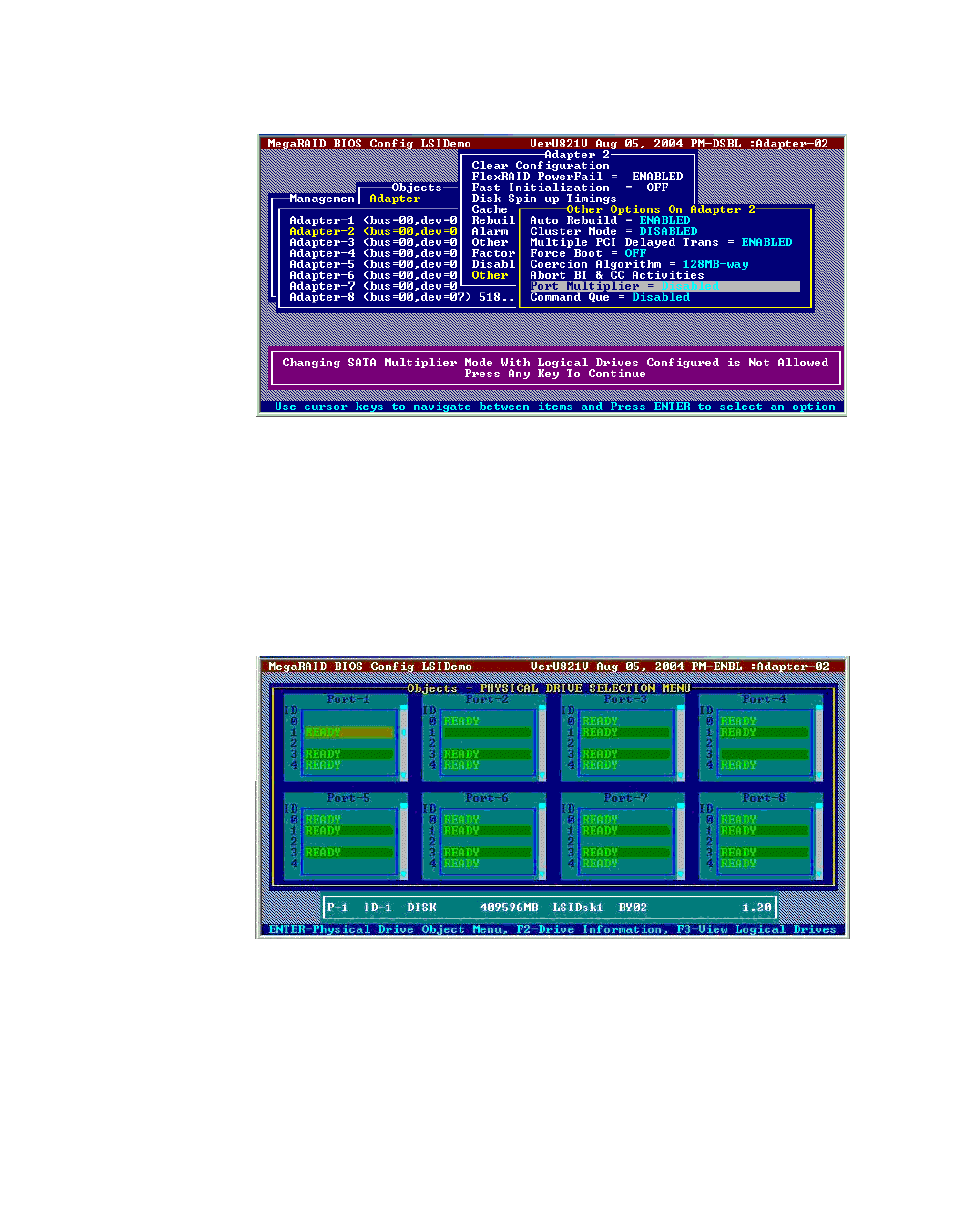

Figure 3.2 Port Multiplier Option
The BIOS Configuration Utility displays the port and physical drive
information in a matrix format. This format displays the port number and
ID numbers for the hard drives connected to each port. This format is
used for logical drive configuration, physical drive configuration, rebuilds,
and reconstructions.
Figure 3.3 displays port and drive information in
this format.
Figure 3.3 Port and Drive Information
