Chapter 1 Quick Start RIGOL
User’s Guide for DG5000 1-11
Rear Panel
The manual illustrates the rear panel of the instrument taking the dual-channel model
for example.
1.Digital Output
2.CH1 Mod/I Signal In
3.CH2 Mod/I Signal In
4.CH1 Q Signal In
5.CH2 Q Signal In
6.CH1 Sync Out
7.CH2 Sync Out
8.CH1 ExtTrig In
9.CH2 ExtTrig In
10.10MHz In
11.10MHz Out
12.LAN
13.USB Device
14.GPIB
15.USB Host
16.Lock Hole
17.Power Switch
18.Power Socket

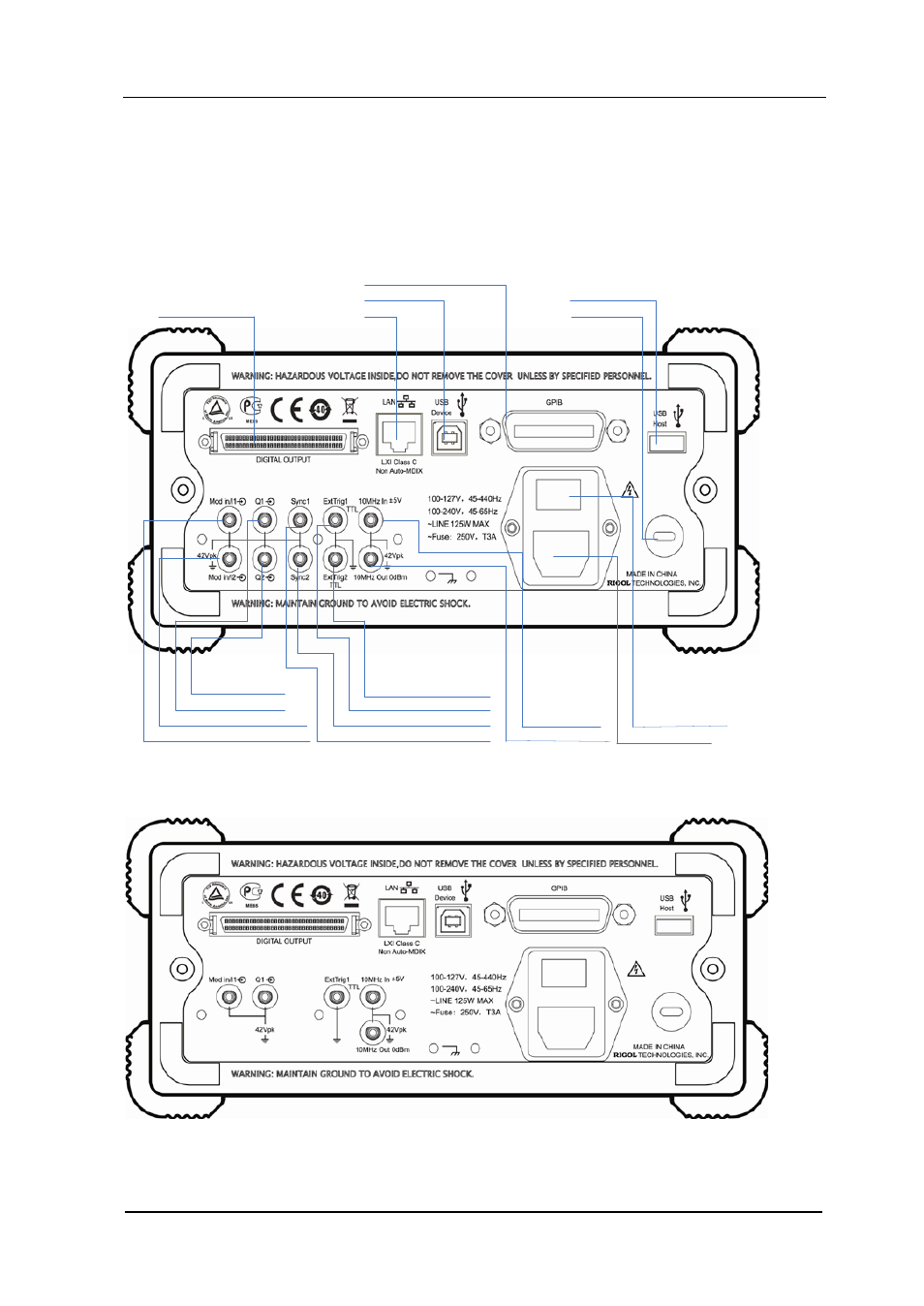

Figure 1-3 Dual-Channel Model Rear Panel Overview
Figure 1-4 Single-Channel Model Rear Panel Overview
