Chapter 2 Quick Start
Creating the Start Point
It is a good practice to start the program at a point that is well clear of all
part geometry. Move the probe to a clear position above the part. Make
certain the probe is clear of obstructions in the XY plane. Use this posi-
tion as the start and end point for the inspection in this chapter.
To record the quick start program
NOTE
Open a new part file before recording the quick start
program.
Step 1

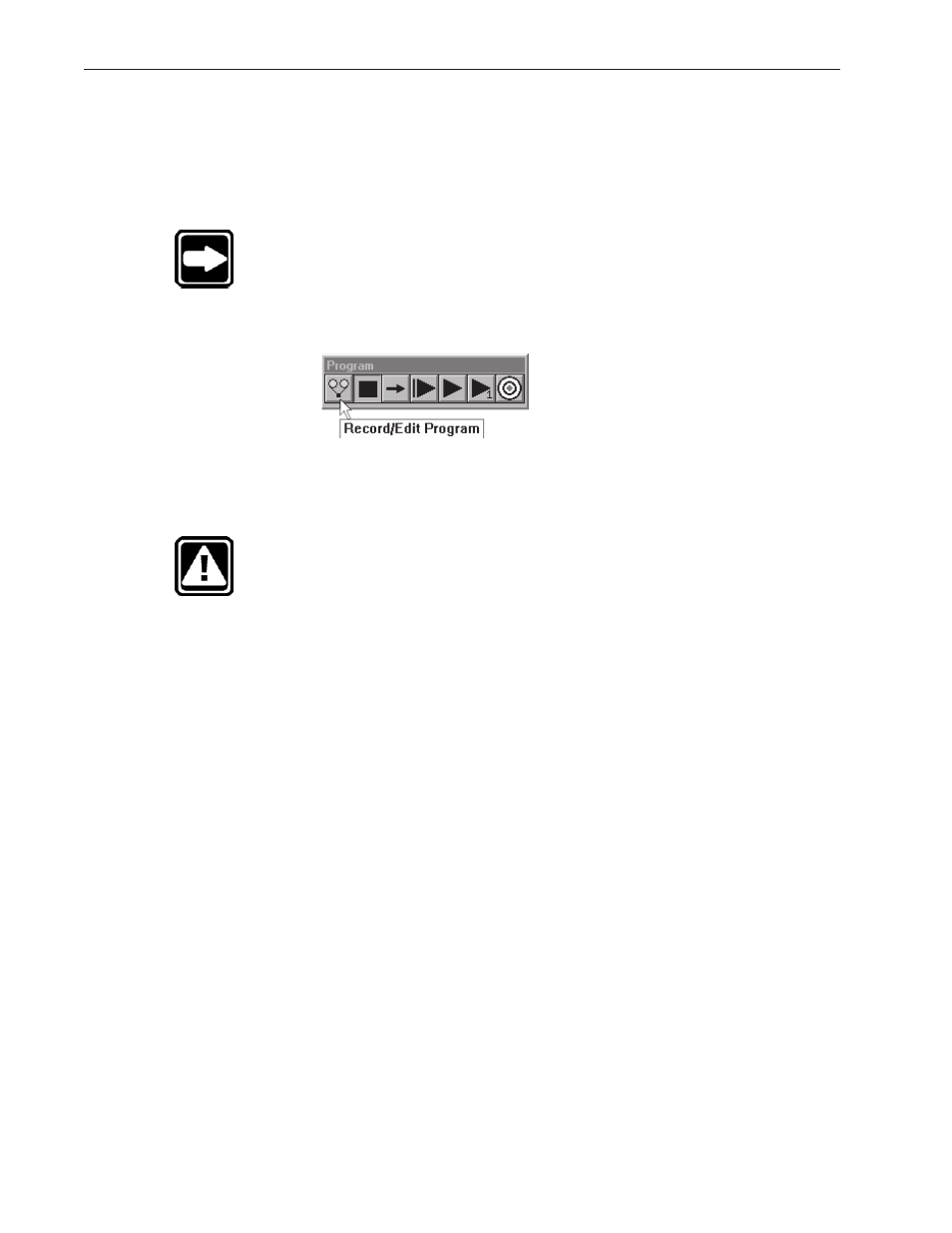

Click on the record button on the program toolbar.
The QC-5000 is now recording all actions as a part program. Use part
programs for repetitive inspection tasks. For example, if you need to
inspect 100 identical parts create a program while inspecting the first
part. Run the program to inspect the remaining 99 parts.
CAUTION
Unintentional probe collisions can result if the probe is not
well clear of the part when run. Begin and end programs
at points well clear of any obstruction.
