Chapter 4 Programming
4-32

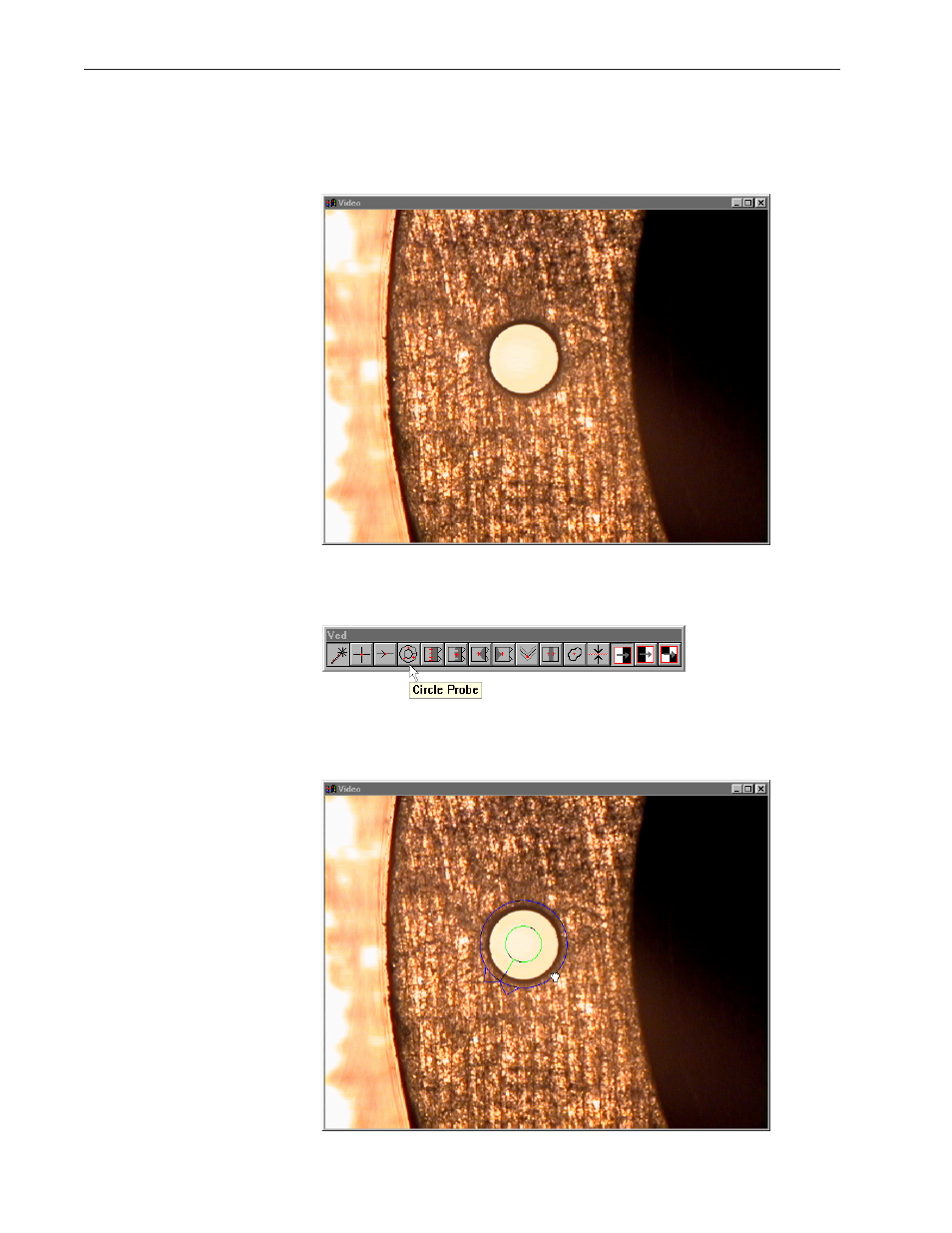

To measure a circle
Step 1
Position circle 2 in the FOV (field of view) as shown.
Step 2
Click the circle tool button on the VED toolbar.
Step 3
Use the hand cursor to re-size the circle tool.
