Quadra-Chek ® 5000
4-73

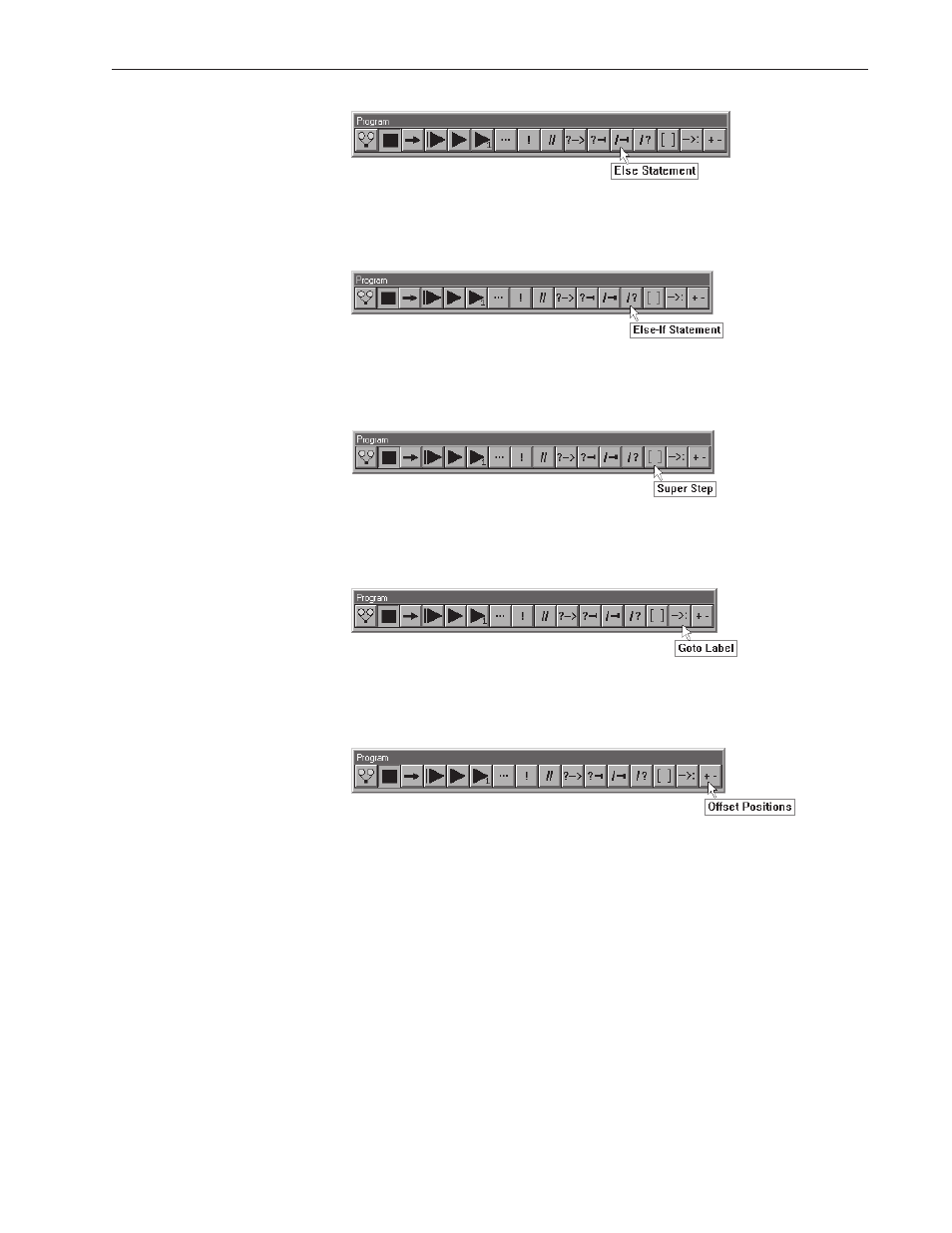

Else
Click to place an Else statement in a program, see the Conditional Statements
section for more information.
Else-If
Click to place an Else-If statement in a program, see the Conditional State-
ments section for more information.
Super Step
Click to group a selection of steps into a collapsible group (SuperStep). This
organizes and shortens the display of large programs in the Program window.
Goto Label
Click to create a Goto Label for use with an If- Goto conditional statement.
The Goto Label is the action carried out if the test condition is true.
Offset Positions
Click to manually enter a coordinate that will offset the current coordinate.
This feature is useful for inspecting multiple parts mounted on a fixture.
