Probe rack orientation
The four orientations accepted by the QC-5000 are as shown.

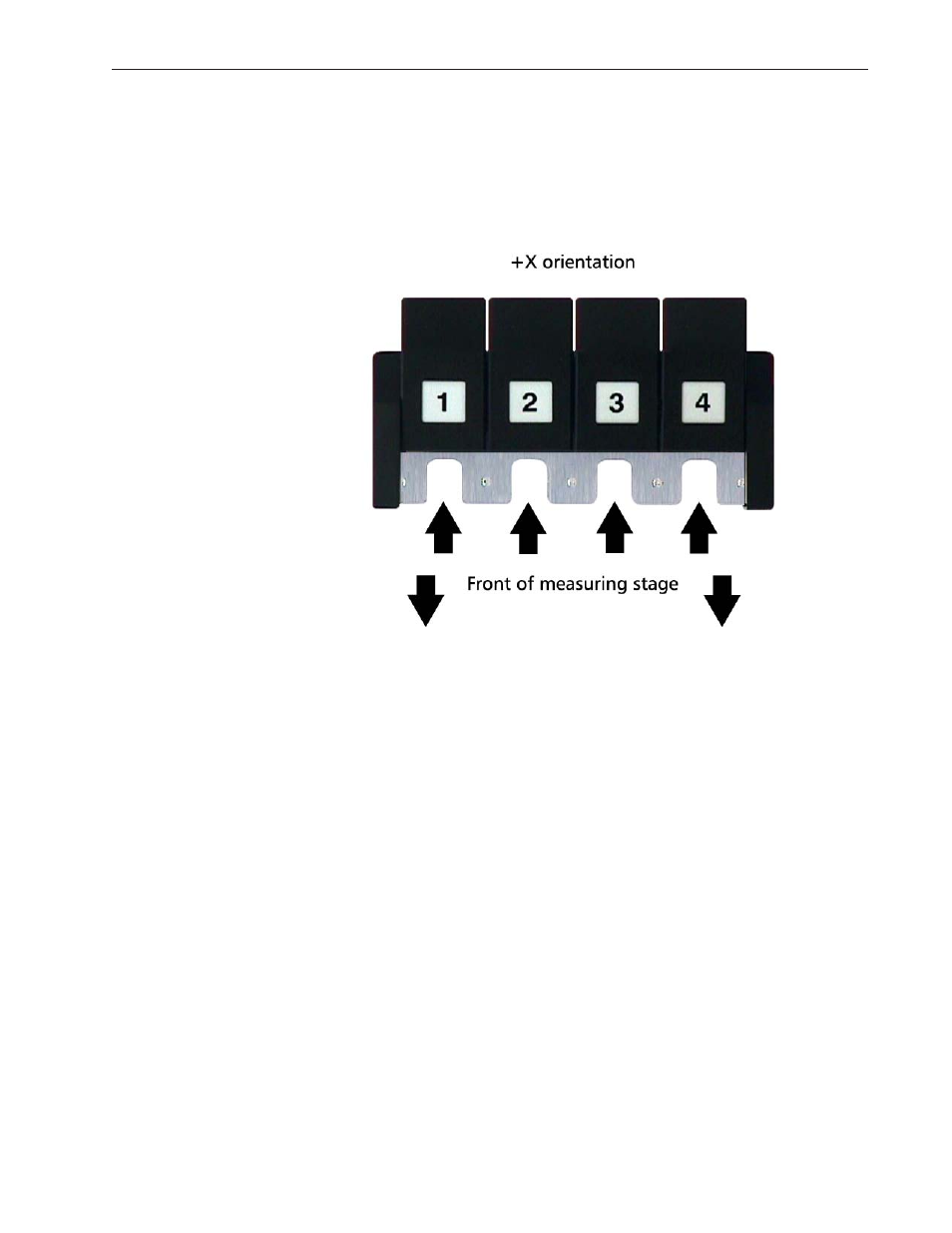

+X Orientation
Along the back edge of the table with the docking side of the rack facing in the
+X direction (see below).
