Quadra-Chek ® 5000
4-11

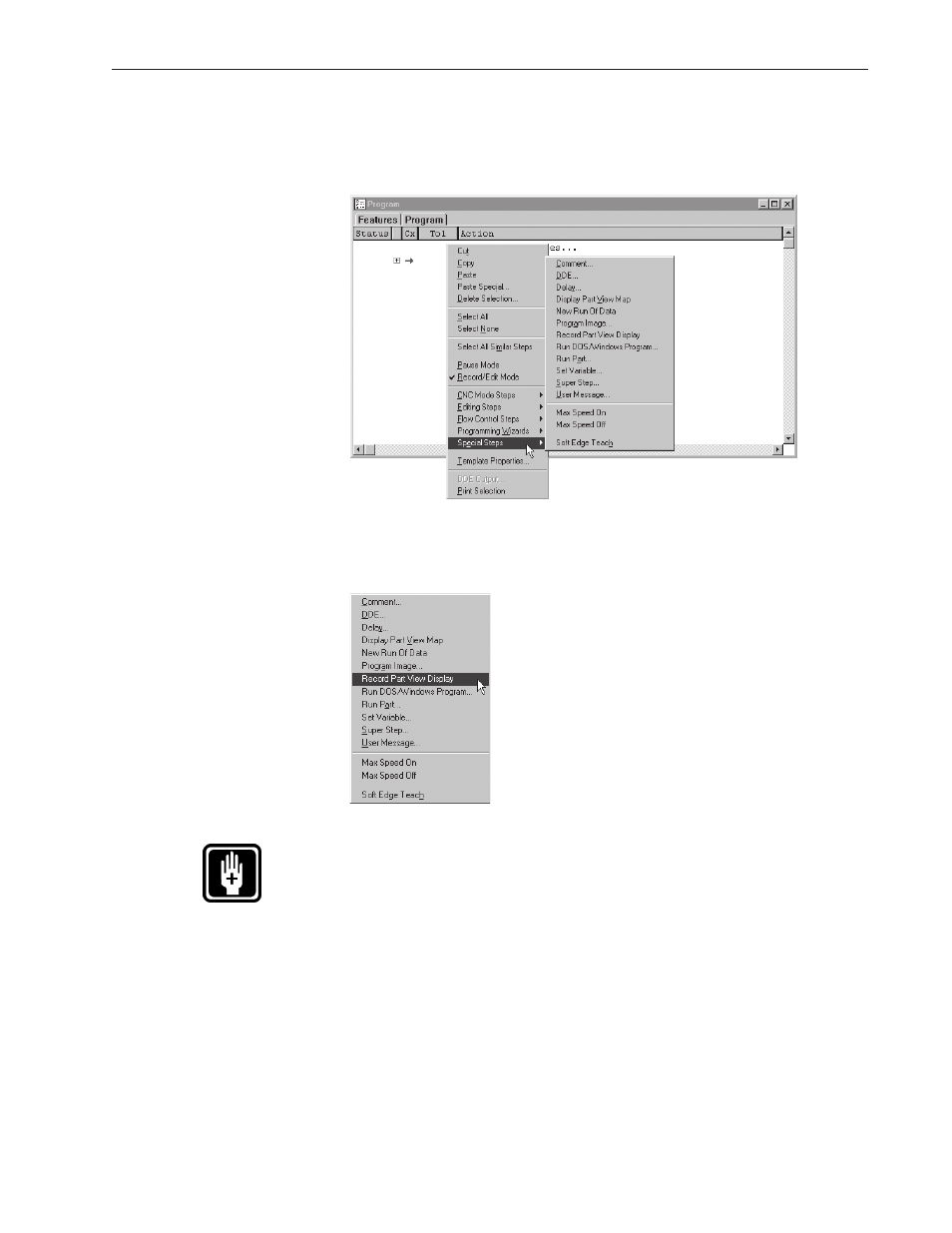

To record the part view window display
Step 1
Right-click on the program template and select special steps as shown.
Step 2
Select record part view display.
CAUTION
Use clearance moves to ensure the probe does not collide with
the part or other obstructions on the measuring stage. For
example, to safely move the probe from point A to point D,
insert clearance moves at point B and point C. If the clearance
moves are omitted, the probe will move in a straight line from
point A to point D. The resulting collision could damage the
probe.
