Chapter 2 Quick Start
To construct an angle
Step 1

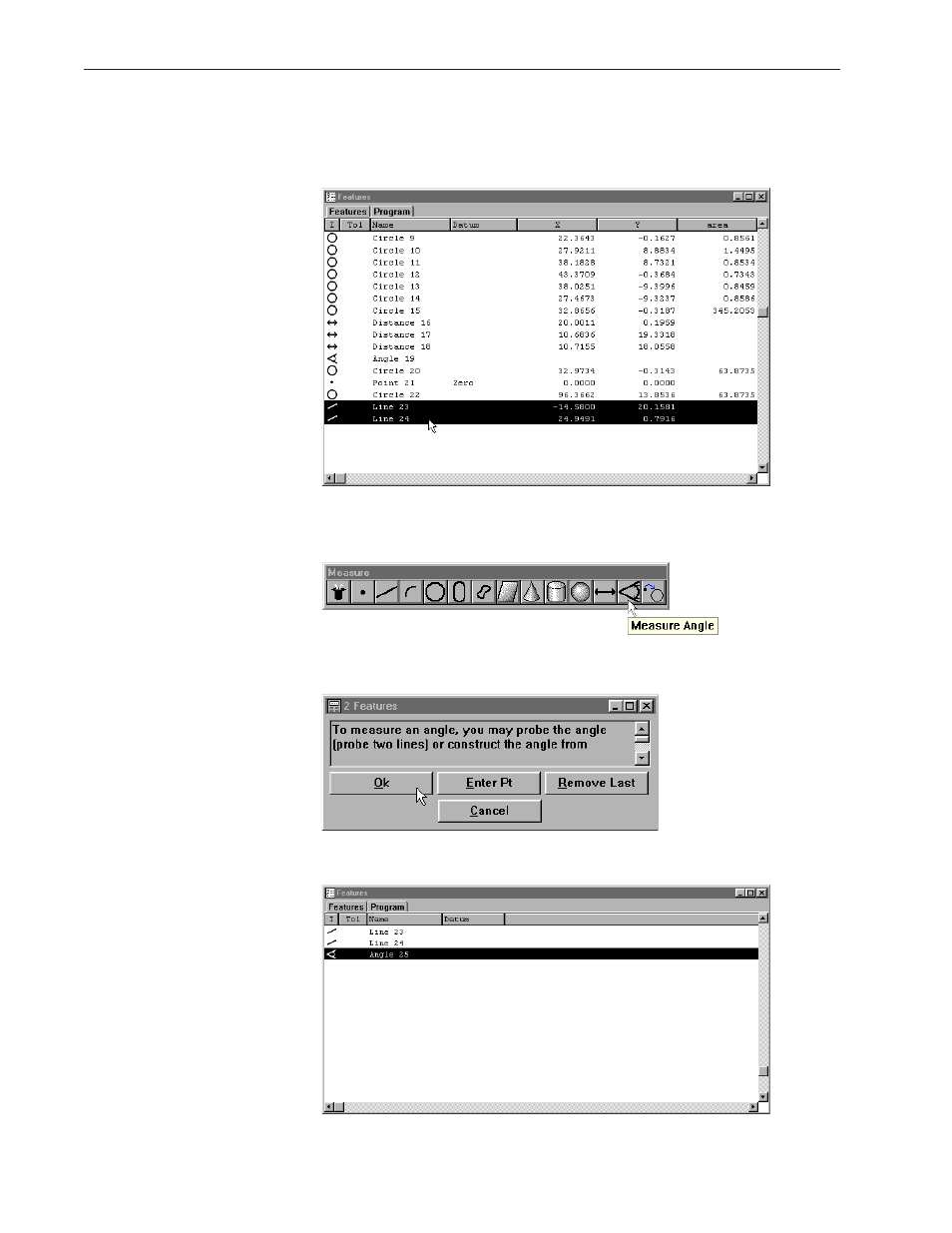

Highlight the lines 23 and 24 in the features list as shown.
Step 2
Click the angle button on the measure toolbar.
Step 3
Click OK in the dialog box.
The angle appears in the part view window.
