Quadra-Chek ® 5000
4-7
Sample Program
Automate repetitive measurement task using the QC-5000 programming fea-
ture. Use the information in this chapter to create QC-5000 part programs. A
part program is a series of measurements and associated tasks that run auto-
matically when executed. For example, a part program may contain the mea-
surement of a feature as well as the CNC moves required for the measurement.
Click the record/edit button on the program toolbar to begin a program. Next,
measure a series of geometric features. Each step is recorded into the program
including probe changes, light control, and probe movements.
Use advanced programming features such as conditional statements, arrays, and
palletization to measure complex parts with a minimal set of instructions. Im-
port CAD files to streamline and simplify programming.
Demonstrations in this chapter use the demo part included with the QC-5000
system.
Begin each part program with a new part file. This ensures that only the desired
tasks are included in the part program.

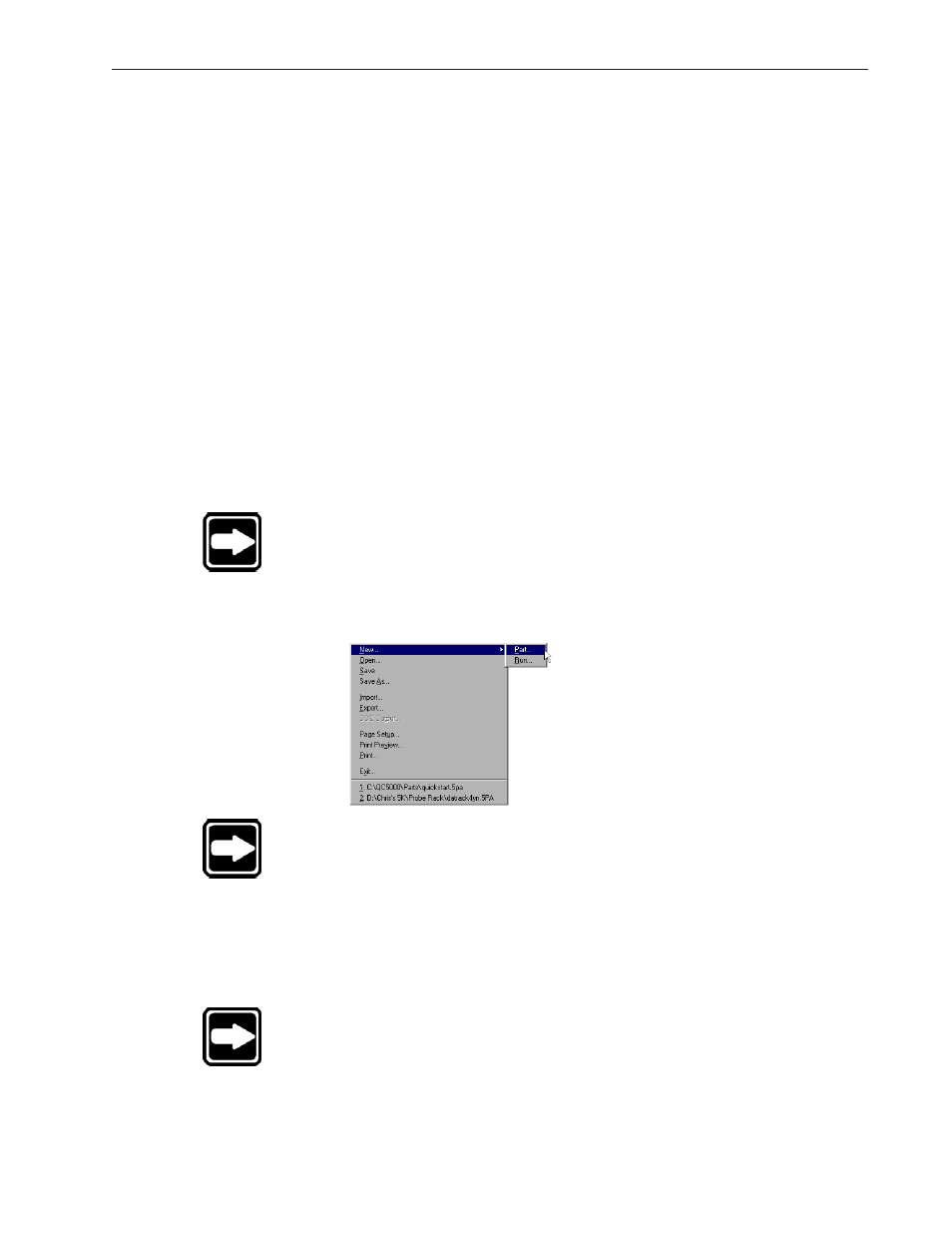

To create a new part file
NOTE
Save any files that are currently open before creating a new part
file.
Step 1
Select new part from the file menu.
NOTE
The following joystick setup options are used in this chapter:
•
Button 1 – speed toggle
•
Button 2 – axis lock
•
Button 3 – goto command
Users may find it helpful to match these settings.
Establish a reference frame to align the part on the stage and set a datum. Use
the primary plane, secondary line, and zero as shown for this demonstration.
NOTE
This demonstration uses a multi-sensor system equipped with a
touch probe and VED (video edge detection). The steps can be
completed using a single sensor system (VED or touch probe) if
necessary.
