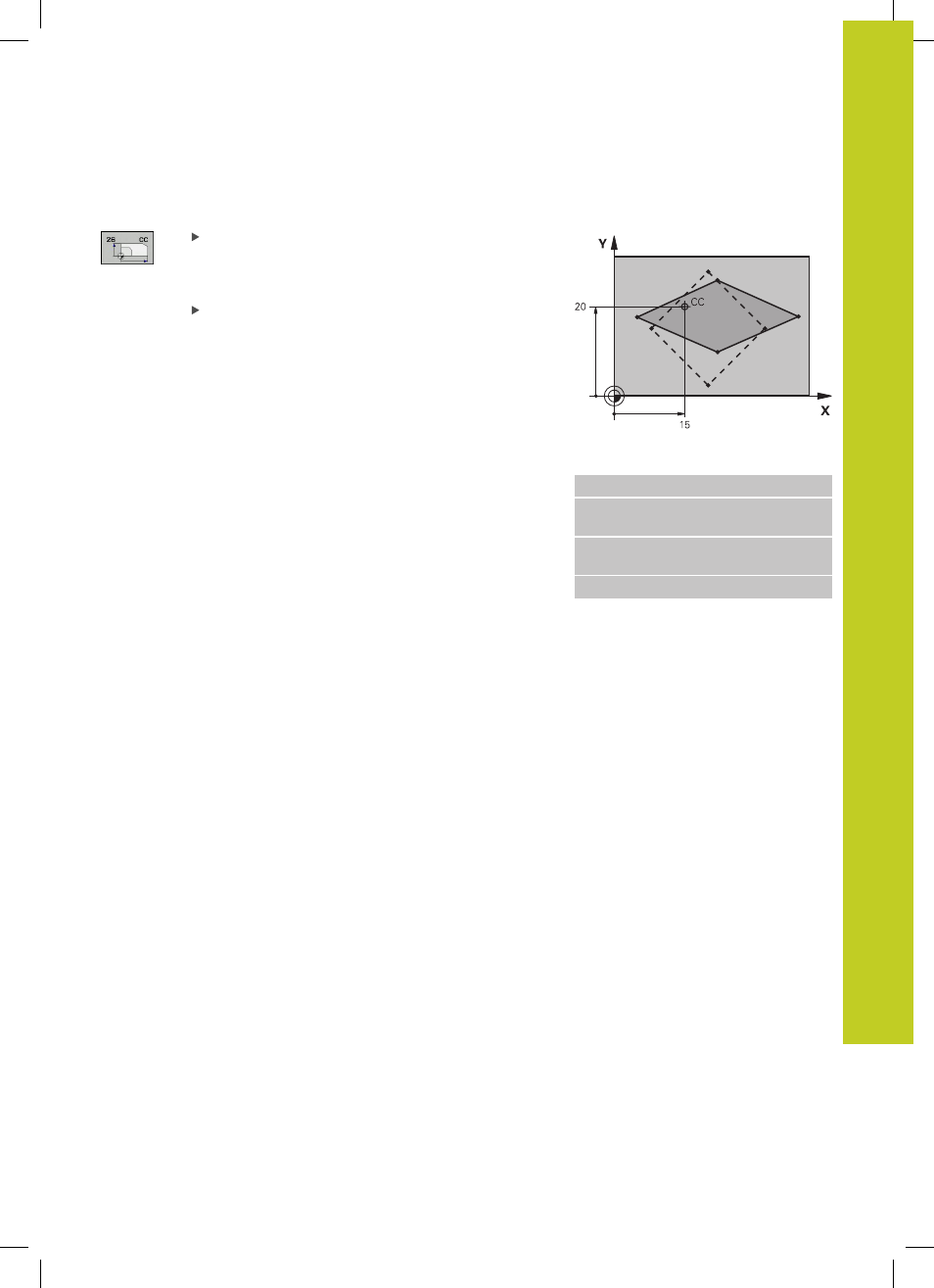

AXIS-SPECIFIC SCALING (Cycle 26)
18.7
18
TNC 128 | User's Manual HEIDENHAIN Conversational Programming | 5/2014
459
Cycle parameters
Axis and scaling factor: Select the coordinate axis/
axes by soft key and enter the factor(s) involved
in enlarging or reducing. Input range 0.000001 to
99.999999
Center coordinates: Enter the center of the axis-
specific enlargement or reduction. Input range
-99999.9999 to 99999.9999
NC blocks
25 CALL LBL 1
26 CYCL DEF 26.0 AXIS-SPECIFIC
SCALING
27 CYCL DEF 26.1 X 1.4 Y 0.6 CCX+15
CCY+20
28 CALL LBL 1
