Console Configuration
Page 74 MDE-4316C CFN Series CFN III Configuration Manual for Windows NT® · April 2007

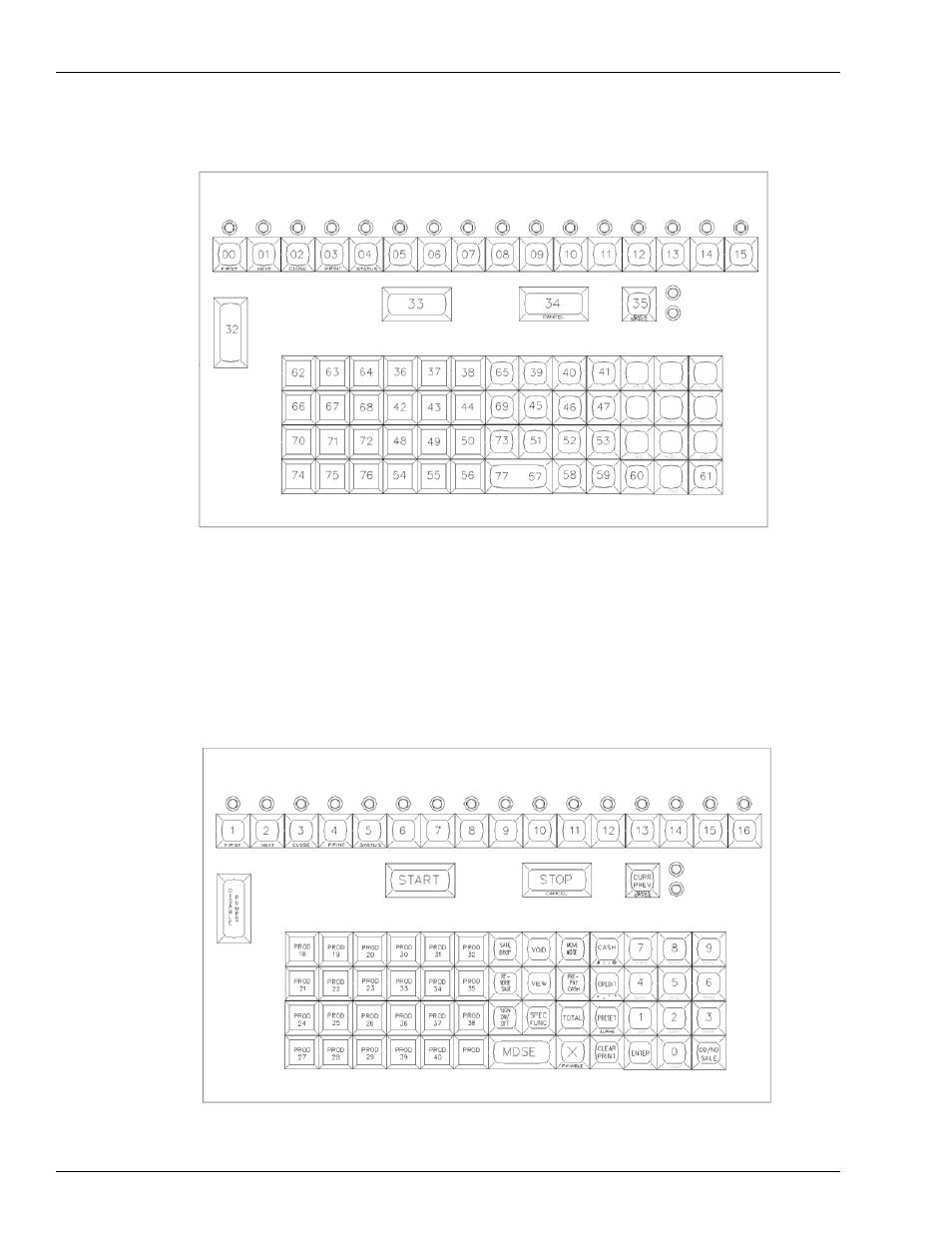

Figure 11-1: Check Point Keys - 71-key Keyboard
Figure 11-2 shows the default action assignments of the 71 keys when the keyswitch is set to
ON. The only difference in the default assignment for other keyswitch settings is that, when
the keyswitch is set to MANAGER, key 61 starts the Check Point self test and keys 00 through
15 execute the Site Controller command files CON01.CMD through CON16.CMD.
Figure 11-2: Default Action Assignments for Check Point Keys - 71-key Keyboard
