0BSpectral Analysis and Monitoring (SpectrumVue-8) Revision 3
NetVue User Guide MN-NETVUE
7–3
7.2.1 Integrated Operation for SpectrumVue-8
See Figure 7-3 Integrated SpectrumVue-8. Integrated operation shows the spectrum views in the user
templates. One SpectrumVue-8 can be shared among many templates. The views are acquired by the
SpectrumVue-8’s eight (8) input ports.

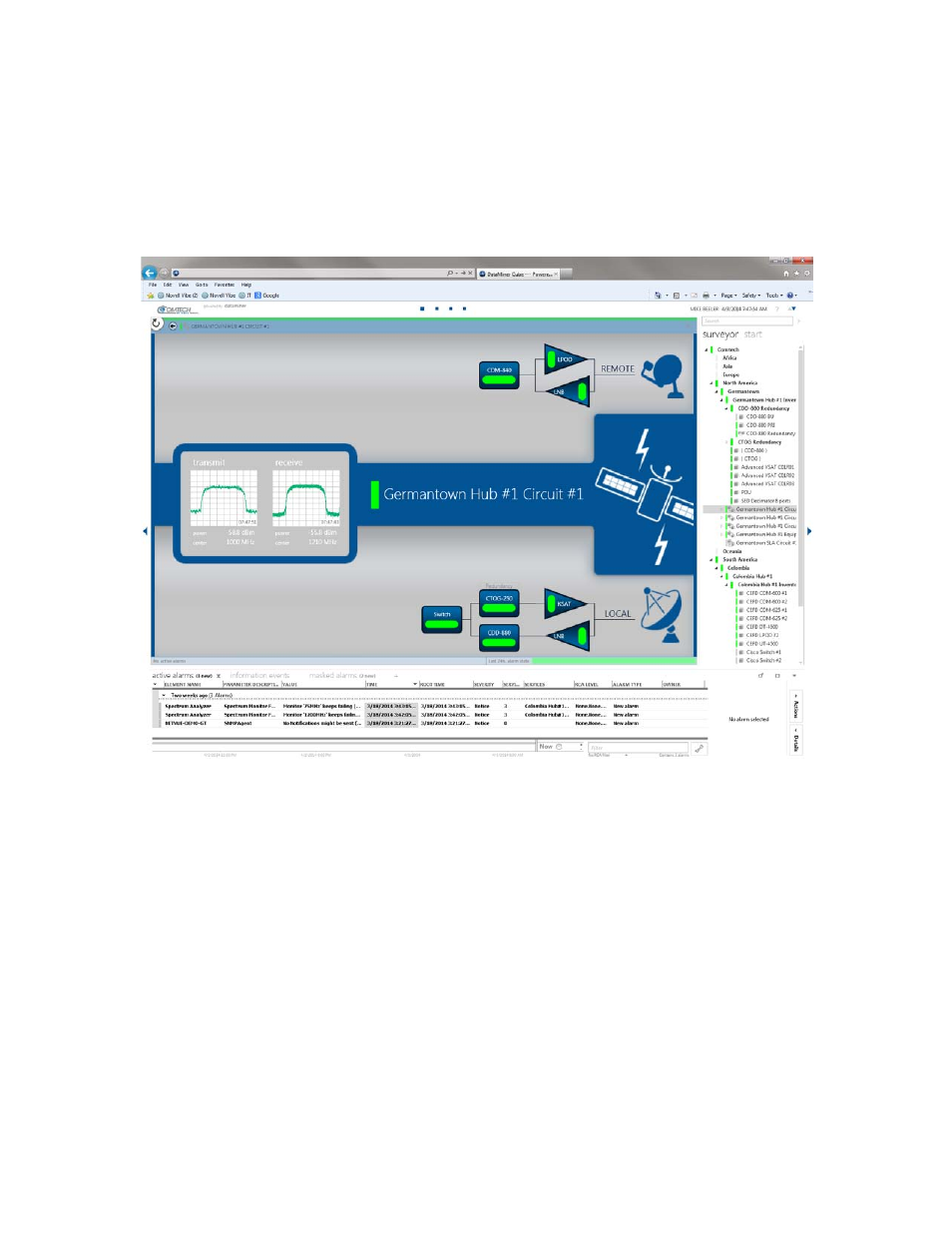

Figure 7-3 Integrated SpectrumVue-8 (Circuit view)
As described in the NetVue Provisioning Guide, use the NetVue Provisioning Tool (NVPT) to create the
spectrum views and integrate the SpectrumVue-8 carrier images into the user circuit view.
7.2.2 Single-seat Operation for SpectrumVue-8
The NetVue Cube, when combined with the SpectrumVue-8, gives you a single-seat operation point. Use
it to view the spectrum, CEFD equipment and any third-party device that is being monitored. You can
troubleshoot, diagnose or monitor the spectrum locally or remotely in the NetVue™ network.
