Chapter 4 Parameters|
4-34 Revision July 2008, EG03, SW V1.06
02 - 04 Forward/Reverse Enabled
Factory Setting: 00
Settings 00: Forward/Reverse enabled
01: Reverse disabled
02: Forward disabled
This parameter enables the direction of the AC drive.
02 - 05 2-wire/3-wire Operation Control Modes
Factory Setting: 00
Settings 00: 2-wire (#1), FWD / STOP, REV / STOP
01: 2-wire (#2), RUN/STOP, FWD/REV
02: 3-wire operation
This parameter sets the operation mode when operating by external terminals.
Please refer to 02-01.

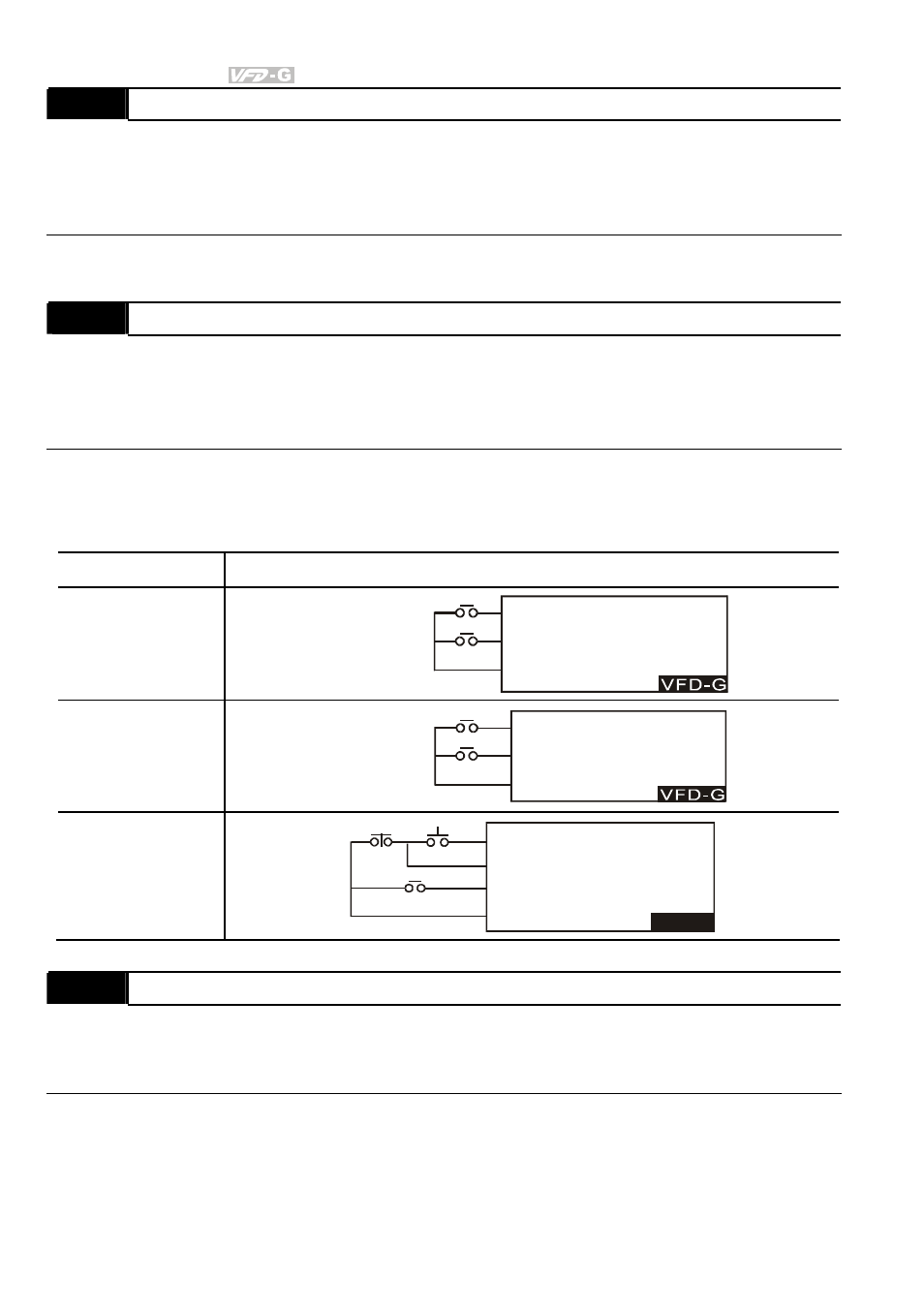

02-05 External Terminal
00 (2-wire #1)
FWD / STOP
REV / STOP
REV:
DCM
WD F
REV/STOP
FWD/STOP
:("OPEN":STOP)
("CLOSE":FWD)
("OPEN":STOP)
("CLOSE":REV)
01 (2-wire #2)
REV / FWD
RUN / STOP
REV
DCM
WD F
FWD/REV
RUN/STOP
:("OPEN":STOP)
("CLOSE":RUN)
:("OPEN":FWD)
("CLOSE":REV)
02 3-wire
REV
DCM
WD F
VFD-G
FWD/REV
STOP
("OPEN":STOP)
("OPEN":FWD)
("CLOSE":REV)
RUN
EF
("CLOSE":RUN)
02 - 06 Line Start Lockout
Factory Setting: 01
Settings 00: Disabled
01: Enabled
When enabled, the AC drive will not start when powered up with a run command applied. The
AC drive must see the run command transition from stop to run after power up. When Line
Start Lockout is disabled (also known as Auto-Start), the AC drive will start when powered-up
with run commands applied.
