Delta Electronics AC Motor Drive VFD-G User Manual
Page 40
Chapter 2 Installation and Wiring|
Revision July 2008, EG03, SW V1.06
2-17

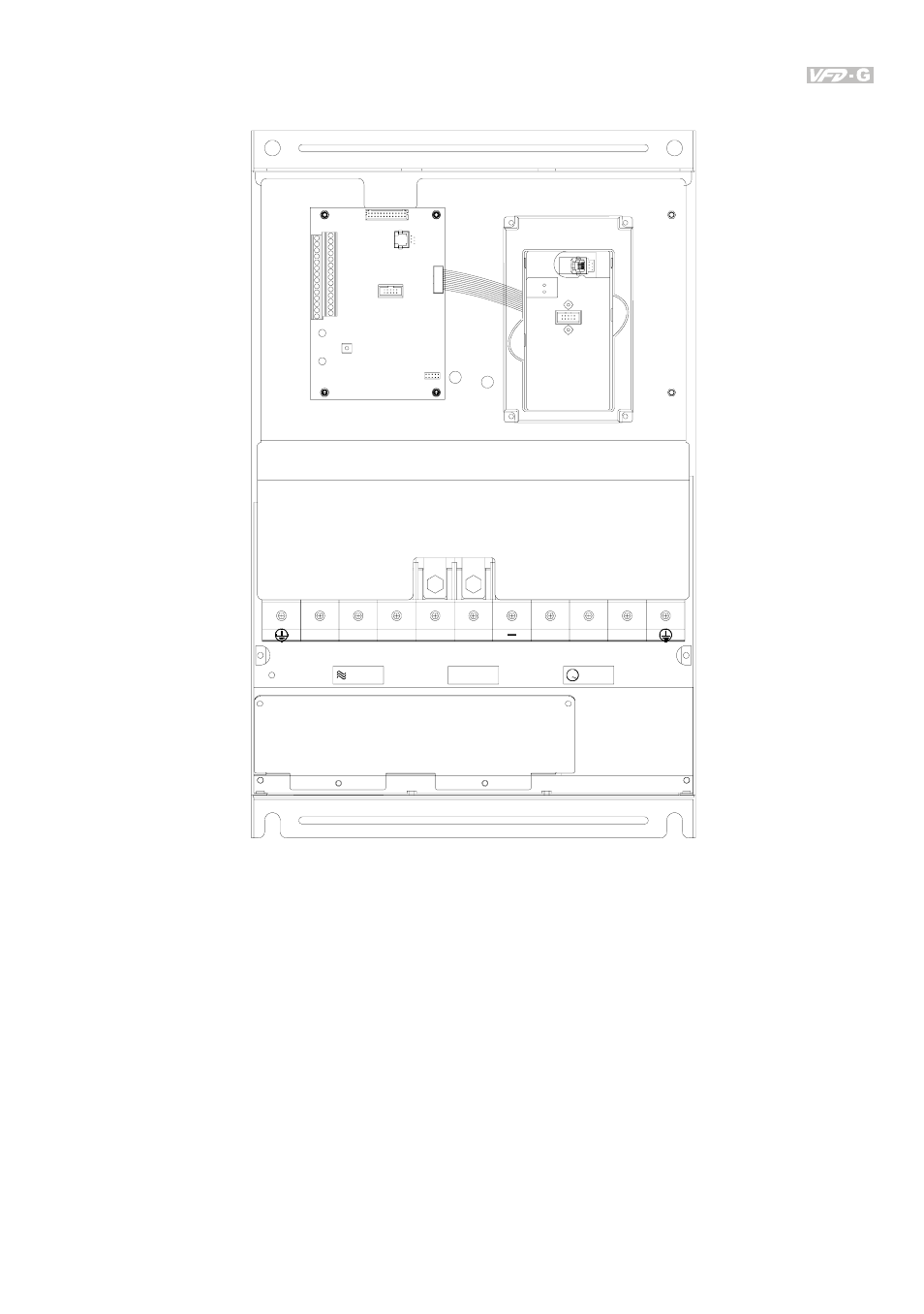

75 HP to 125 HP (VFD550F43A-G, VFD750F43A-G, VFD900F43C-G)
W/T3
S/L2
R/L1
T/L3
+2
+1
U/T1 V/T2
(173in-lbf)
Screw Torque:
200kgf-cm
POWER
IM
MOTOR
3
POWER
ALARM
CHARGE
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 200kgf-cm (173 in-lbf)
Wire: VFD550F43A-G: 1/0-4/0 AWG
VFD750F43A-G: 3/0-4/0 AWG
VFD900F43C-G: 4/0 AWG
Wire Type: Stranded copper only, 75°C
