Delta Electronics AC Motor Drive VFD-G User Manual
Page 37
Chapter 2 Installation and Wiring|
2-14
Revision July 2008, EG03, SW V1.06
2.5 Specification for main circuit terminals and control terminals

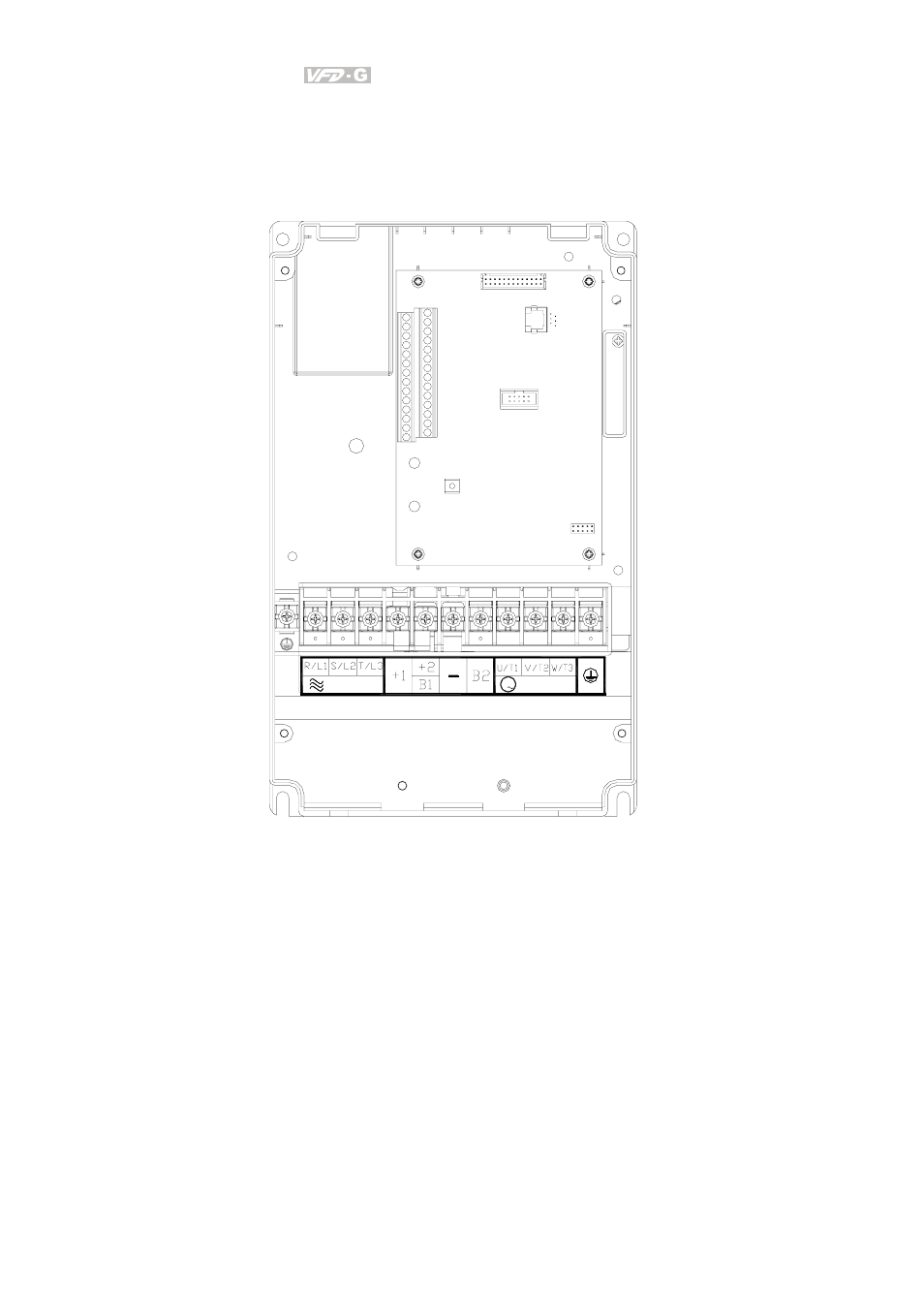

7.5 HP to 20 HP (VFD055F43B-G, VFD075F43B-G, VFD110F43A-G, VFD150F43A-G)
POWER
IM
MOTOR
3
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 30Kgf-cm (26 in-lbf)
Wire: 12-8 AWG
Wire Type: Stranded copper only, 75° C
NOTE: If wiring of the terminal utilizes the wire with a 6AWG-diameter, it is thus necessary to
use the Recognized Ring Terminal to conduct a proper wiring.
