Chapter 1 Introduction|
1-2
Revision July 2008, EG03, SW V1.06

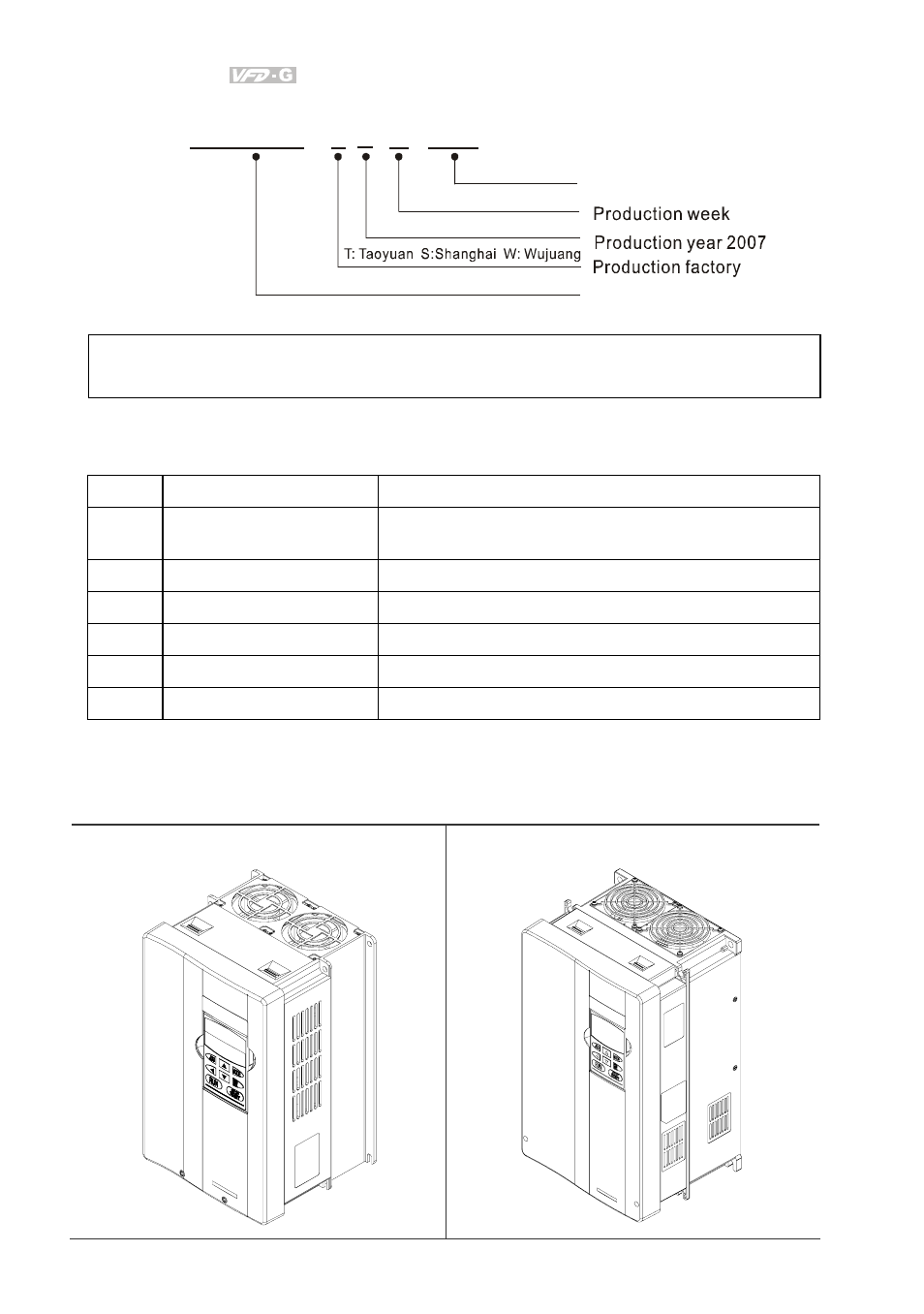

1.1.3 Series Number Explanation
075F43AG4 T 7 01 0001
460V 3-PHASE 10HP(7.5kW)
Production model
Production number
If the nameplate information does not correspond to your purchase order or if there are
any problems, please contact your distributor.
1.1.4 Drive Frames
Frame Power
Range
Models
C 7.5-20HP
(5.5-15kW)
VFD055F43B-G, VFD075F43B-G, VFD110F43A-G,
VFD150F43A-G
D 25-40HP
(18.5-30kW) VFD185F43A-G, VFD220F43A-G, VFD300F43A-G
E 50-75HP
(37-55kW)
VFD370F43A-G,VFD450F43A-G,VFD550F43A-G
E1 100-125HP
(75-90kW) VFD750F43A-G,VFD900F43C-G
G 150-215HP
(110-160kW) VFD1100F43C-G,VFD1320F43A-G,VFD1600F43A-G
H 250-300HP
(185-220kW) VFD1850F43A-G, VFD2200F43A-G
1.2 Appearances
(Refer to chapter 2.3 for exact dimensions)
7.5-20HP/5.5-15kW(Frame C)
25-40HP/18.5-30kW(Frame D)
