Revision July 2008, EG03, SW V1.06 3-1
Chapter 3 Keypad and Start Up

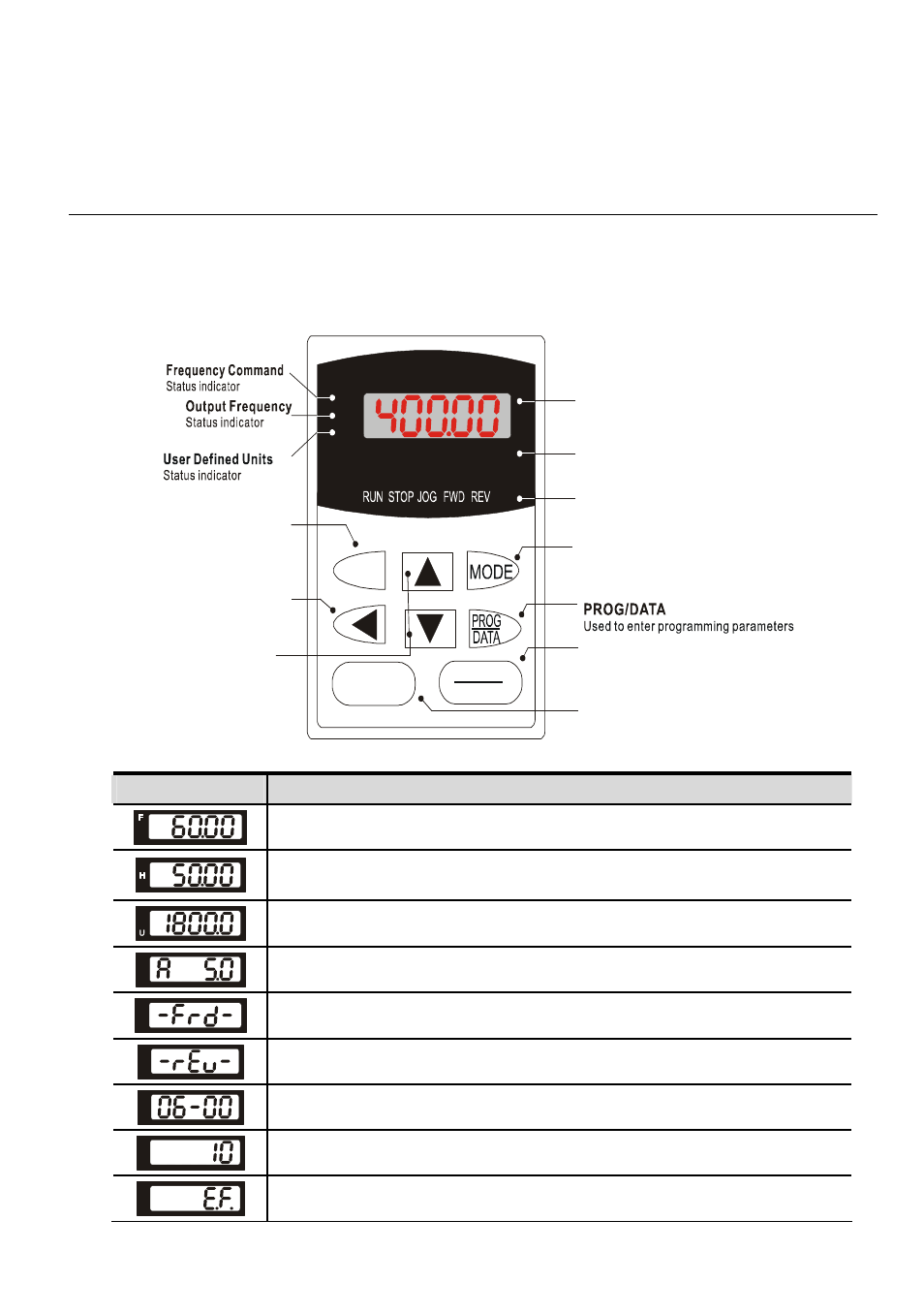

3.1 Digital Keypad VFD-PU01
3.1.1 Description of the Digital Keypad
U
F
H
VFD-PU01
JOG
LED Display
Display frequency, current, voltage
and error, etc.
Status Display
Display the driver's current status
Part Number
Left key
moves cursor to the left
RUN key
RUN
RESET
STOP
STOP/RESET
UP and DOWN Key
Sets the parameter
number and changes the
numerical data, such as
Master Frequency.
JOG
By pressing JOG key.
Initiates jog operation. MODE
C
hanges between different
display mode.
Display Message Descriptions
Display the AC drive Master Frequency.
Display the actual operation frequency present at terminals U/T1, V/T2,
and W/T3.
Display voltage (V), Current (A), power factor and feedback signal (P)
Display the output current present at terminals U/T1, V/T2, and W/T3.
Display the AC drive forward run status.
The AC drive reverse run status.
Display the specified parameter setting.
Display the actual value stored within the specified parameter.
External Fault.
