Delta Electronics AC Motor Drive VFD-G User Manual
Page 41
Chapter 2 Installation and Wiring|
2-18
Revision July 2008, EG03, SW V1.06

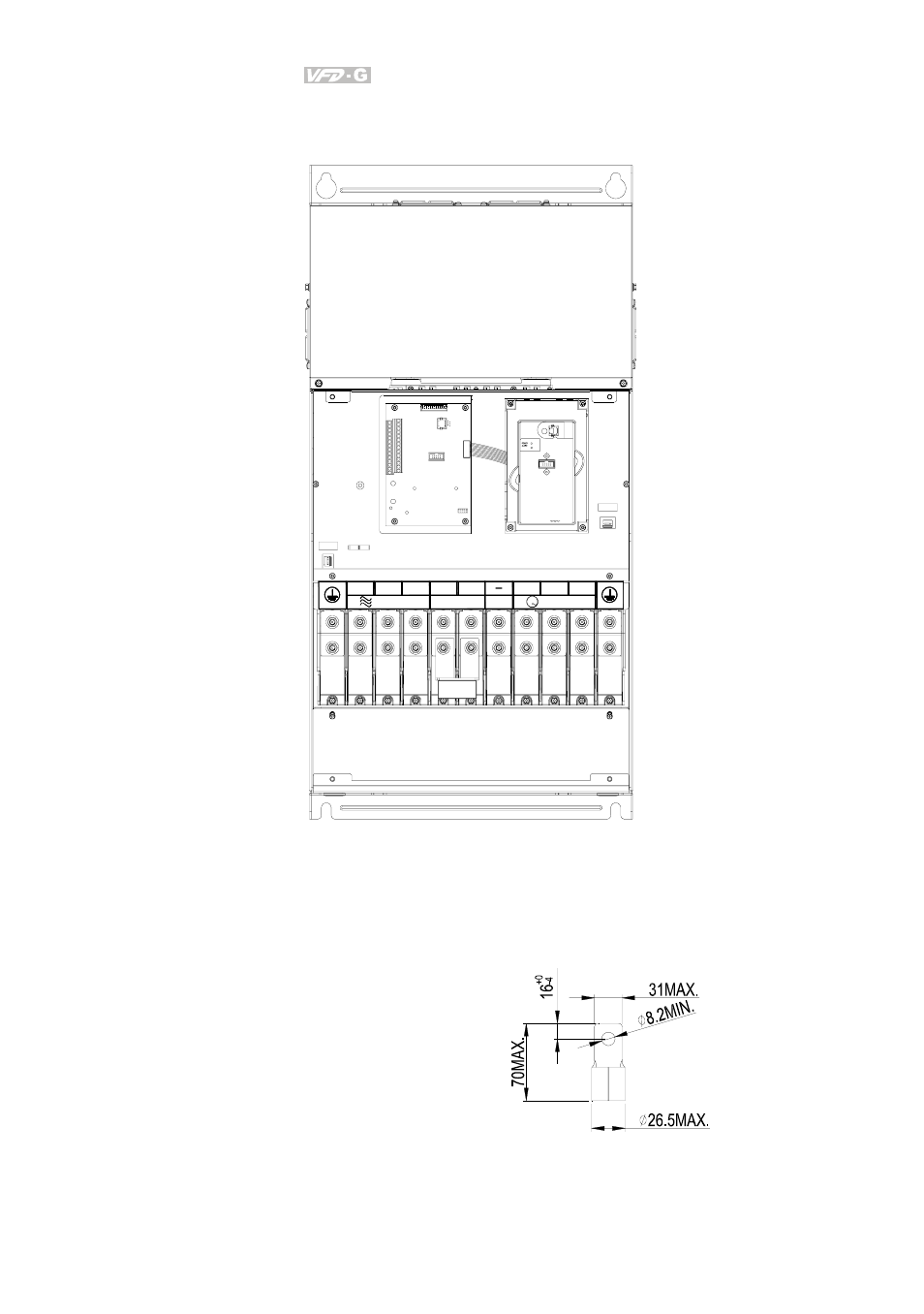

150 HP to 215 HP (VFD1100F43C-G, VFD1320F43A-G, VFD1600F43A-G)
POWER
DC(+)
IM
MOTOR
DC(-)
3
V/T2
S/L2
R/L1
+2
T/L3 +1
U/T1
W/T3
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 300kgf-cm (260 in-lbf)
Wire: 1/0 AWG*2-300 MCM*2
Wire Type: Stranded copper only, 75°C
NOTE: It needs following additional terminal when
wiring. The additional terminal dimension should
comply with the following figure.
UNIT:mm
