Appendix B Accessories|

B-2

Revision July 2008, EG03, SW V1.06

NOTE

1.

Please select the brake unit and/or brake resistor according to the table. “-“ means no Delta

product. Please use the brake unit according to the Equivalent Resistor Value. ‘’*’’ means it is

under development.

2.

If damage to the drive or other equipment is due to the fact that the brake resistors and the

brake modules in use are not provided by Delta, the warranty will be void.

3.

Take into consideration the safety of the environment when installing the brake resistors.

4.

If the minimum resistance value is to be utilized, consult local dealers for the calculation of the

power in Watt.

5.

Please select thermal relay trip contact to prevent resistor over load. Use the contact to switch

power off to the AC motor drive!

6.

When using more than 2 brake units, equivalent resistor value of parallel brake unit can’t be

less than the value in the column “Minimum Equivalent Resistor Value for Each AC Drive” (the

right-most column in the table).

7.

Please read the wiring information in the user manual of the brake unit thoroughly prior to

installation and operation.

8.

In applications with brake resistor or brake unit, Pr.06-00 (Over-voltage stall prevention) must

be disabled. And Pr.08-18 (AVR function) shall not be used.

9.

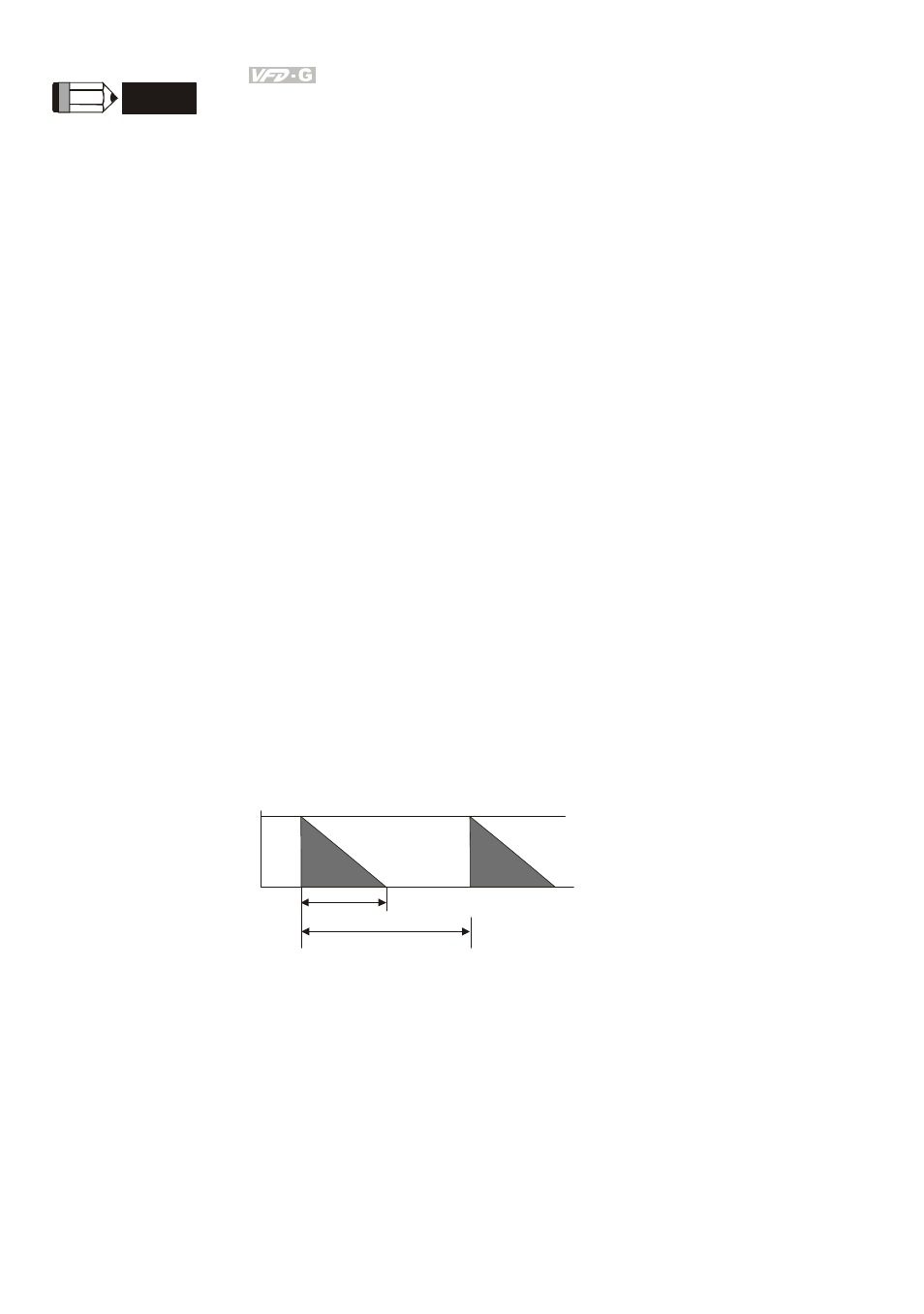

Definition for Brake Usage ED%

Explanation: The definition of the brake usage ED(%) is for assurance of enough time for the

brake unit and brake resistor to dissipate away heat generated by braking. When the brake

resistor heats up, the resistance would increase with temperature, and brake torque would

decrease accordingly. Suggest cycle time is one minute.

100%

T0

T1

Braking Time

Cycle Time

ED% = T1/T0x100(%)

10. For safety reasons, install a thermal overload relay between brake unit and brake resistor.

Together with the magnetic contactor (MC) in the mains supply circuit to the drive it offers

protection in case of any malfunctioning. The purpose of installing the thermal overload relay is

to protect the brake resistor against damage due to frequent braking or in case the brake unit is

continuously on due to unusual high input voltage. Under these circumstances the thermal

overload relay switches off the power to the drive. Never let the thermal overload relay switch

off only the brake resistor as this will cause serious damage to the AC Motor Drive.
