Chapter 2 Installation and Wiring|
2-20
Revision July 2008, EG03, SW V1.06
2.6 Wiring Explanation for Analog Input Terminal

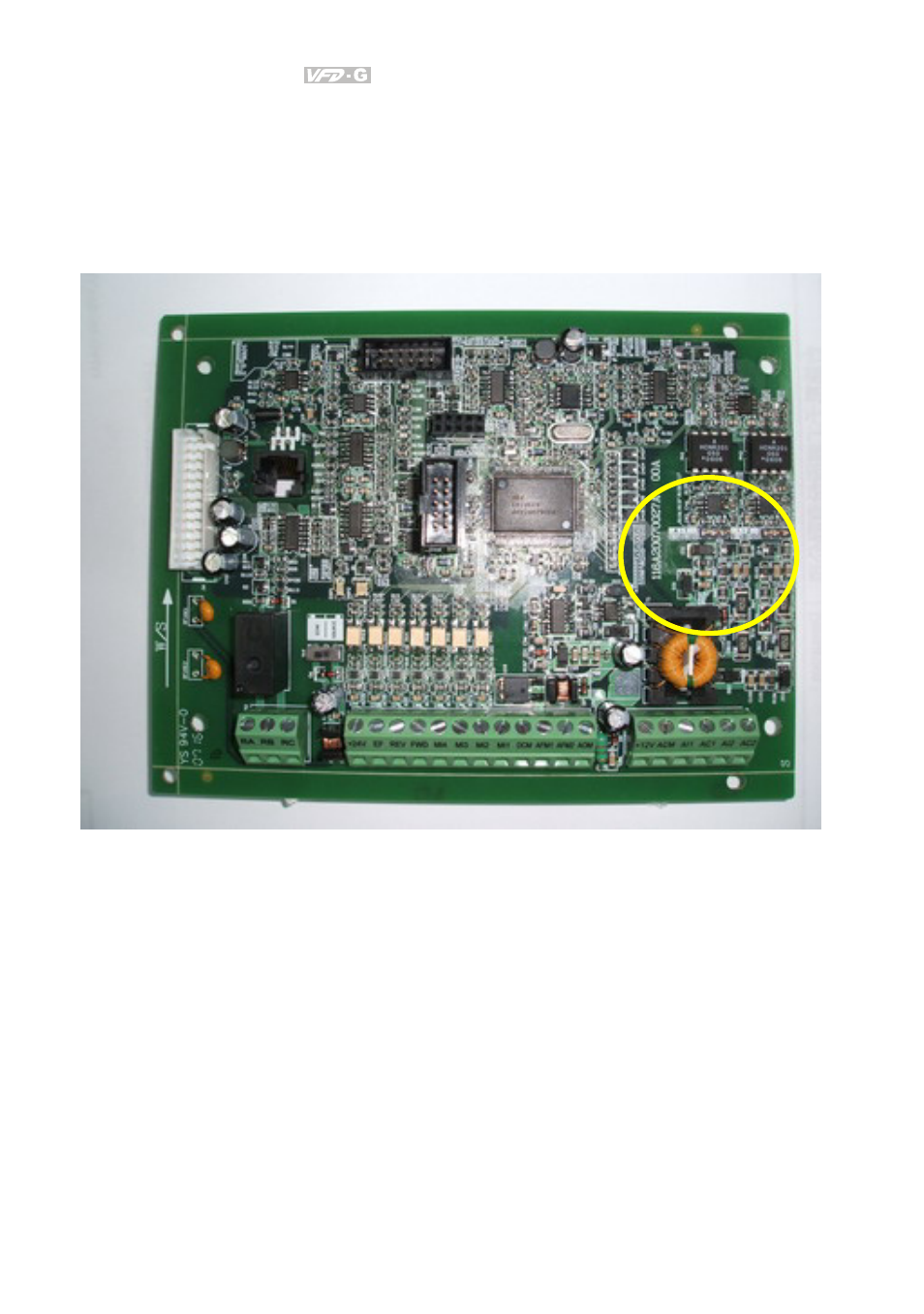

When using analog input, please pay attention to the jumper on the control board. Whether the
jumper is cut off or not is determined by analog input type (voltage or current). See the figure below
and refer to the following explanation for more details.
