Chapter 1 Introduction|
1-12 Revision July 2008, EG03, SW V1.06

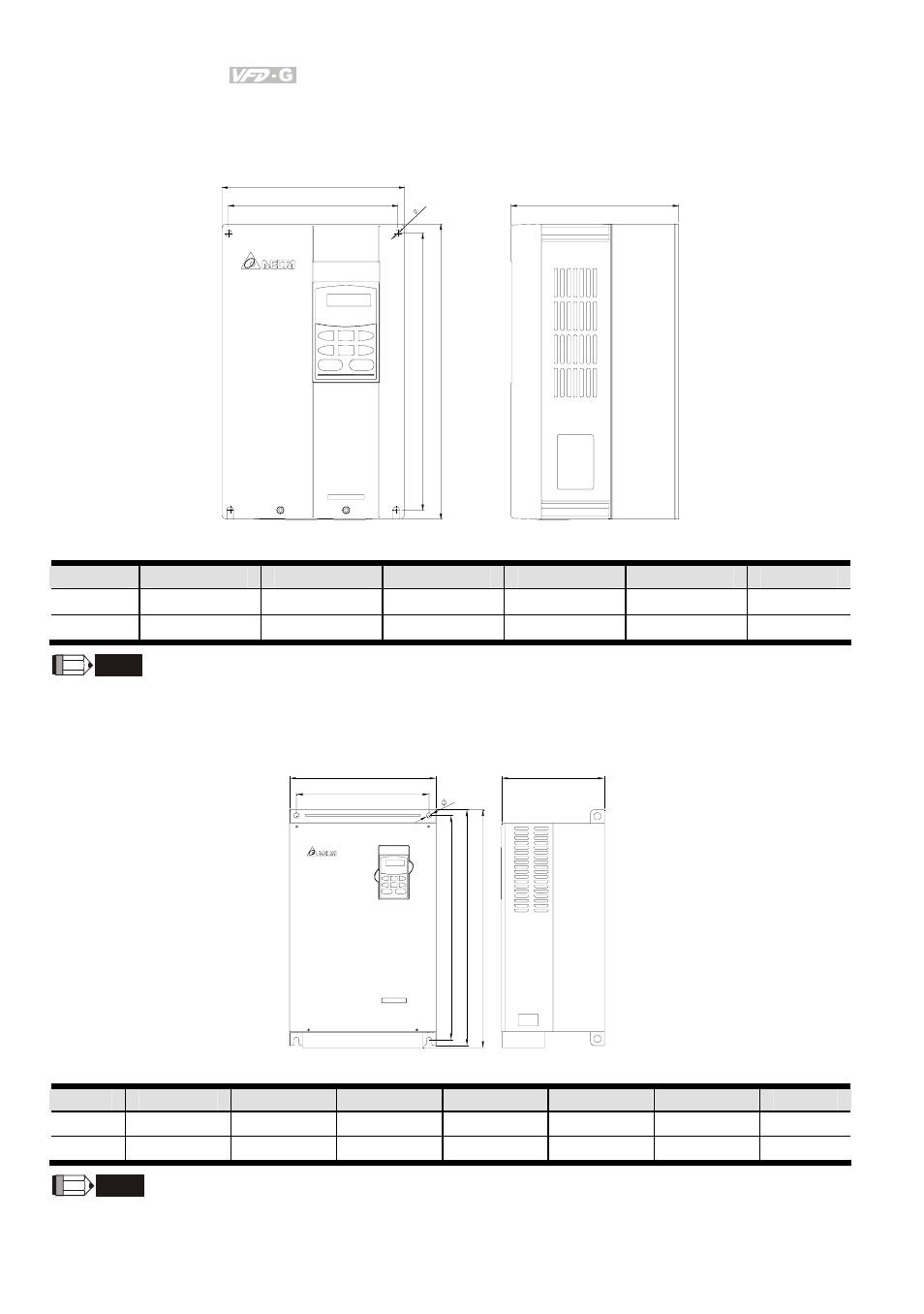

1.6 Dimensions
H H1
W
W1 D
F
Unit: mm [inch]
Frame W W1 H H1 D F
C 200.0 [7.88] 185.6 [7.31] 323.0 [12.72] 303.0 [11.93] 183.2 [7.22] 7.0 [0.28]
D 250.0 [9.84] 226.0 [8.90] 403.8 [15.90] 384.0 [15.12] 205.4 [8.08] 10.0 [0.39]
NOTE
Frame C: VFD055F43B-G, VFD075F43B-G, VFD110F43A-G, VFD150F43A-G
Frame D: VFD185F43A-G, VFD220F43A-G, VFD300F43A-G
W1
W D
H H1
F
H2
Unit: mm [inch]
Frame W W1 H H1 H2 D F
E 370.0[14.57] 335.0[13.19] 589.0[23.19] 560.0[22.05] - 260.0[10.24] 13.0[0.51]
E1 370.0[14.57] 335.0[13.19] 589.0[23.19] 560.0[22.05] 595.0[23.43] 260.0[10.24] 13.0[0.51]
NOTE
Frame E: VFD370F43A-G, VFD450F43A-G, VFD550F43A-G
Frame E1: VFD750F43A-G, VFD900F43C-G
