Chapter 1 Introduction
1.1 Receiving and Inspection
This VFD-G AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
„ Check to make sure that the package includes an AC motor drive, the User Manual/Quick Start
and CD, dust covers and rubber bushings.
„ Inspect the unit to assure it was not damaged during shipment.
„ Make sure that the part number indicated on the nameplate corresponds with the part number of
your order.

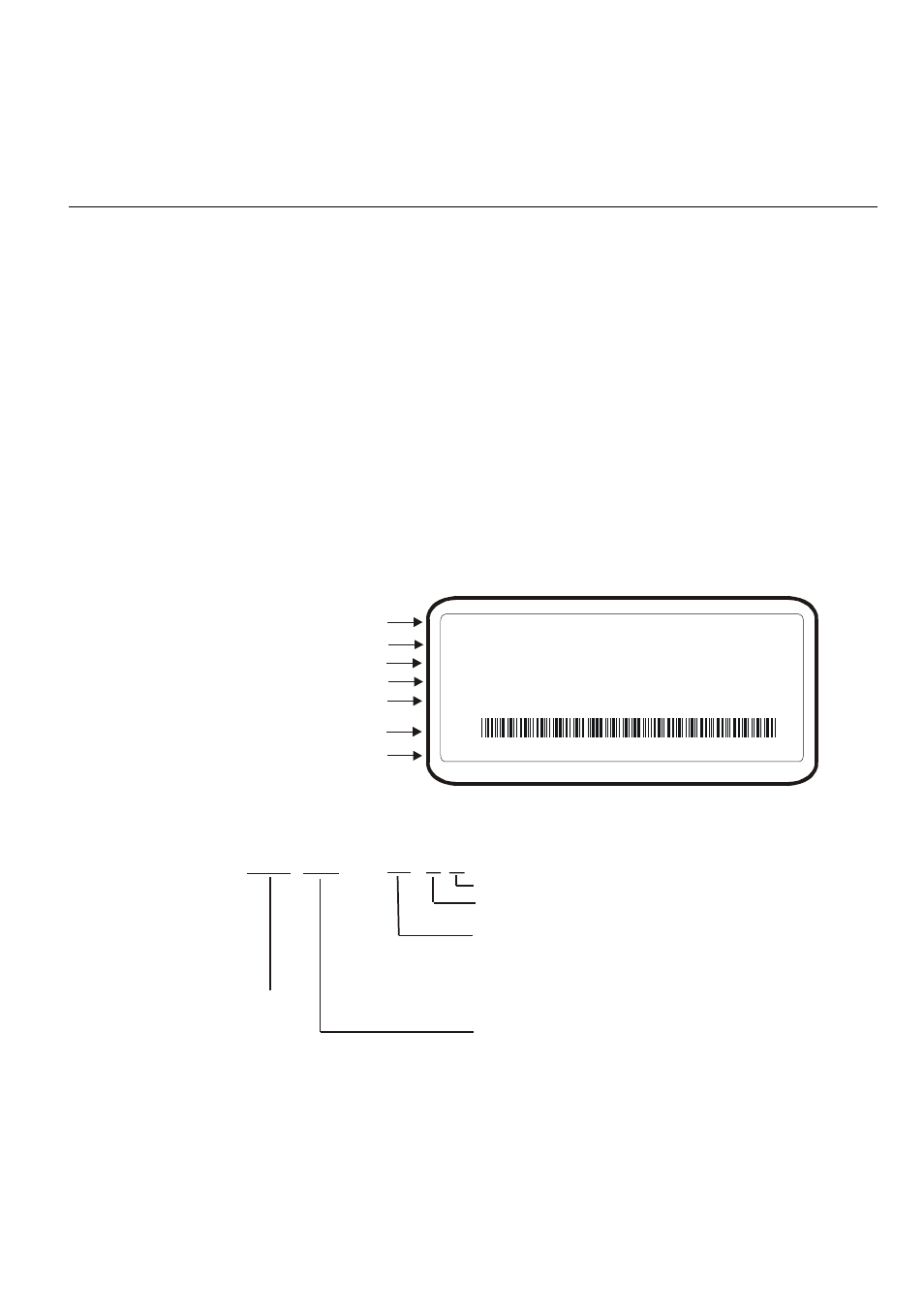

1.1.1 Nameplate Information
Example for 10HP/7.5kW 3-phase 460V AC drive
MODE : VFD075F43A-G
INPUT : 3PH 380-480V 50/60Hz 19.0A
OUTPUT : 3PH 0-480V 18A 14kVA 10HP
Freq. Range : 0.1~120.00Hz
ENCLOSURE: TYPE 1
075F43AG4T5010001
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
Bar Code
Enclosure type
Serial Number
1.1.2 Model Explanation
VFD A G -
Version Type
43
Input Voltage
43:Three phase 460V
F 075
Applicable motor capacity
Series
Name
VFD-G series
055:7.5HP(5.5kW) 075:10HP(7.5kW) 110:15HP(11kW)
150:20HP(15kW) 185:25HP(18.5kW) 220:30HP(22kW)
300:40HP(30kW) 370:50HP(37kW) 450:60HP(45kW)
550:75HP(55kW) 750:100HP(75kW) 900:125HP(90kW)
1100:150HP(110kW) 1320:175HP(132kW) 1600:215HP(160kW)
1850:250HP(185kW) 2200:300HP(220kW)
