Delta Electronics AC Motor Drive VFD-G User Manual
Page 38
Chapter 2 Installation and Wiring|
Revision July 2008, EG03, SW V1.06
2-15

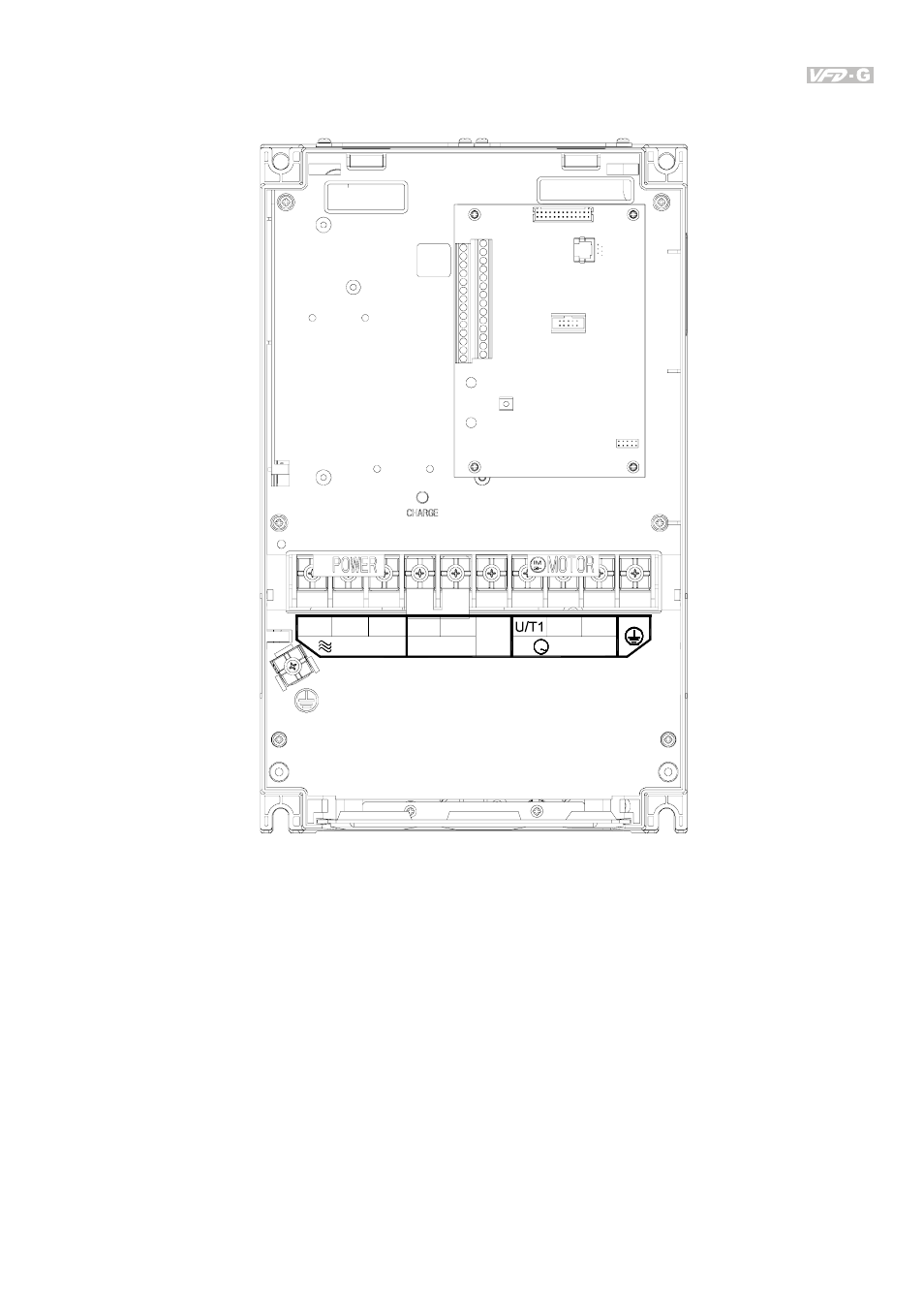

25 HP to 40 HP (VFD185F43A-G, VFD220F43A-G, VFD300F43A-G)
W/T3
V/T2
3
IM
POWER
S/L2
R/L1
-
( )
( )
+
DC DC
T/L3 +1
-
+2
MOTOR
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 30Kgf-cm (26 in-lbf)
Wire: 8-2 AWG
Wire Type: Stranded copper only, 75° C
NOTE: If wiring of the terminal utilizes the wire with a 1AWG-diameter, it is thus necessary to
use the Recognized Ring Terminal to conduct a proper wiring.
