Delta Electronics AC Motor Drive VFD-G User Manual
Page 42
Chapter 2 Installation and Wiring|
Revision July 2008, EG03, SW V1.06
2-19

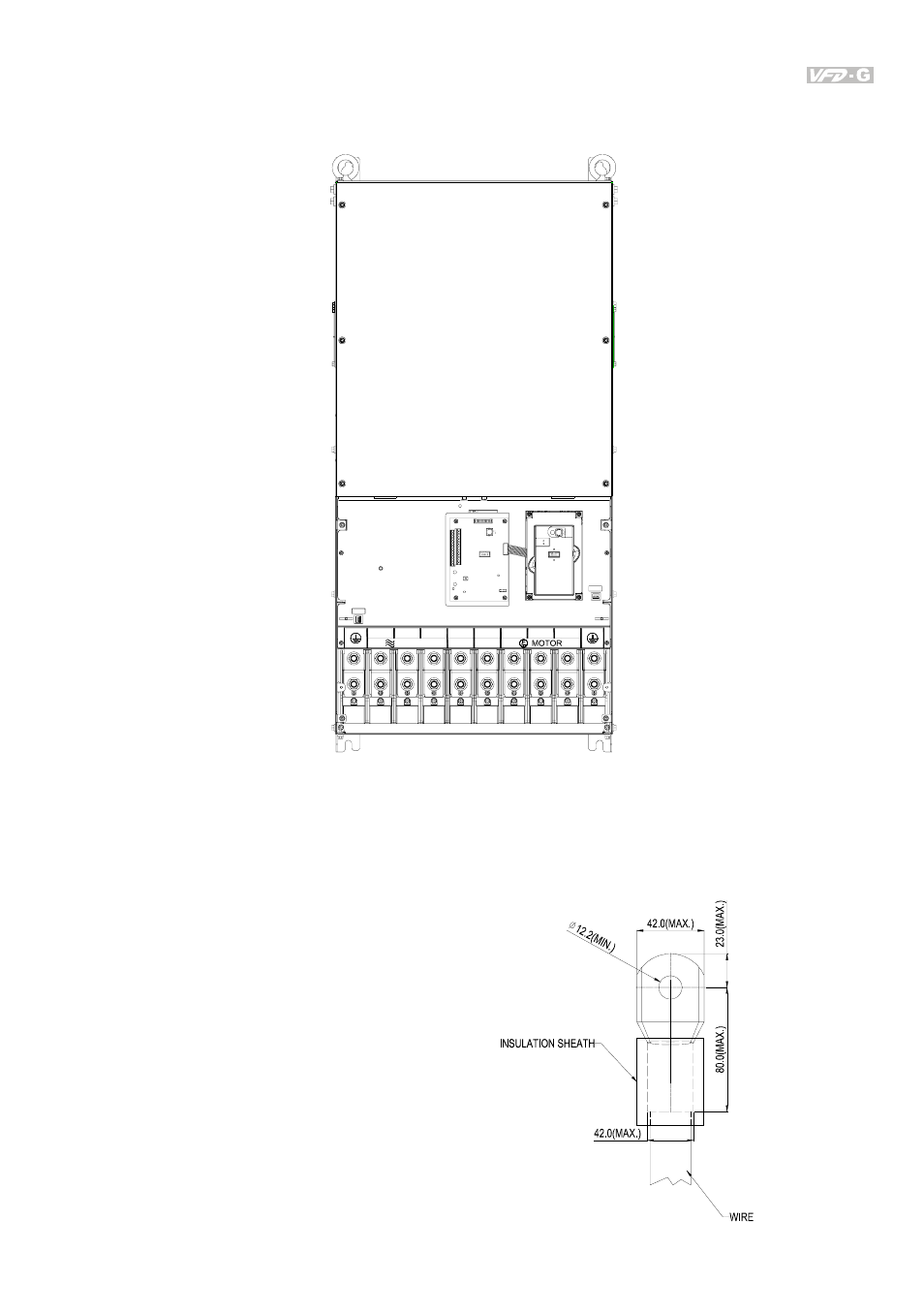

250 HP to 300 HP (VFD1850F43A-G, VFD2200F43A-G)
DC + DC
( )
( )
-
POWER
U/T1
T/L3
R/L1 S/L2
+
-
W/T3
V/T2
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 408kgf-cm (354 in-lbf)
Wire: 500 MCM (max)
Wire Type: Stranded copper only, 75°C
NOTE: It needs following additional terminal when
wiring, and add insulation sheath on position
where following figure shows.
