Notes:

• The network interface you select must already have been defined and configured, as described

in Setting up a Network Interface.

• For IzoT Commissioning Tool to communicate on an IP-852 channel, the IzoT

Commissioning Tool computer must be configured as an IP-852 device on the target channel
using the IP-852 Configuration Server. If an IP-852 device name has not been defined, create
one in the

IP-852 Configuration Server as described in Using an IP-852 Network Interface

earlier in this chapter.

8. Click Next. If you specified that IzoT Commissioning Tool computer is attached to the physical

network, the OnNet/OffNet dialog opens. If it is not attached, the Plug-In Registration dialog
opens and you can skip to step 11.

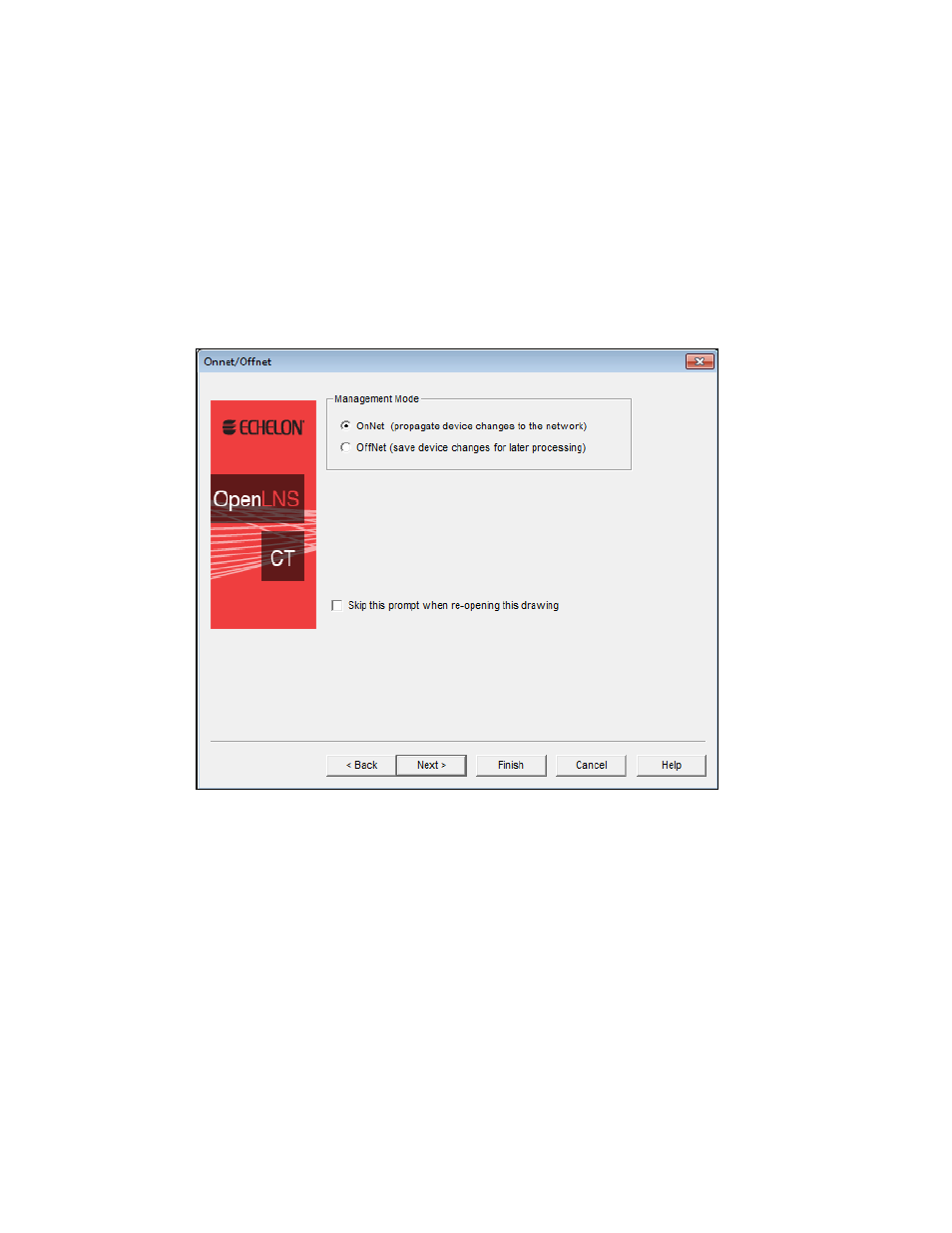

9. Select when changes made in your OpenLNS CT drawing are sent to the physical devices on the

network. You have two choices:

• OnNet. Changes to the OpenLNS CT drawing are sent immediately to the physical devices

as you make the changes. Select OnNet if you are commissioning an engineered system or if
you are working on any phase of an ad-hoc system.

• OffNet. Changes to the OpenLNS CT drawing are saved in the network database and then

sent to the physical devices once IzoT Commissioning Tool is set OnNet. Select OffNet if
you are designing an engineered system. You can make real-time changes to network
variables when IzoT Commissioning Tool is OffNet once you have commissioned devices
with IzoT Commissioning Tool OnNet. You can read and make changes to configuration
properties while IzoT Commissioning Tool is OffNet, but changes will not be propagated
until you set IzoT Commissioning Tool OnNet or you manually propagate them (by
right-clicking a device, pointing to Commissioning, and selecting Propagate CP Values to
Device on the shortcut menu).

Select this Skip the Prompt check box if you want the Network Wizard to skip the
Management Mode page each time you open the IzoT Commissioning Tool network. If the
