KEYENCE IL Series - Manual (Page 99)

4-45
4
Setting V
ar
iou
s F
unct
ions
IL-E
4-4

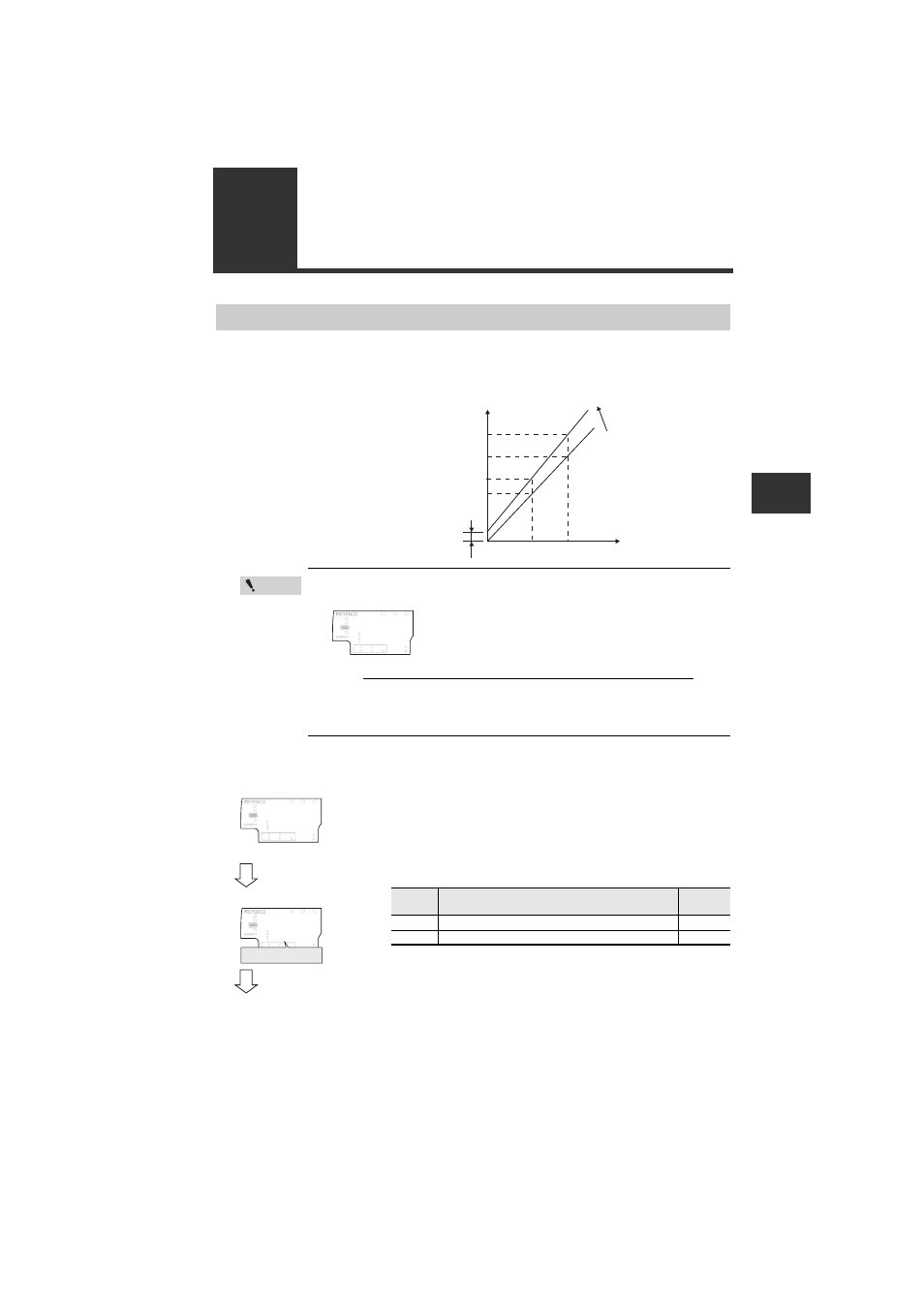

Calibration Function
When there is a difference between the internal measurement value (R.V.) and the actual
dimension of the object, the value can be calibrated.
The zero point (offset) and tilt are both corrected.
When calculation function is disabled
Setting method (Calibrating R.V.)
Point
• If the following conditions are not satisfied, the screen below is
displayed when the setting is complete. Make the setting again.
•
• Workpiece is not within measurement range.
• The setting was switched during the calibration.
Main screen
1
Press [MODE] button and X button for approx. 2
seconds on the main screen at the same time.
[30.CLb] is displayed on the main display (upper level).
2
Press S / T button to set [USr] and press X button.
Press [MODE] +
X
button
2 seconds or more
at the same time
Calibration
R.V. you wish to display (2) [ 5'V]
R.V. before calibration (2)
R.V. you wish to display (1) [ 5'V]
R.V. before calibration (1)
Offset value A Measurement value
Displayed value
'TT
LASER
BANK 0 1 2 3
HI
GO
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
5'6 HOLD CALC CHECK
0.5 ≤ (R.V. you wish to display (2) ) - (R.V. you wish to display (1))
(R.V. before calibration (2)) - (R.V. before calibration (1))
≤ 2
LASER
BANK 0 1 2 3
HI
GO
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
HOLD CALC CHECK
Setting
value
Description
Default
value
defLt Standard c
Usr User setting
*'#&
LASER
BANK 0 1 2 3
HI
GO
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
%#.KD HOLD CALC CHECK
Calibration setting
