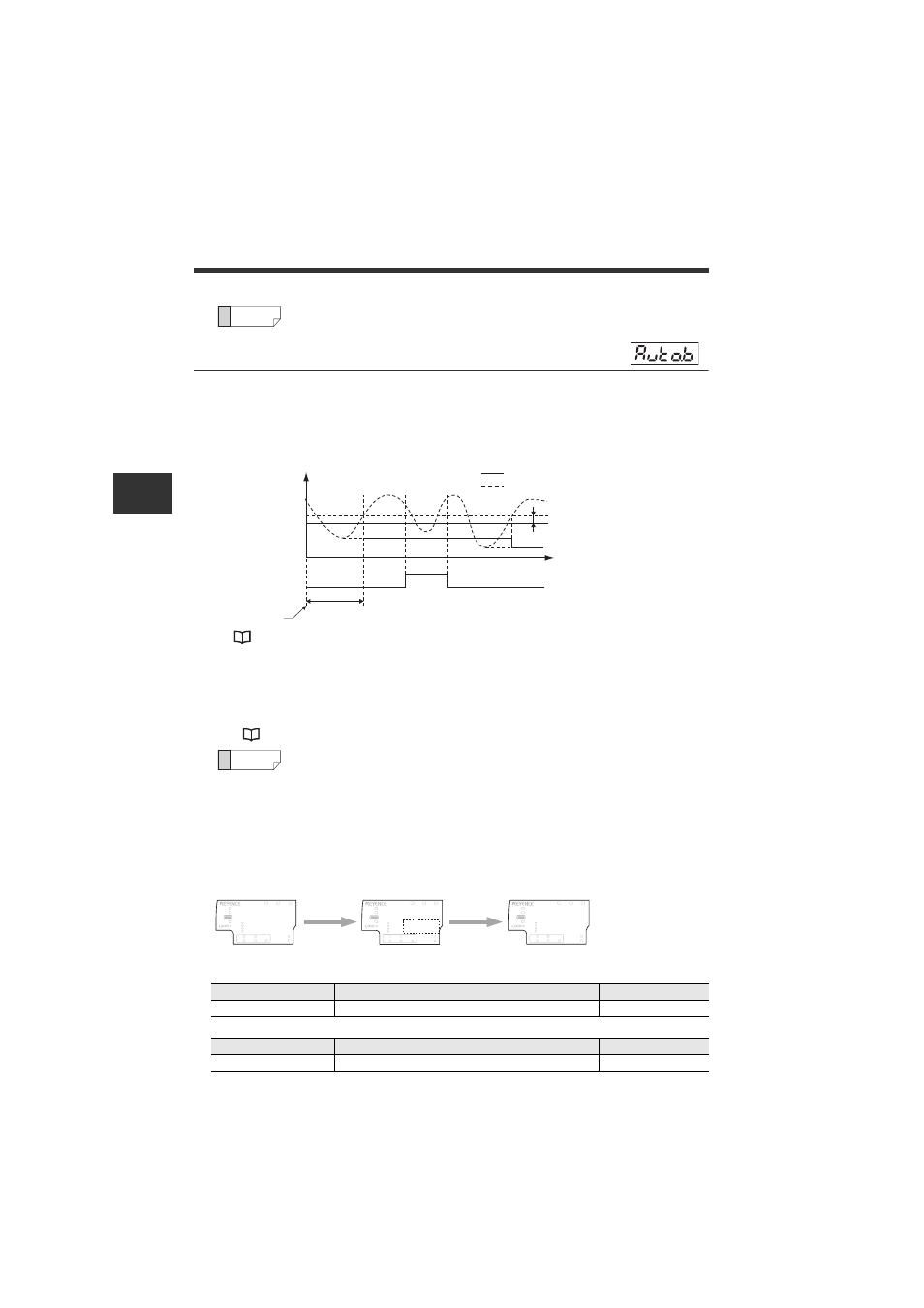

Auto bottom hold
When the internal measurement value (R.V.) falls below the specified trigger level, the
sampling begins. When it goes beyond the trigger level, the sampling finishes. When the
sampling finishes, the internal measurement value (R.V.) minimized during the sampling
period is held as a judgment value (P.V.).
The external input is not required.
*1 "11. External Input" (page 4-30)
*2 After the power is turned on or reset is input, the judgment value (P.V.) is [-----] until the
judgment value (P.V.) is first held.
*3 While the timing input is ON, the sampling does not start. If the sampling is already in
process, it continues.
*4 The main unit (IL-1000/IL-1500) displays the calculation value (CALC value) when the
calculation function is used.
“4-3 Calculation Function” (page 4-42)
„ Trigger level setting screen
When the Auto bottom hold is set, the display goes to the trigger level setting screen.
Press S / T button on the trigger level setting screen to specify the trigger level.
IL-S025/IL-030/IL-S065/IL-065/IL-100
IL-300/IL-600
Reference
The hysteresis presents the same value as the one set for "9. Hysteresis"
(page 4-26).
Reference
• The operation by the timing input is the same regardless of the "7. Timing
Input" (page 4-23) setting.
• After the sampling starts, if the internal measurement value (R.V.)
becomes "-----" before the sampling goes beyond the specified trigger
level, the sampling is automatically finished and the minimized value
during the sampling period is held as a judgment value (P.V.).
Display value
Time
Timing Input
Trigger level
Hysteresis
ON
OFF
Power ON or
Reset input *
1
* 3
* 2
Judgment value (P.V.)
Internal measurement value (R.V.)*
4
Item Setting range Default value
Trigger level -99.999 to 99.999 1.000
Item Setting range Default value
Trigger level -999.99 to 999.99 10.00
LASER
BANK 0 1 2 3
HI
GO
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
VT) HOLD CALC CHECK
#WVQD
LASER
BANK 0 1 2 3
HI
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
*.&
GO
HOLD CALC CHECK
QHH
LASER
BANK 0 1 2 3
HI
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING LO
&.;
GO
HOLD CALC CHECK
6. Hold function Trigger level setting screen 8. Delay timer
