4-2 Basic Settings and Advanced Settings
4-34
4
Setting V
ar
iou
s F
unct
ions
IL-E
Bank A input/Bank B input
By combining ON/OFF setting of bank A input and bank B input, you can switch the banks.
“3-6 Bank Function (Registering Multiple Tolerance Setting Values)” (page 3-20)
"12. Bank Switching Method" (page 4-35)

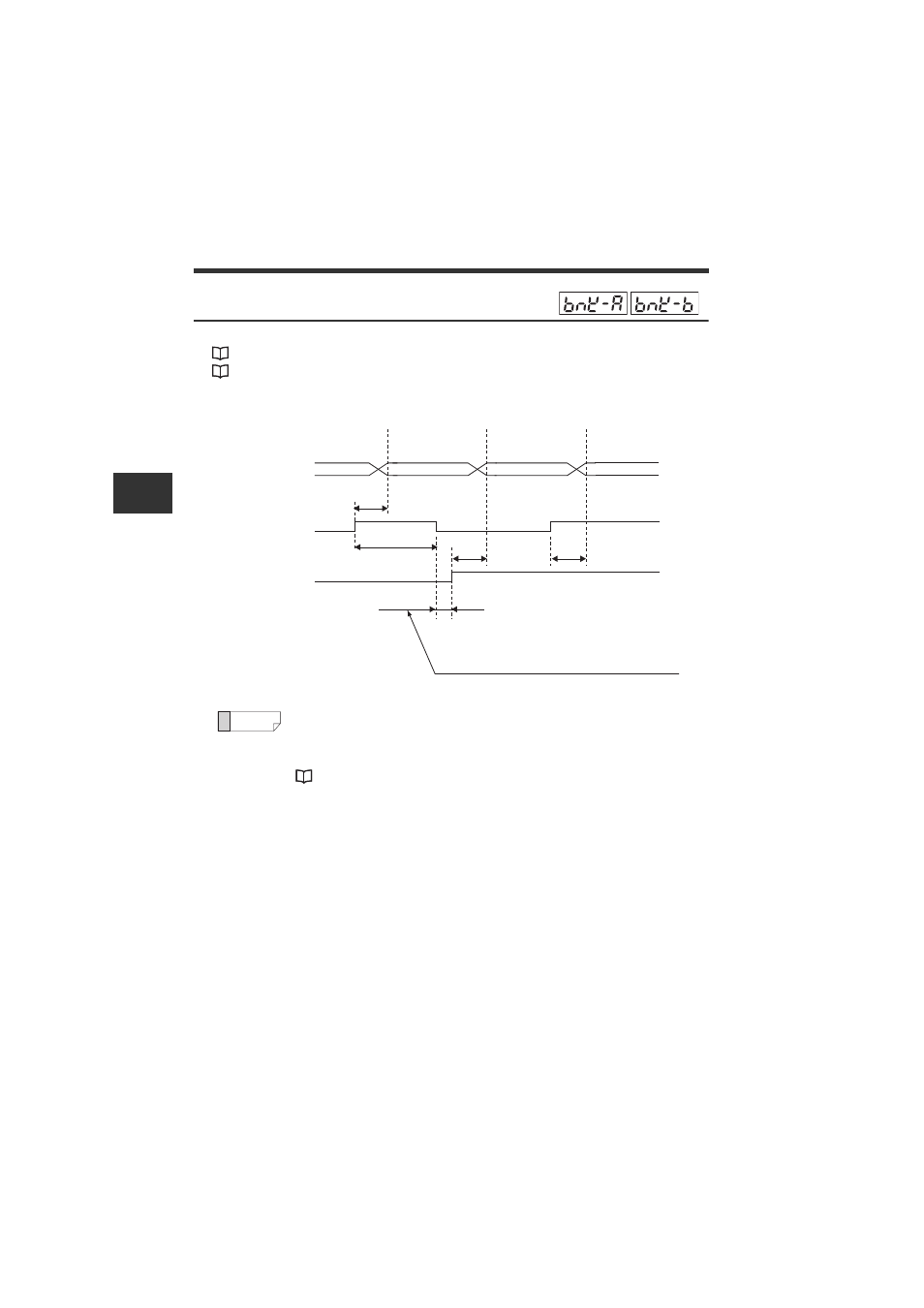

„ Timing chart
„ Minimum Input Time
ON time: 20 ms
OFF time: 20 ms
Reference
When the judgment value (P.V.) is held using the hold function, the judgment
value (P.V.) remains held even if ON/OFF for bank A input or bank B input is
switched. However, the judgment output changes according to the setting
value set for the new bank.
"6. Hold Function" (page 4-15)
Judgment value
(P.V.) judgment
output
Max. 8 ms
Max. 20 ms
Max. 20 ms
Min. 20 ms
ON
OFF
Bank A input
ON
OFF
Bank B input
Max. 20 ms
Bank 1 Bank 2 Bank 3 Bank 0
In this example, after 8 ms have passed, Bank A
and Bank B are judged as OFF and operation at
Bank 0 may be performed during a certain period.
