4-2 Basic Settings and Advanced Settings
4-25
IL-E
4
Setting V
ar
iou
s F
unct
ions

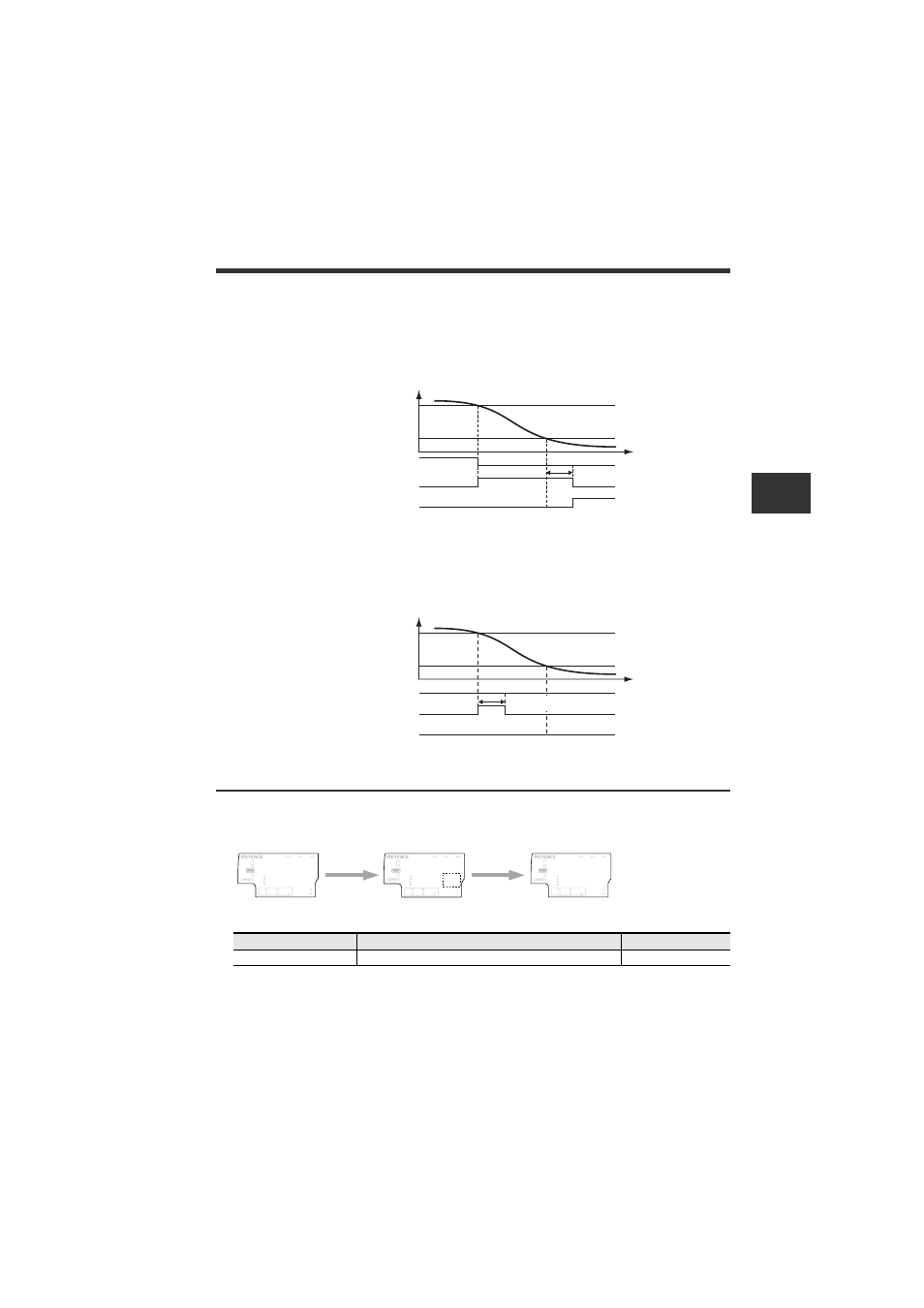

OFF-delay timer
Time required to change the GO judgment output operation from ON to OFF is delayed for
specified time set on the timer. Also, time required to change the HIGH judgment output
and LOW judgment output operations from OFF to ON is delayed.
1-shot timer
When the GO judgment output is turned ON, if the specified time set on the timer elapses,
the GO judgment output is forcibly turned OFF. The HIGH judgment output and the LOW
judgment output are not turned ON.
Timer setting screen
When the timer settings other than the Delay timers off are set, the display goes to the timer
setting screen. (When the Delay timer off is set, this screen is skipped.)
Press S / T button on the timer setting screen to specify the timer.
Time
Timer value
Judgment value (P.V.)
HIGH side setting value
LOW side setting value
ON
OFF
ON
OFF
ON
OFF
HIGH judgment output
GO judgment output
LOW judgment output
Time
Judgment value (P.V.)
HIGH side setting value
LOW side setting value
ON
OFF
ON
OFF
ON
OFF
HIGH judgment output
GO judgment output
LOW judgment output
Timer value
Item
Setting range
Default value
Timer value
5 to 9999 (ms)
60
QP&
LASER
BANK
0
1
2
3
HI
LO
R.V.
ANALOG
HI
SHIFT
ZERO SHIFT
TIMING
LO
&.;
GO
HOLD
CALC
CHECK
LASER
BANK
0
1
2
3
HI
GO
LO
R.V. ANALOG
HI SHIFT
ZERO SHIFT
TIMING
LO
&.;6
HOLD CALC CHECK
LASER
BANK
0
1
2
3
HI
LO
R.V.
ANALOG
HI
SHIFT
ZERO SHIFT
TIMING
LO
*;5
GO
HOLD
CALC
CHECK
8. Delay timer
Timer setting screen
9. Hysteresis
[MODE]
or X
[MODE]
or X
