316

|

Jumpers and Connector


Interposer Extender for 2U Node Connectors

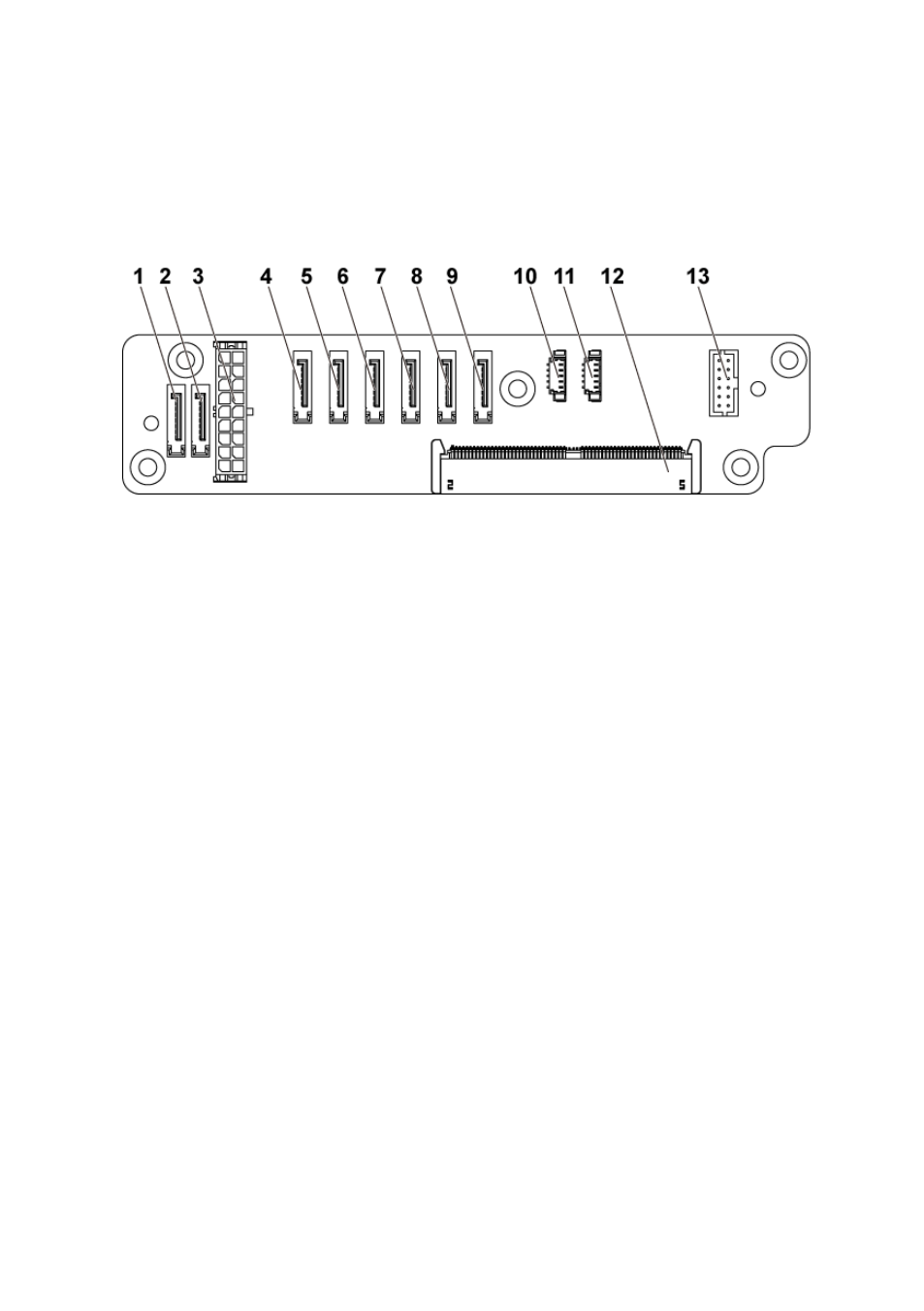

Figure 5-10. Interposer Extender Connectors

1

SATA2 and SAS connectors
connector 6

2

SATA2 and SAS connectors
connector 7

3

2x9pin power connector

4

SATA2 and SAS connectors
connector 5

5

SATA2 and SAS connectors 4

6

SATA2 and SAS connectors
connector 3

7

SATA2 and SAS connectors 2

8

SATA2 and SAS connectors
connector 1

9

SATA2 and SAS connectors 0

10

SGPIO Connector 2

11

SGPIO Connector 1

12

middle plane connector

13

2x6pin control connector
