Dell PowerEdge C6220 User Manual
Page 181
Installing System Components | 181
3 Remove the screws that secure the LSI 9265-8i card assembly. See
4 Lift the LSI 9265-8i card assembly out of the system-board assembly.

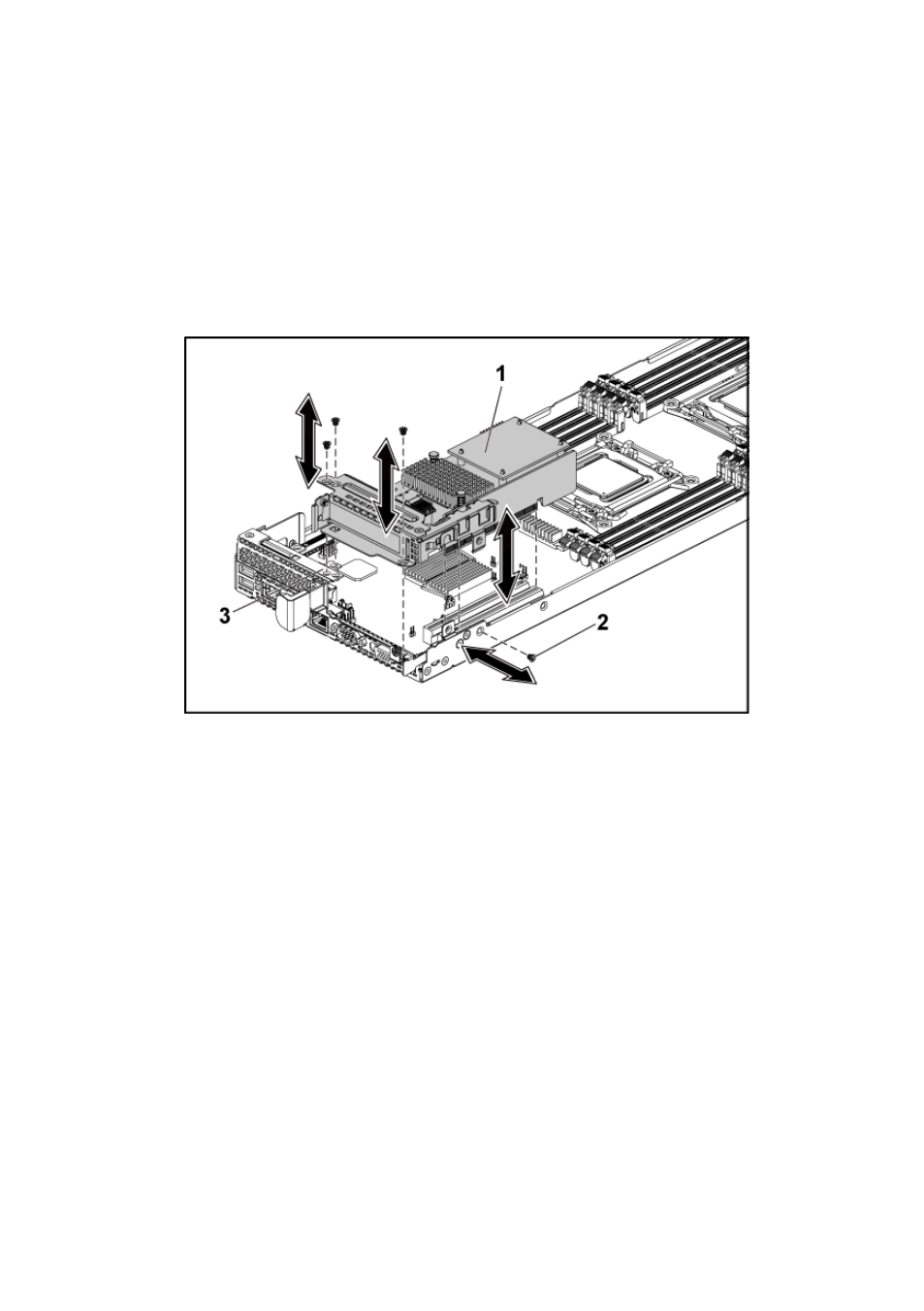

Figure 3-22. Removing the LSI 9265-8i Card Assembly for 1U Node
1
LSI 9265-8i-card assembly
2
screw (4)
3
system-board assembly
