Page 234
234
|
Installing System Components

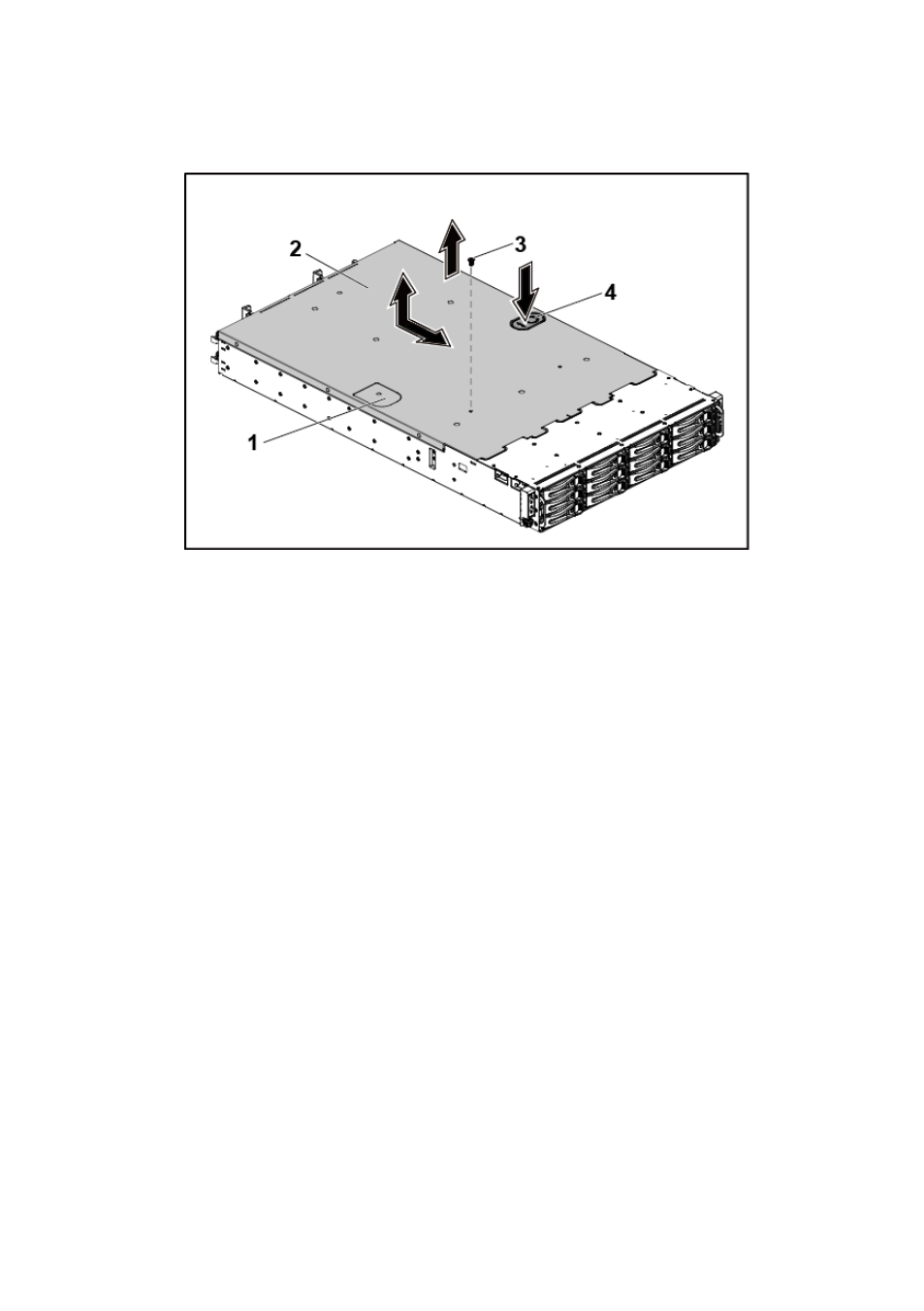

Figure 3-58. Opening and Closing the System
1
traction pad
2
system cover
3
securing screw
4
cover release latch lock
Closing the System
1 Place the cover on the chassis and slide it to the front of the chassis
until it snaps into place. See Figure 3-58.
2 Secure the cover with the securing screw. See Figure 3-58.
