6 Remove the four screws securing the 2U riser card to the expansion-

card bracket. See Figure 3-39.

7 Pull the 2U riser card away from the expansion-card racket. See Figure

3-39.

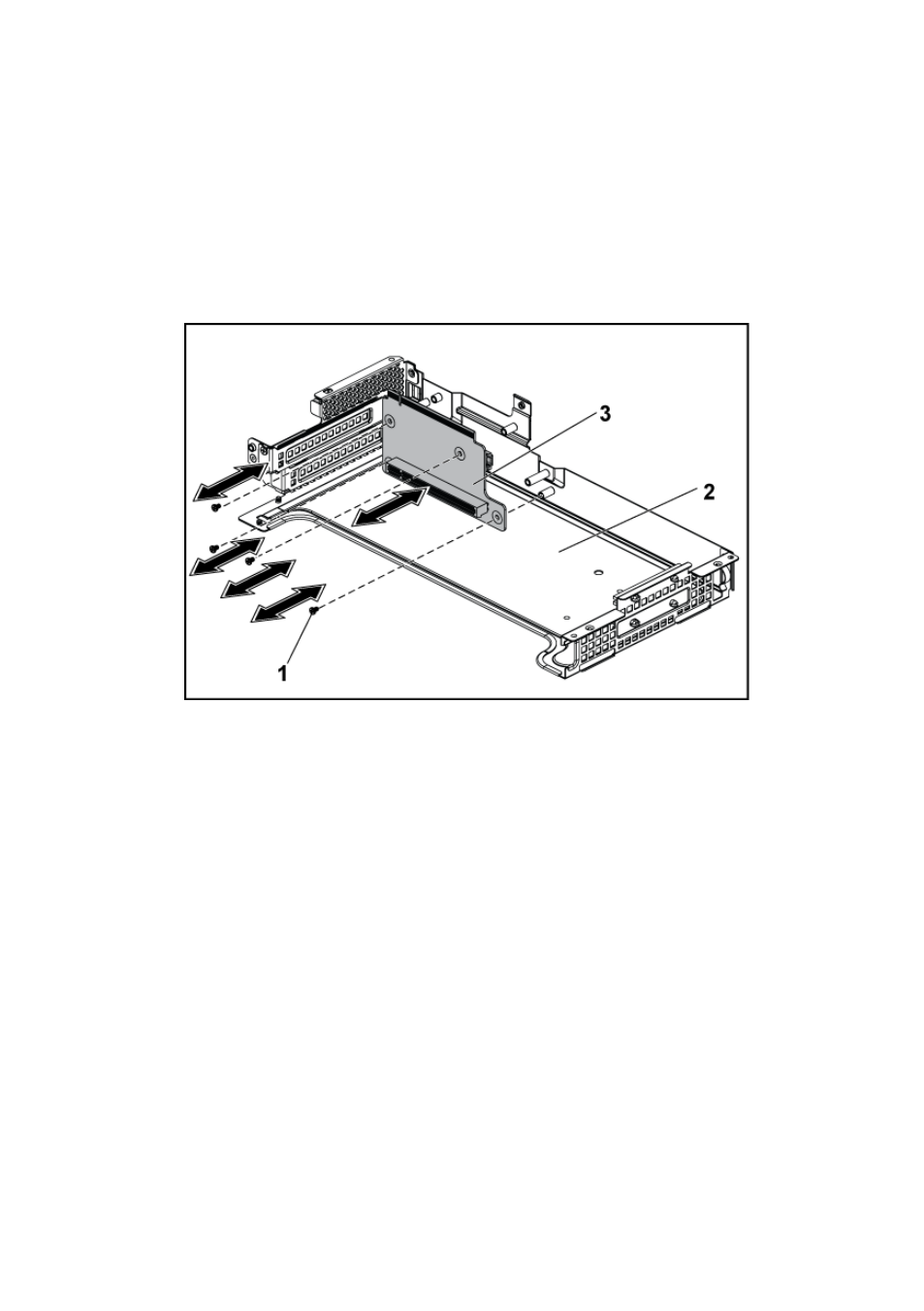

Figure 3-39. Removing and Installing the 2U Riser card

1

screw (4)

2

expansion-card bracket

3

2U riser card
