Jumpers and Connector | 315

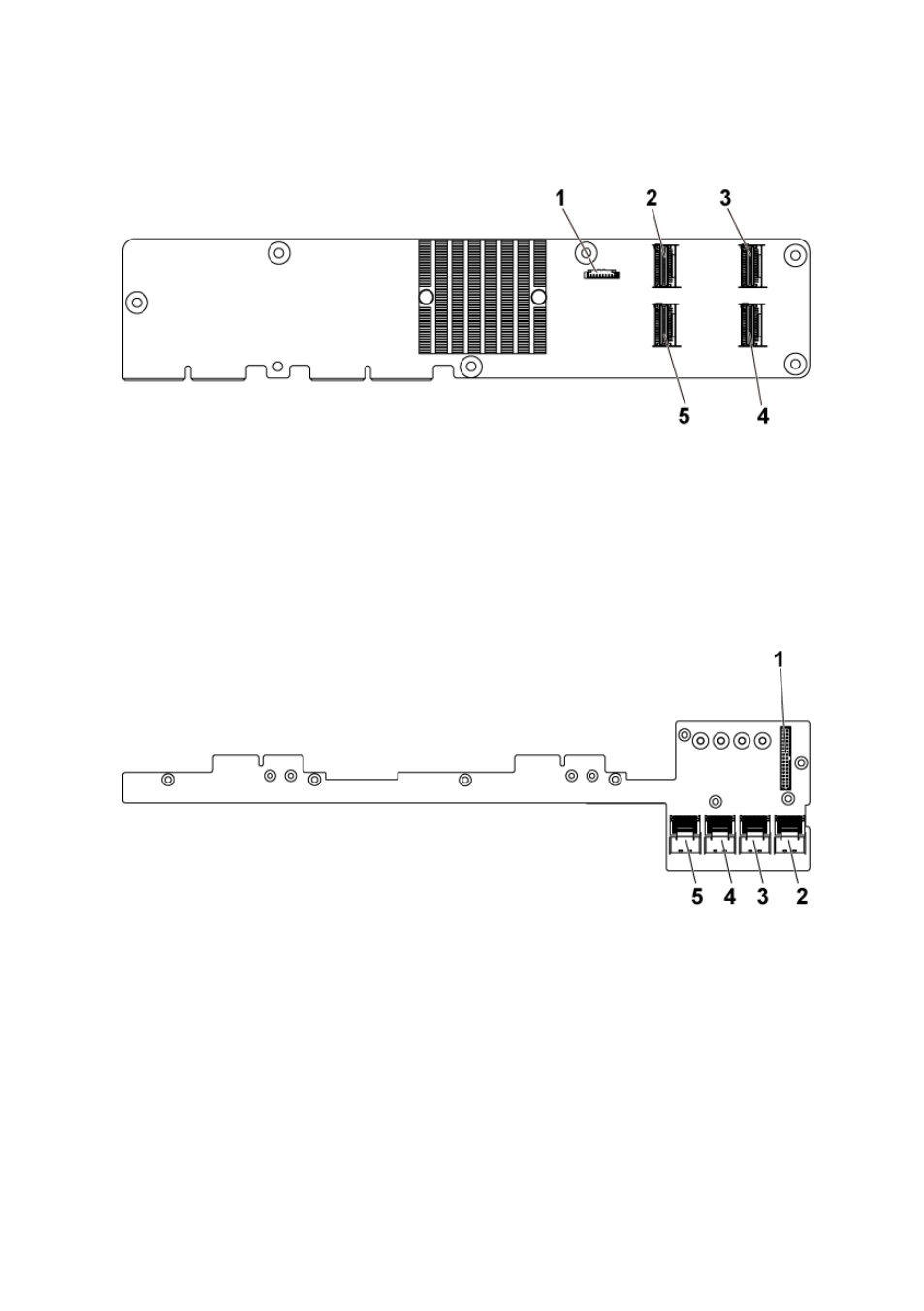

Figure 3-8. Top View of the 2.5” Hard-Drive Expander Card

1

Power control connector

2

mini-SAS connector (4~7)

3

mini-SAS connector (12~15)

4

mini-SAS connector (8~11)

5

mini-SAS connector (0~3)

Middle Plane Connectors

Figure 5-9. Middle Plane Connectors

1

2x17pin control connector for PDB1

2

mini-SAS connector for system
board 3 and 4 (hard drive 5 and 6)

3

mini-SAS connector for system
board 3 and 4 (hard drive 1,2,3 and 4)

4

mini-SAS connector for system
board 1 and 2 (hard drive 5 and 6)

5

mini-SAS connector for system
board 1 and 2 (hard drive 1,2,3 and 4)
