320 | Jumpers and Connector
Power Distribution Board 1 Connectors

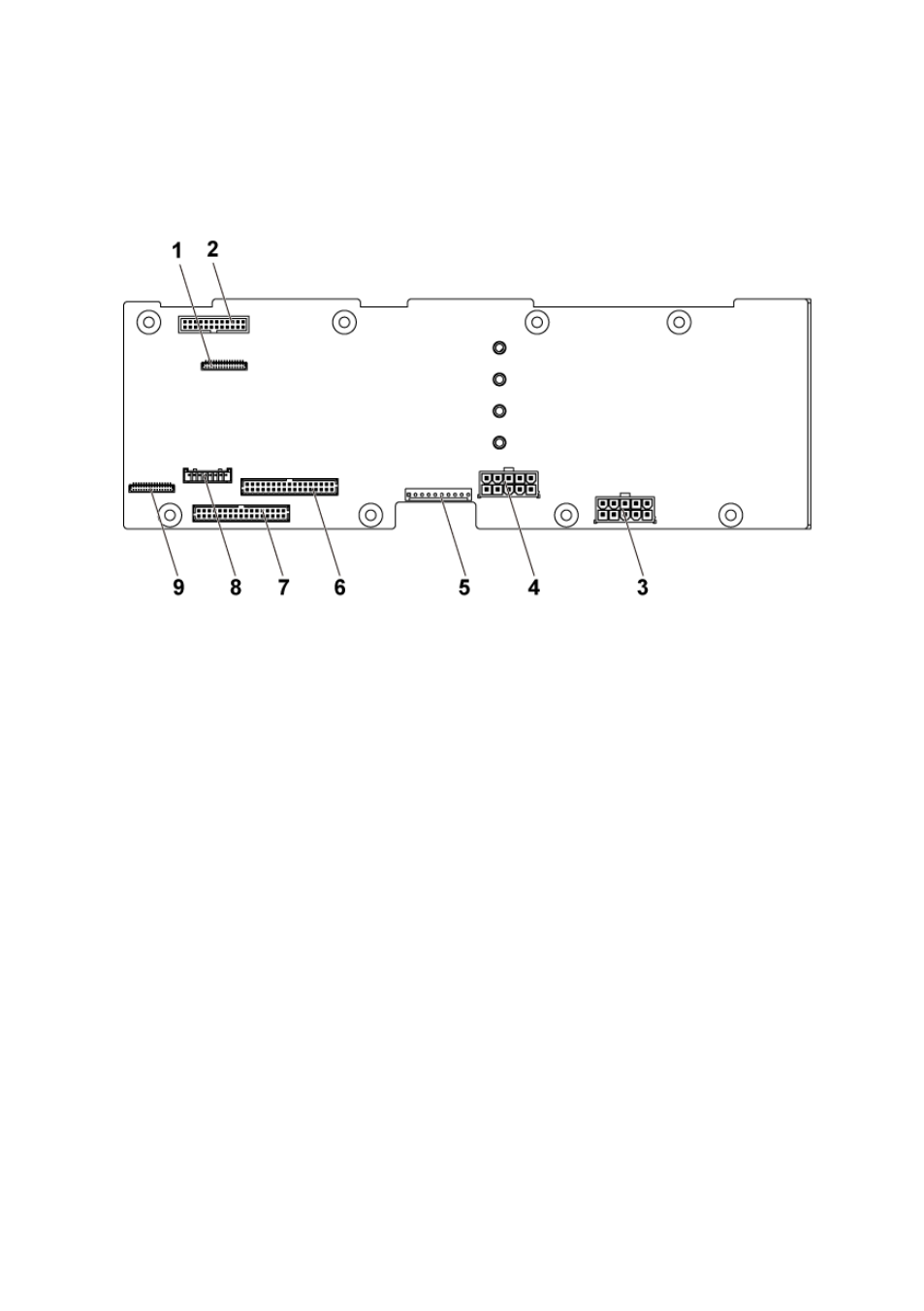

Figure 5-14. Power Distribution Board 1 Connectors
1 front panel connector for system
board 1 and 2 2 system fan connector
3 hard drive backplane power
connector 1 4 hard drive backplane power
connector 2
5 1x10pin control connector 6 2x17pin control connector for
system board 2 and 4
7 2x17pin control connector for
system board 1 and 3 8 1x8pin control connector to hard
drive backplane
9 front panel connector for system
board 3 and 4
