Installing System Components | 269
9 Remove the screws that secure the backplane to the hard-drive cage.
See Figure 3-85.
10 Remove the backplane from the hard-drive cage. See Figure 3-85.

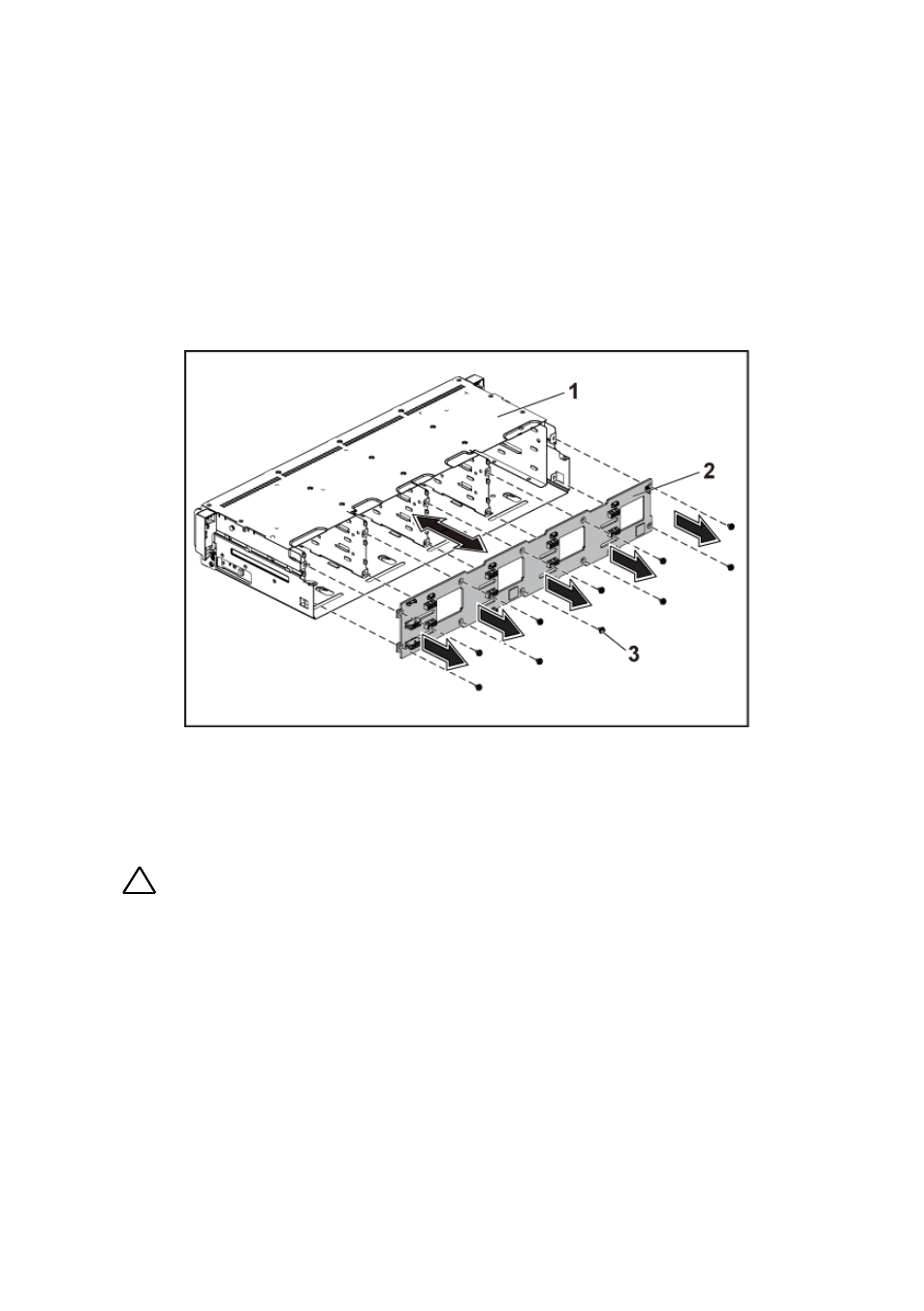

Figure 3-85. Removing and Installing the Direct Backplane From the Hard-Drive
Cage
1 hard-drive cage 2 3.5-inch Direct Backplane
3 screw (10)
Installing the Direct Backplane
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
1 Install the backplane into the hard-drive cage. See Figure 3-85.
2 Replace the screws that secure the backplane to the hard-drive cage.
See Figure 3-85.
3 Replace the hard-drive cage into the chassis. See Figure 3-84.
