Page 245
Installing System Components | 245
Cable Routing for Power Distribution Board
Cable routings for power distribution board 1 (top) and power distribution
board 2 (bottom) in the 1U node system and 2U node system are the same.
The following figure shows an example using 1U node system.

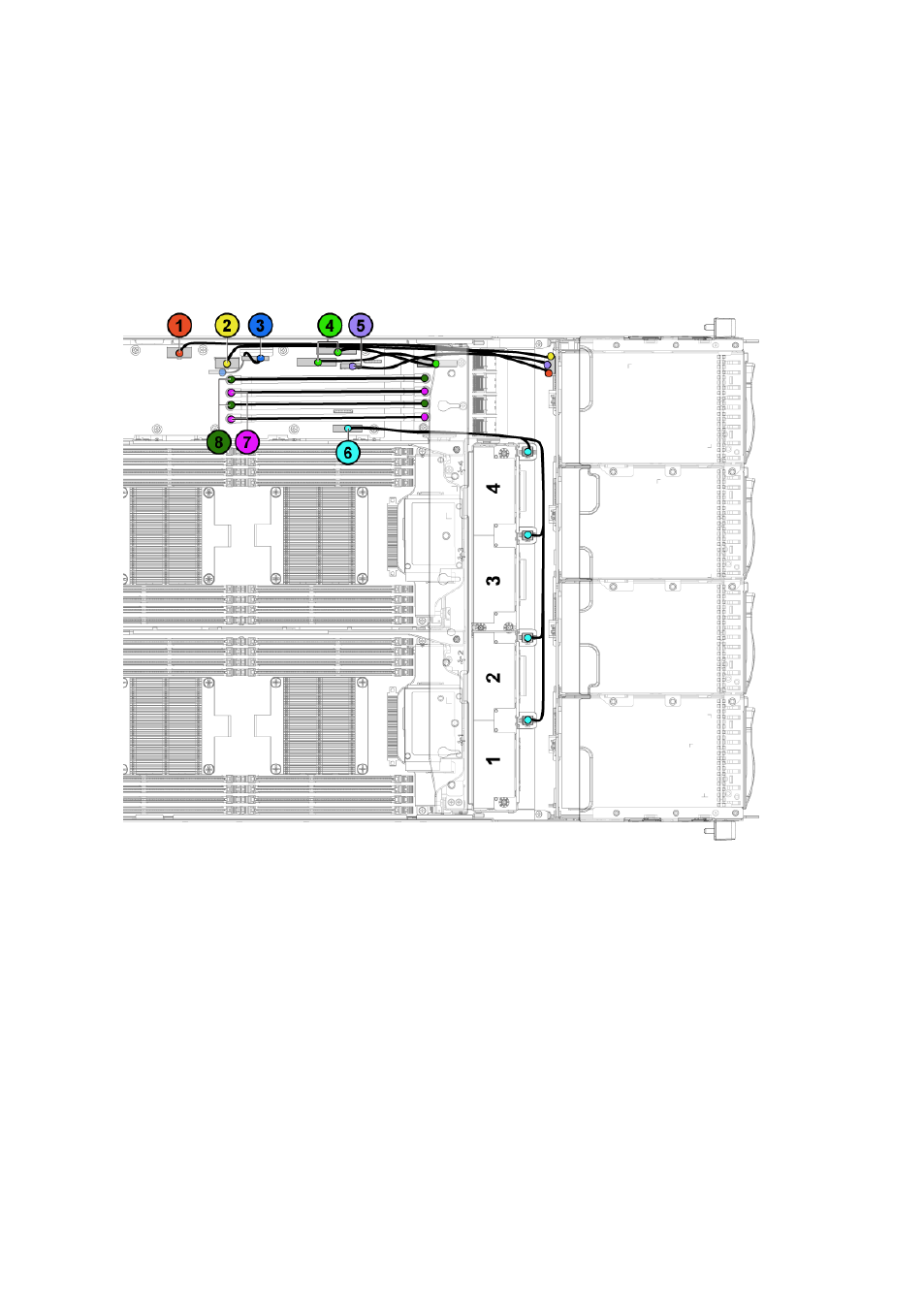

Figure 3-66. Cable Routing−Power Distribution Board 1 (Top)
