312 | Jumpers and Connector
2.5" Hard-Drive Direct Backplane

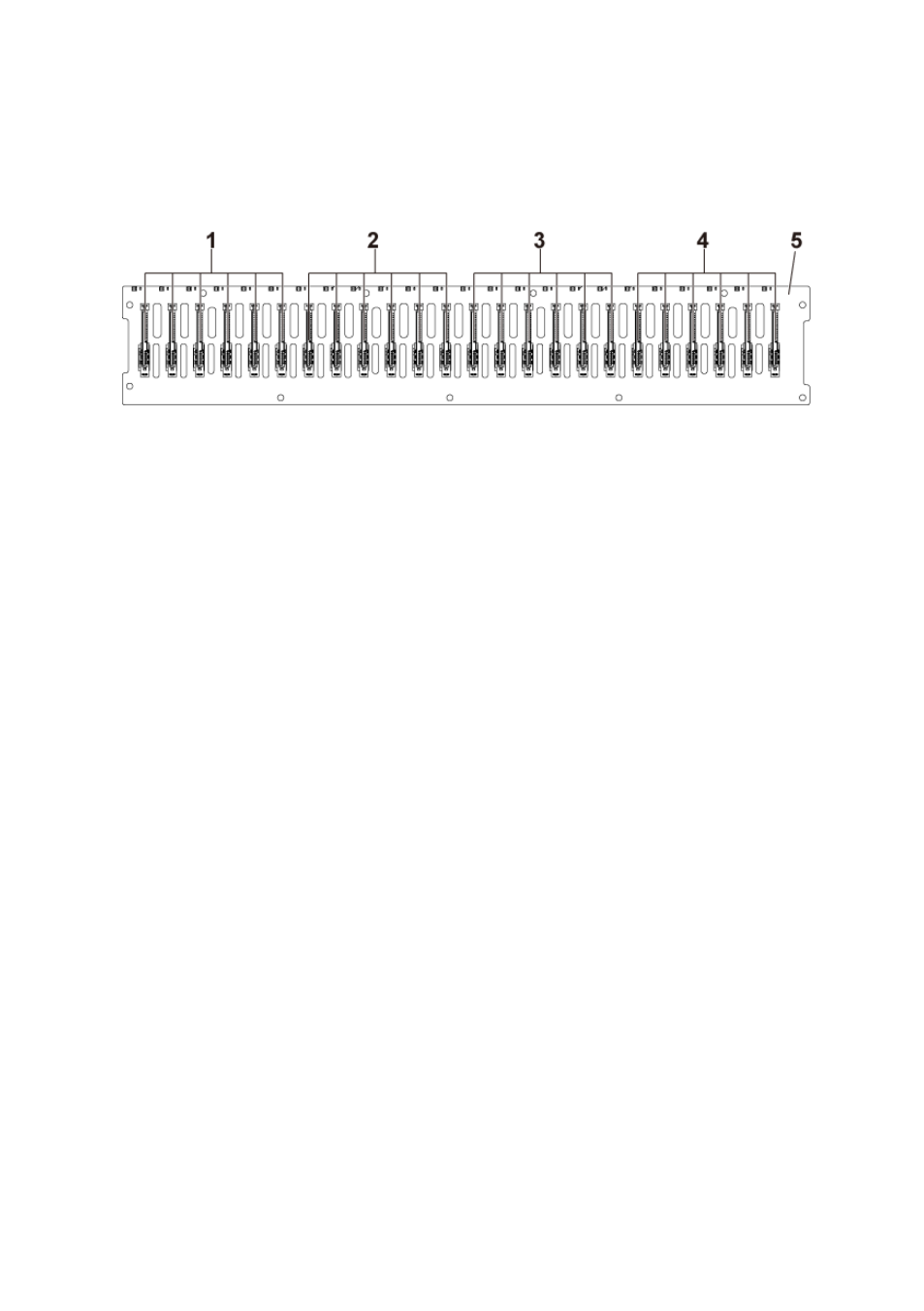

Figure 5-4. Front View of the Backplane
1 SATA2 and SAS connectors 1 to 6
for system board 1 (from left to right) 2 SATA2 and SAS connectors 1 to 6
for system board 2 (from left to
right)
3 SATA2 and SAS connectors 1 to 6
for system board 3 (from left to right) 4 SATA2 and SAS connectors 1 to 6
for system board 4 (from left to
right)
5 2.5” backplane
