Installing System Components | 185

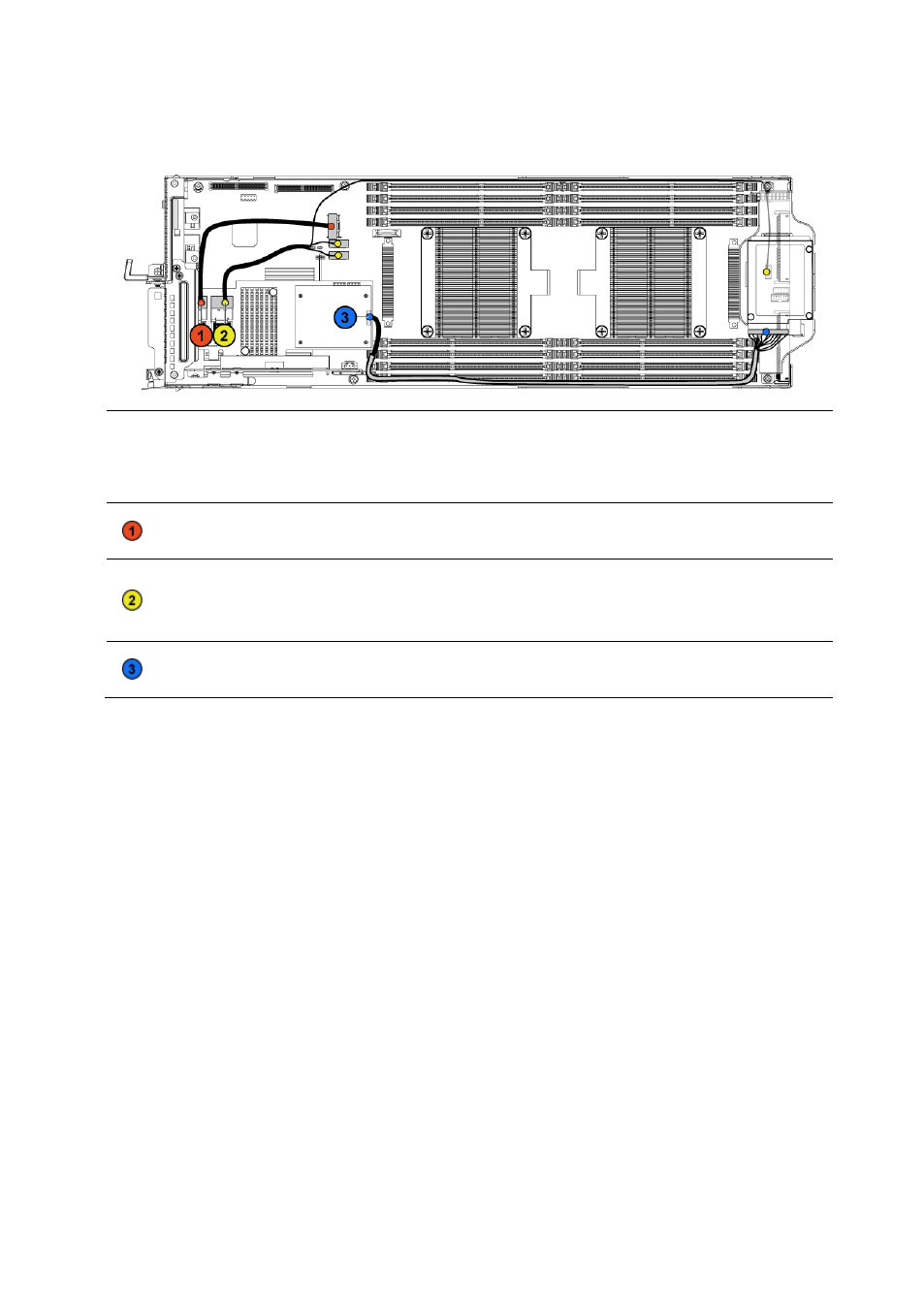

Figure 3-24. Cable Routing for LSI 9265-8i Card (1U Node)

Item

Cable

From
(LSI 9265-8i Card)

To
(RAID Battery and

System Board)

Mini-SAS
cable

Mini-SAS connector
0~3(J2B1)

Mini-SAS connector 0

Mini-SAS
/SGPIO cable

Mini-SAS connector
4~7 (J2B2)

Onboard SATAII
connectors 4&5 and
SGPIO 2

RAID battery
cable

RAID battery connector
(J4)

RAID battery
connector
