Installing System Components | 211
Cable Routing for LSI 2008 SAS Mezzanine Card (2U Node)
1 Connect the mini-SAS cable to the LSI 2008 SAS mezzanine card, and
connect the other end of the cable to the corresponding connector on
the system board. See Figure 3-43.
2 Connect the mini-SAS&SGPIO cable to the LSI 2008 SAS mezzanine
card, and connect the other end of the cable to the corresponding
connectors on the interposer extender. See Figure 3-43.
3 Connect the power cable to the interposer extender for 2U node, and
connect the other end of the cable to the corresponding connector on
the system board. See Figure 3-43.

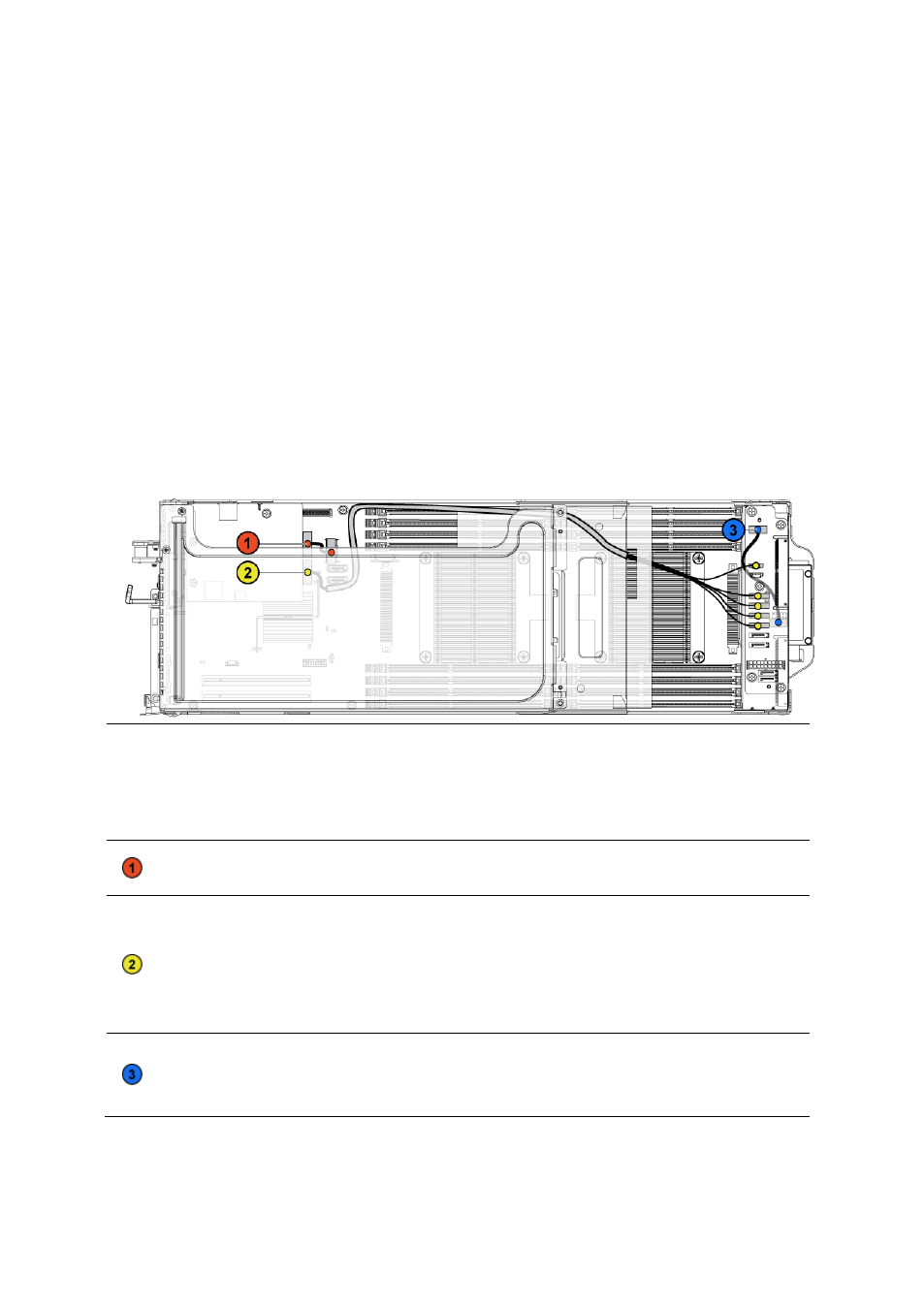

Figure 3-43. Cable Routing for LSI 2008 SAS Mezzanine Card (2U Node)
Item Cable From
(LSI 2008 SAS
Mezzanine Card)
To
(System Board and Hard
Drive to Backplane
SATAII Connectors)
Mini-SAS
cable Mini-SAS connector
4~7 (J4) Mini-SAS connector 0
on the system board
Mini-SAS
/SGPIO cable Mini-SAS connector
0~3 (J3) SATAII connectors
0~3 and SGPIO 1
connector on the
interposer extender for
2U node
Power cable Control connector
(J3) on the interposer
extender for 2U node Front panel connector
1 on the system board
