Dell PowerEdge C6220 User Manual
Page 170
170
|
Installing System Components
2 Remove the four screws that secure the expansion-card assembly. See
3 Lift the expansion-card assembly out of the system-board assembly.
See Figure 3-15.

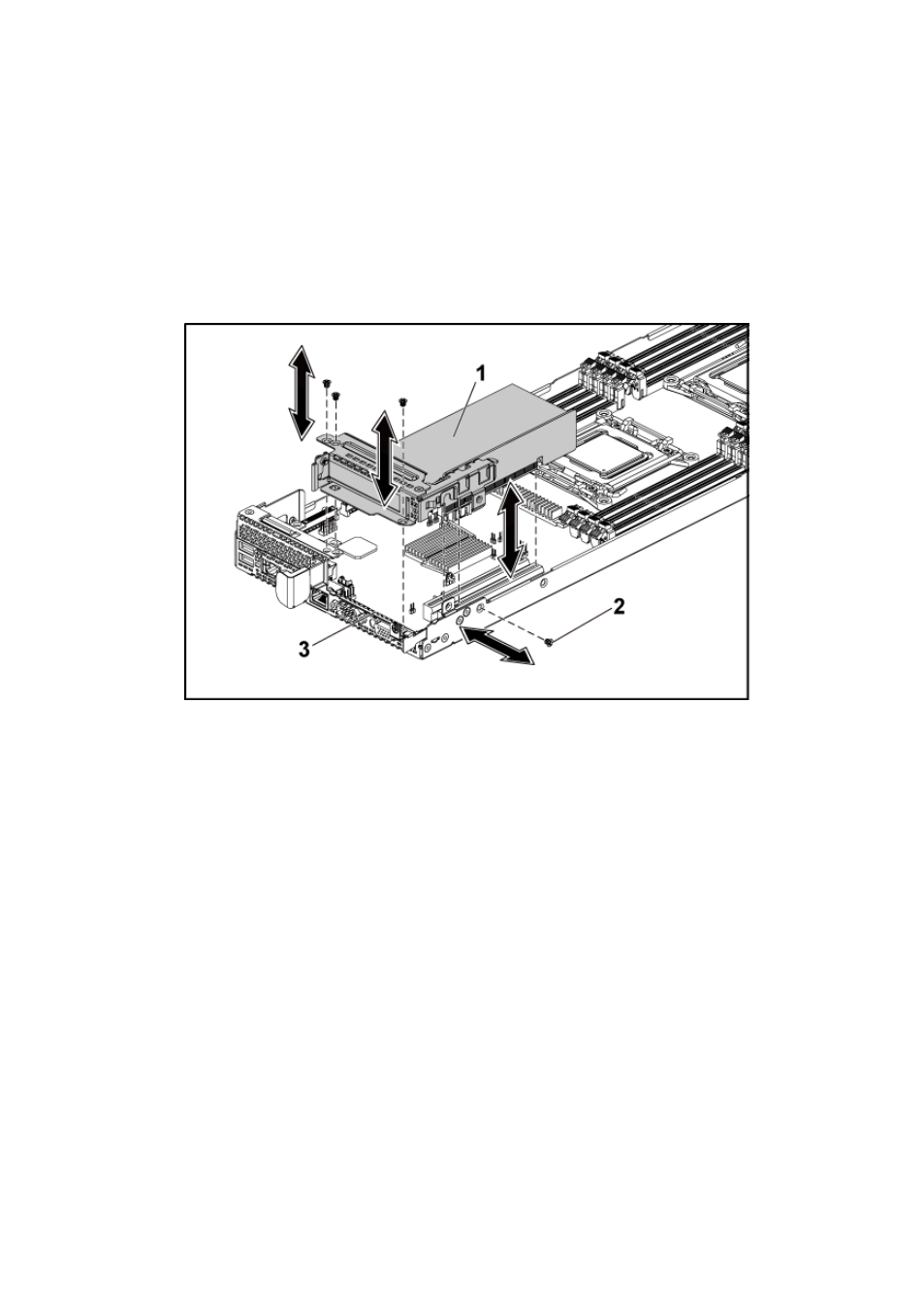

Figure 3-15. Removing the Expansion-Card Assembly for 1U Node
1
expansion-card assembly
2
screw (4)
3
system-board assembly
