Installing System Components | 237


5 Disconnect the fan cable from the fan connector on the cooling-fan

cage. See Figure 3-60.

6 Lift the cooling fan with the sponge out of the cooling-fan cage. See

Figure 3-60.

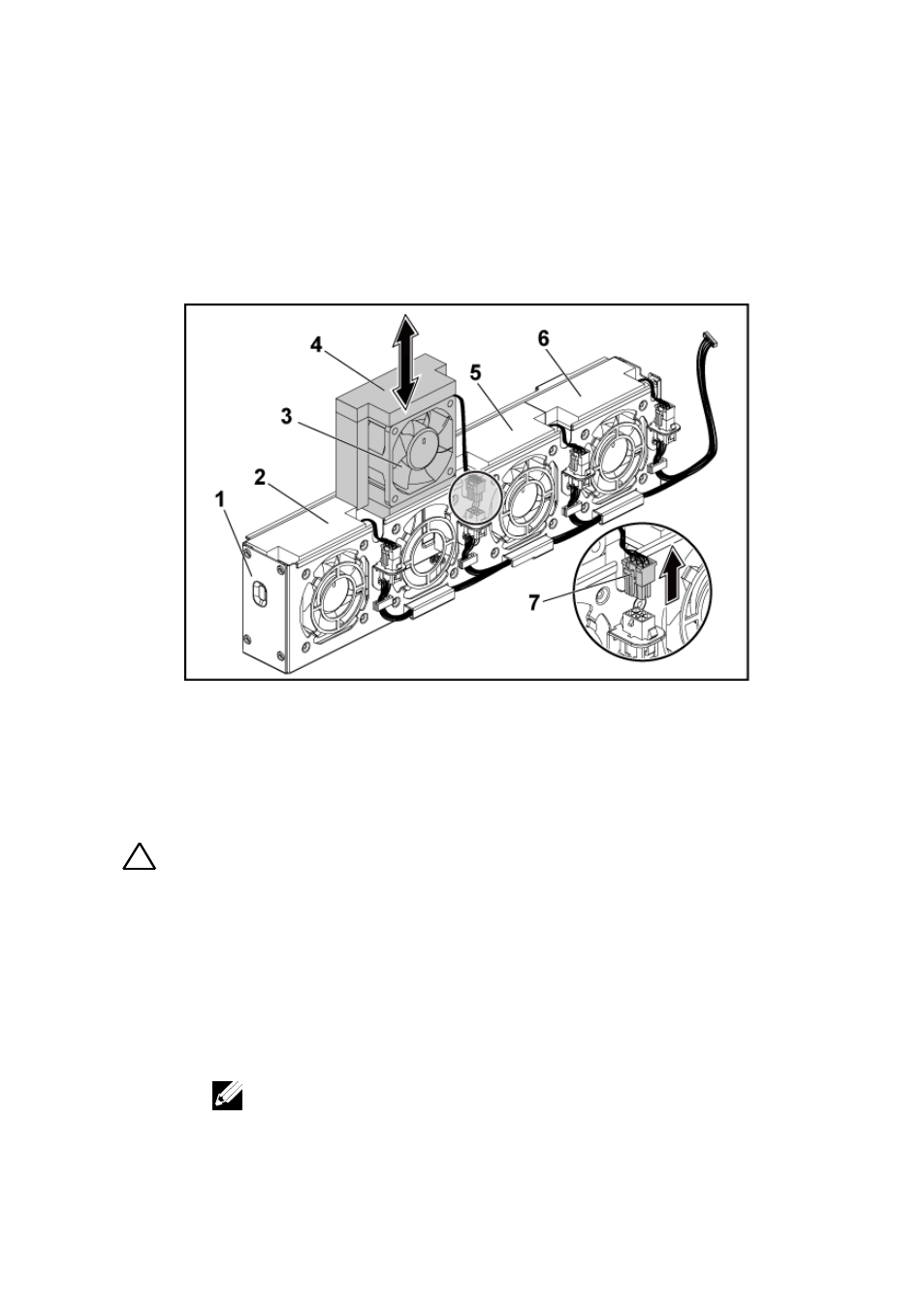

Figure 3-60. Removing and Installing a Cooling Fan

1

cooling-fan cage

2

cooling fan 1

3

cooling fan 2

4

sponge

5

cooling fan 3

6

cooling fan 4

Installing a Cooling Fan

CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with

the product.

1 Align the cooling fan with sponge and slide it in the cooling-fan cage

until the cooling fan is firmly seated. See Figure 3-60.

NOTE: The fan blades should face the front panel of the system.
