Dell PowerEdge C6220 User Manual
Page 263
Installing System Components | 263

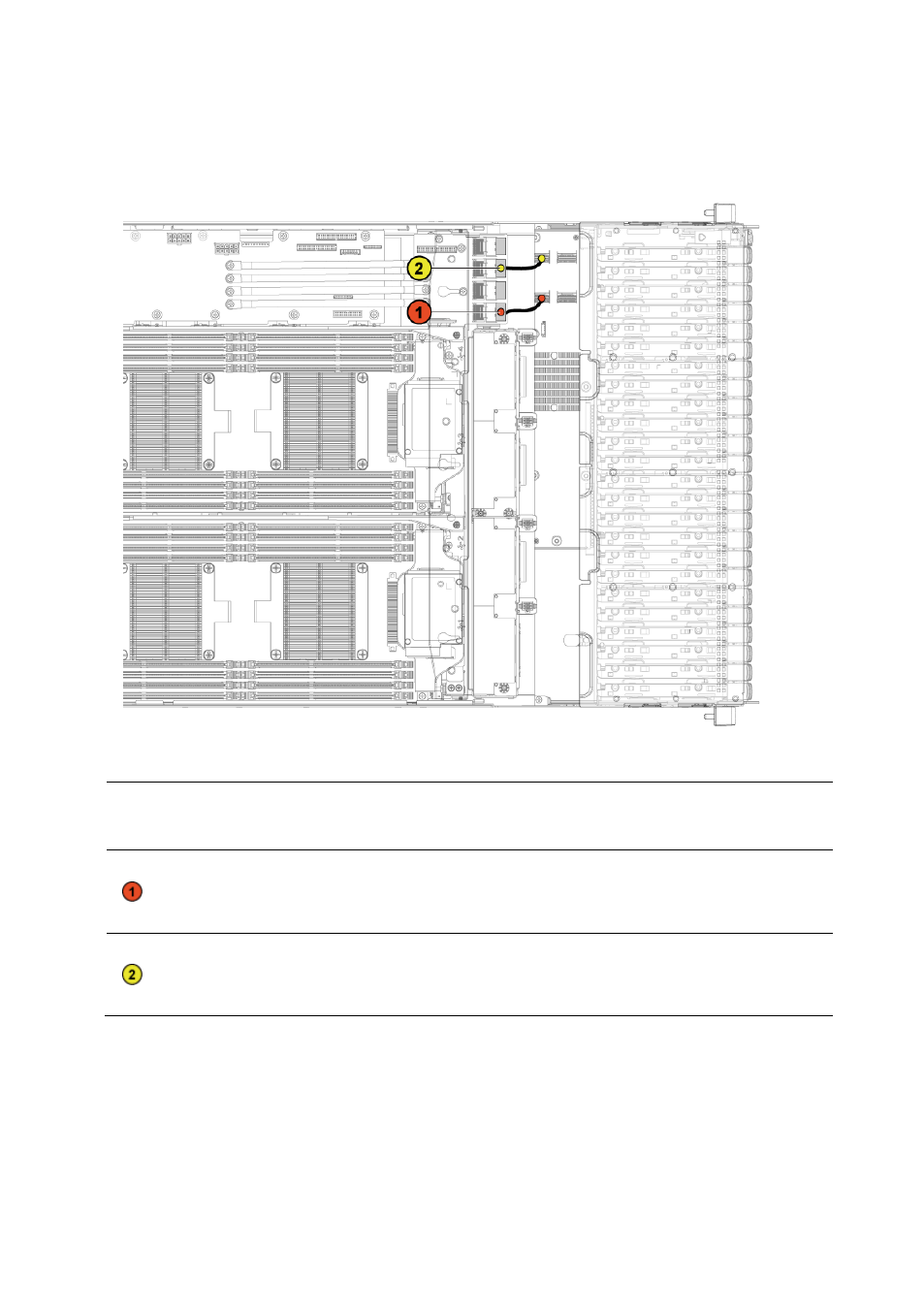

Figure 3-80. Cable Routing−Bottom Middle Plane to 2.5” Hard Drive for Expander
Configuration
Item
Cable
From
(Bottom Middle Plane)
To
(Expander Card)
Hard-drive
backplane
cable
mini-SAS connector for
system board 1 (J1)
mini-SAS connector
( 4~7) for system
board 1
Hard-drive
backplane
cable
mini-SAS connector for
system board 3 (J3)
mini-SAS connector
(12~15) for system
board 3
