Dell PowerEdge C6220 User Manual
Page 236
236
|
Installing System Components
4 Directly lift the cooling-fan cage out of the chassis. See Figure 3-59.

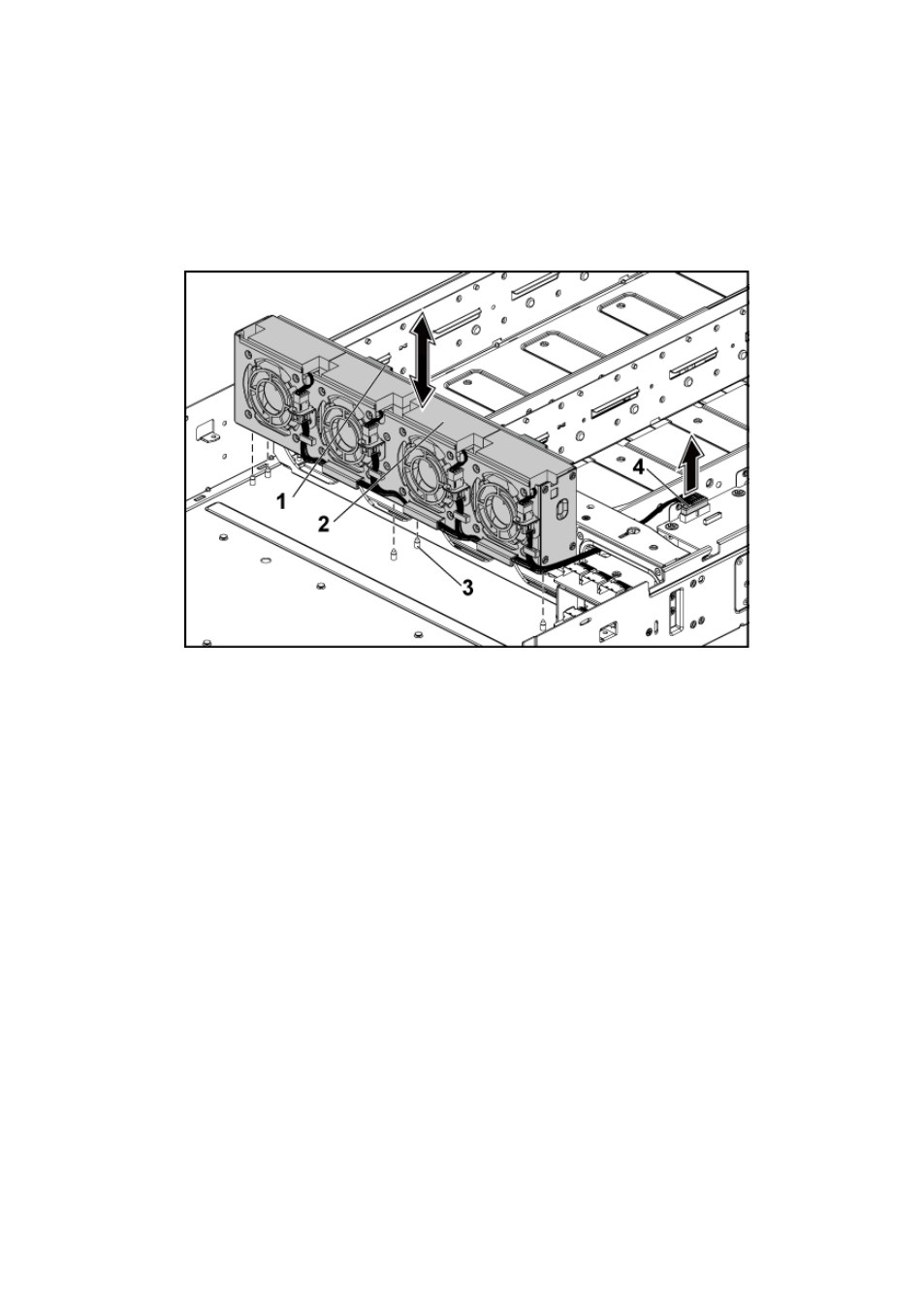

Figure 3-59. Removing and Installing a Cooling Fan Cage
1
locking clips (2)
2
cooling-fan cage
3
locating pin (6)
4
power connector
