310 | Jumpers and Connector
19 DIMM slots for processor 2 20 processor 1
21 DIMM slots for processor 1 22 BIOS recovery jumper
23 PWRD_EN jumper 24 ME firmware recovery jumper
25 MEDBG1 jumper 26 LAN LED connector
27 PCI-E Gen2 x16 slot 1 28 SGPIO connector 1
29 PCI-E Gen2 x16 slot 2 30 power button pass jumper
31 power button/power & system LED 32 VGA port
33 serial port 34 BMC console connector
35 management port 36 LAN management port
37 LAN connector 2 38 LAN connector 1
39 ID LED 40 dual USB port
NOTE: The PCI-E Gen2 x16 slot 1 and slot 2 are supported up to Gen2 5.0 Gigabits
bandwidth. If user inserts Gen3 .0 devices into the 2 slots that will only train at
Gen 2.0 speed, not Gen 3.0.
Backplane Connectors
3.5" Hard-Drive Direct Backplane

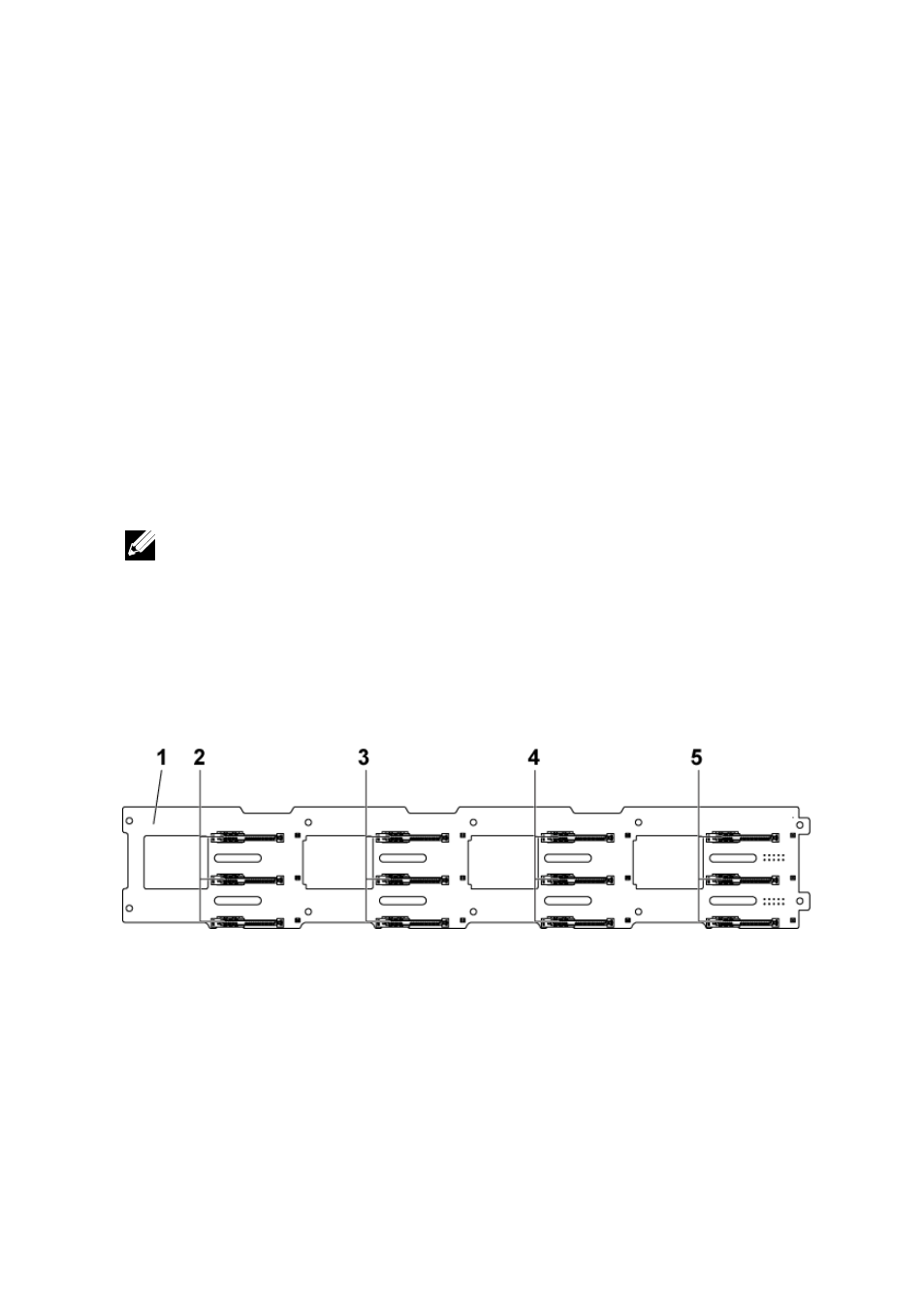

Figure 5-2. Front View of the Backplane
1 3.5” backplane 2 hard drive connectors 1, 2 and 3 for
system board 1 (from top to
bottom)
3 hard drive connectors 1, 2 and 3 for
system board 2 (from top to bottom) 4 hard drive connectors 1, 2 and 3 for
system board 3 (from top to
bottom)
5 hard drive connectors 1, 2 and 3 for
system board 4 (from top to bottom)
